      RB744 Rat Anti-Mouse CD45
      RB744 Rat Anti-Mouse CD45
      RB744 Rat Anti-Mouse CD45

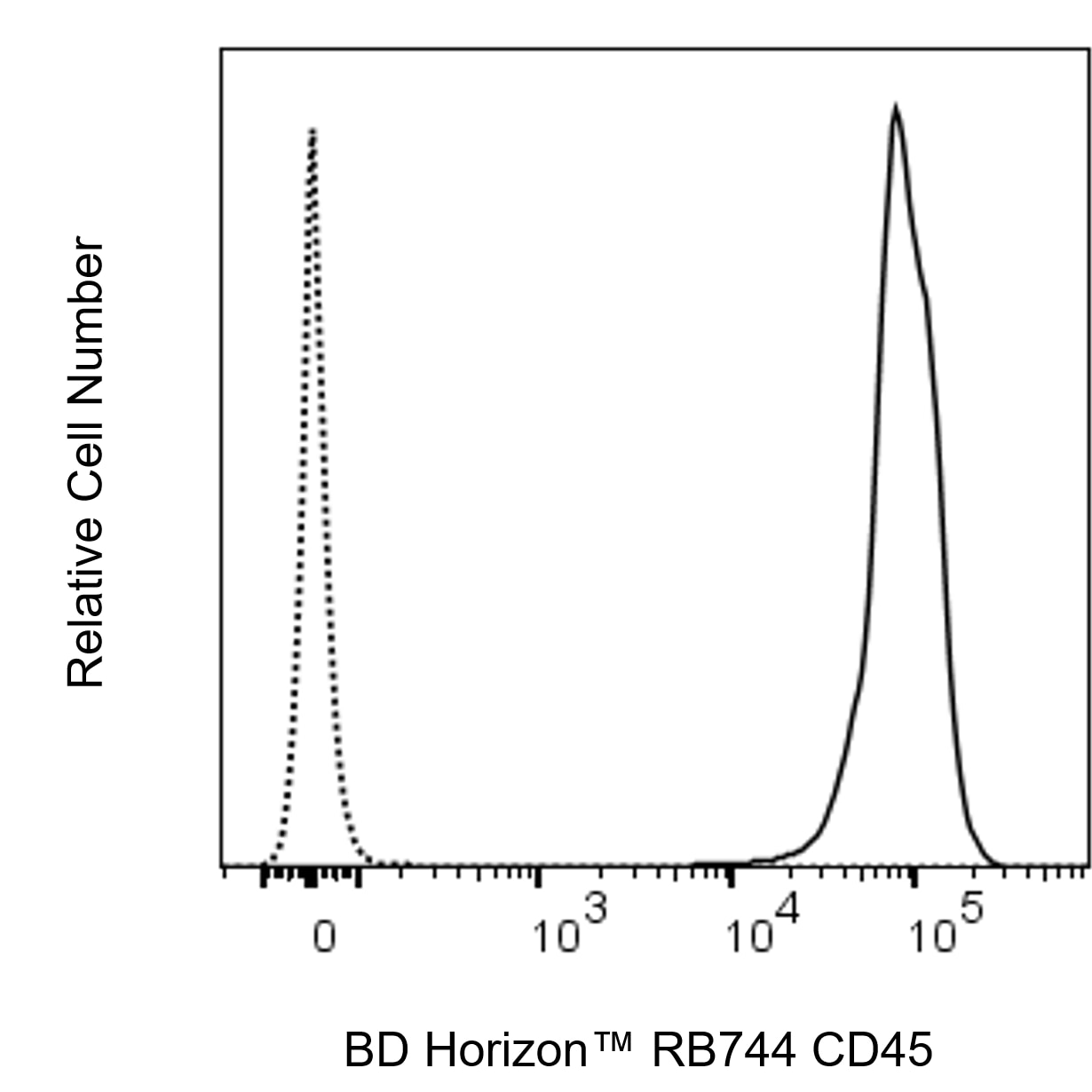

      Flow cytometric analysis of CD45 expression on viable Mouse splenic lymphocytes.  C57BL/6 Mouse splenic leukocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) [Cat. No. 553141/553142]. The cells were then stained with either BD Horizon™ RB744 Rat IgG2b, κ Isotype Control (Cat. No. 570521; dashed line histogram) or BD Horizon™ RB744 Rat Anti-Mouse CD45 antibody (Cat. No. 570510/570511; solid line histogram) at 0.125 µg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. The fluorescence histogram showing CD45 expression (or Ig Isotype control staining) was derived from gated events with the forward and side light-scatter characteristics of viable (DAPI-negative) lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony™ A5 SE Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.

      詳細を表示
      570511
      ¥30,800
      EA (1 Each)
      Add Product To Quote見積に追加
      見積リストに保存バルク試薬見積の依頼
      製品詳細
      Down Arrow


      BD Horizon™
      Ptprc; LCA; Leukocyte common antigen; T200; Ly-5; Lyt-4
      Mouse (QC Testing)
      Rat LOU, also known as Louvain, LOU/C, LOU/M IgG2b, κ
      Mouse Thymus / Spleen
      Flow cytometry (Routinely Tested)
      0.2 mg/ml
      19264
      AB_3685803
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation and Storage

      The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unreacted dye was removed. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.
      詳細を表示 blue down arrow 表示項目を減らす blue up arrow

      推奨アッセイ手順

      BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

      詳細を表示 blue down arrow 表示項目を減らす blue up arrow

      Product Notices

      1. When using high concentrations of antibody, background binding of this dye to erythroid fragments produced by ammonium chloride-based lysis, such as with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899), has been observed when the antibody conjugate was present during the lysis procedure. This may cause nonspecific staining of target cells, such as leukocytes, which have bound the resulting erythroid fragments. This background can be mitigated by any of the following: titrating the antibody conjugate to a lower concentration, fixing samples with formaldehyde, or removing erythrocytes before staining (eg, gradient centrifugation or pre-lysis with wash). This background has not been observed when cells were lysed with BD FACS™ Lysing Solution (Cat. No. 349202) after staining.
      2. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      3. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      4. An isotype control should be used at the same concentration as the antibody of interest.
      5. Please observe the following precautions: We recommend that special precautions be taken (such as wrapping vials, tubes, or racks in aluminum foil) to protect exposure of conjugated reagents, including cells stained with those reagents, to any room illumination. Absorption of visible light can significantly affect the emission spectra and quantum yield of tandem fluorochrome conjugates.
      6. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      7. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      8. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
      9. For U.S. patents that may apply, see bd.com/patents.
      詳細を表示 blue down arrow 表示項目を減らす blue up arrow

      データシート

      DownloadTechnical Data Sheet (TDS)
      570511 Rev. 1
      抗体の詳細
      Down Arrow
      30-F11

      The 30-F11 clone has been reported to react with all isoforms and both alloantigens of CD45, which is found on hematopoietic stem cells and all cells of hematopoietic origin, except erythrocytes. CD45 is a transmembrane glycoprotein which is expressed at high levels on the cell surface, and its presence distinguishes leukocytes from non-hematopoietic cells. CD45 is a member of the Protein Tyrosine Phosphatase (PTP) family, where the intracellular carboxy-terminal region contains two PTP catalytic domains, and the extracellular region is highly variable due to alternative splicing of exons 4, 5, and 6 (designated as A, B, and C, respectively).  CD45 isoforms play complex roles in T-cell and B-cell antigen receptor signal transduction and the CD45 isoforms detected in the mouse are cell type-, maturation-, and activation state-specific.

      570511 Rev. 1
      フォーマットの詳細
      Down Arrow
      RB744
      The BD Horizon RealBlue™ 744 (RB744) Dye is part of the BD® family of blue dyes. It is a tandem fluorochrome with an excitation maximum (Ex Max) at 498-nm and an emission maximum (Em Max) at 746-nm as measured using an antibody-dye conjugate. Driven by BD® innovation, RB744 can be used on both spectral and conventional cytometers and is designed to be excited by the Blue laser (488-nm) with minimal excitation by the 561-nm Yellow-Green laser. For conventional instruments equipped with a Blue laser (488-nm), we recommend using an optical filter centered near 750-nm (e.g., a 750/60-nm bandpass filter).
      altImg
      RB744
      Blue 488 nm
      498 nm
      746 nm
      570511 Rev.1
      引用＆参考文献
      Down Arrow

      Development References (5)

      1. Johnson P, Maiti A, Ng DHW. CD45: A family of leukocyte-specific cell surface glycoproteins. In: Herzenberg LA, Weir DM, Herzenberg LA, Blackwell C , ed. Weir's Handbook of Experimental Immunology, Vol 2. Cambridge: Blackwell Science; 1997:62.1-62.16.
      2. Lagasse E, Connors H, Al-Dhalimy M, et al. Purified hematopoietic stem cells can differentiate into hepatocytes in vivo. Nat Med. 2000; 6(11):1212-1213. (Biology). View Reference
      3. Ledbetter JA, Herzenberg LA. Xenogeneic monoclonal antibodies to mouse lymphoid differentiation antigens. Immunol Rev. 1979; 47:63-90. (Immunogen: Cytotoxicity, Immunoprecipitation). View Reference
      4. Simon DI, Dhen Z, Seifert P, Edelman ER, Ballantyne CM, Rogers C. Decreased neointimal formation in Mac-1(-/-) mice reveals a role for inflammation in vascular repair after angioplasty. J Clin Pathol. 2000; 105(3):293-300. (Clone-specific: Immunohistochemistry). View Reference
      5. Thomas ML. The leukocyte common antigen family. Annu Rev Immunol. 1989; 7:339-369. (Clone-specific: Immunohistochemistry). View Reference
      すべて表示する (5) 表示項目を減らす
      570511 Rev. 1

      Please refer to Support Documents for Quality Certificates



      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described



      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
