Alexa Fluor™ 488 Mouse Anti-Human CD273 (PD-L2)

BD Pharmingen™ Alexa Fluor™ 488 Mouse Anti-Human CD273 (PD-L2)

Name: Alexa Fluor™ 488 Mouse Anti-Human CD273 (PD-L2)
Brand: Alexa Fluor™ 488 Mouse Anti-Human CD273 (PD-L2)
SKU: 570055

クローン IPI683.rMab (RUO)

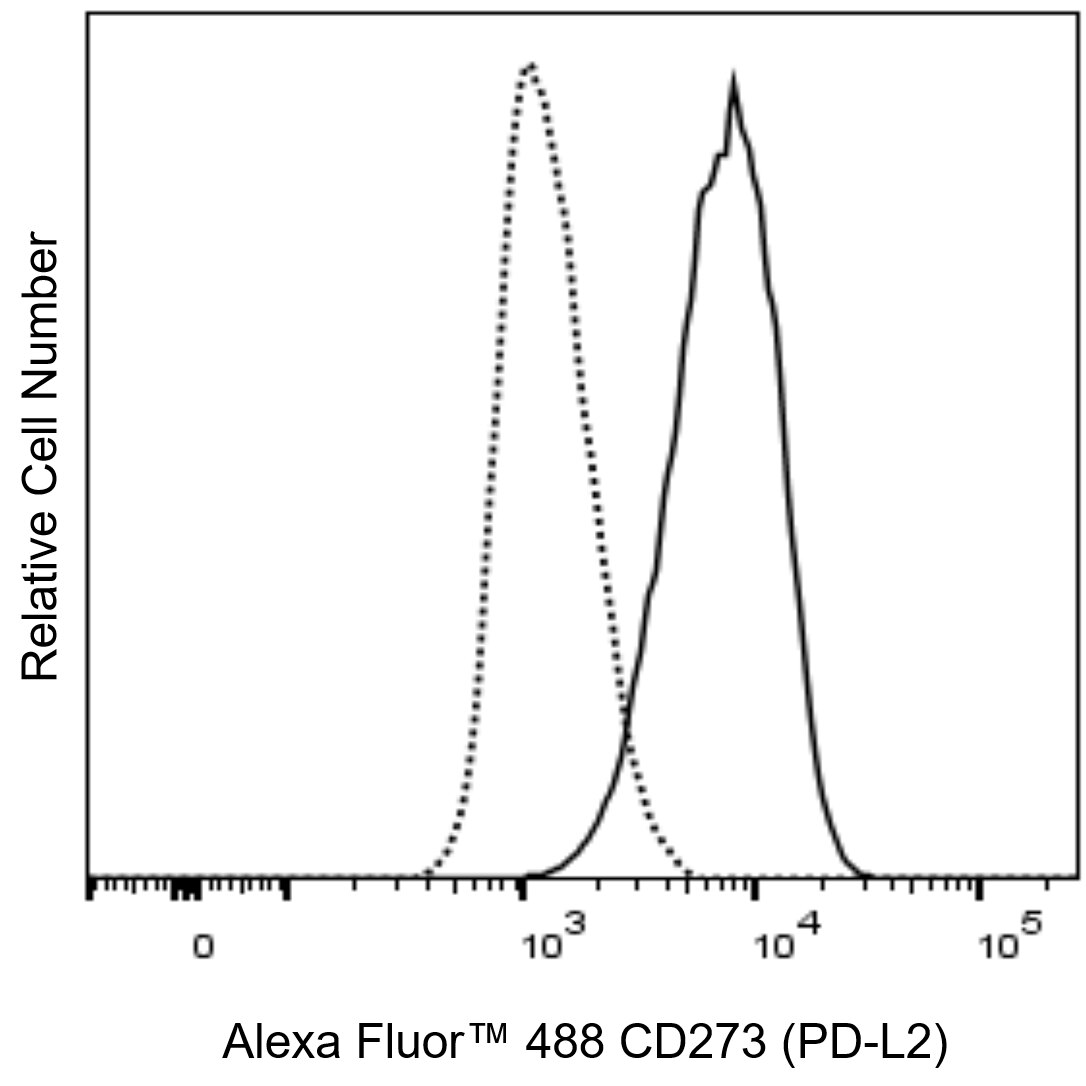

Flow cytometric analysis of CD273 (PD-L2) expression on viable Human monocyte-derived mature dendritic cells. Human monocyte-derived mature dendritic cells were stained with either Alexa Fluor™ 488 Mouse IgG1, κ Isotype Control (Cat. No. 565572; dashed line histogram) or Alexa Fluor™ 488 Mouse Anti-Human CD273 (PD-L2) antibody (Cat. No. 570055/570136; solid line histogram). BD Via-Probe™ Cell Viability 7-AAD Solution (Cat. No. 555815) was added to cells right before analysis. The fluorescence histogram showing CD273 (PD-L2) expression (or Ig Isotype control staining) was derived from gated events with the forward and side light-scatter characteristics of viable (7AAD-negative) cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ Cell Analyzer System and FlowJo™ software.

詳細を表示

Spectrum Viewer

Protocol Library

Scientific Resources

カタログ番号:555466

希望小売価格:¥34,870

単位:EA (1 Each)

容量:

数量:

見積に追加

見積リストに保存バルク試薬見積の依頼

製品詳細

Brand: BD Pharmingen™

Alternative Name: CD273; PD-L2; PDL2; PDCD1LG2; B7-DC; B7DC

Reactivity: Human (QC Testing)

Isotype: Mouse IgG1, λ1

Immunogen: Human PD-L2 cDNA

Application: Flow cytometry (Routinely Tested)

Vol. Per Test: 5 µl/test

Entrez Gene ID: 80380

RRID: AB_3685488

Storage Buffer: Aqueous buffered solution containing BSA and ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation and Storage

The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unreacted dye was removed. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.

推奨アッセイ手順

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

Product Notices

Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Alexa Fluor® 488 fluorochrome emission is collected at the same instrument settings as for fluorescein isothiocyanate (FITC).
Source of all serum proteins is from USDA inspected abattoirs located in the United States.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
An isotype control should be used at the same concentration as the antibody of interest.
This product is provided under an intellectual property license between Life Technologies Corporation and BD Businesses. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The buyer cannot sell or otherwise transfer (a) this product (b) its components or (c) materials made using this product or its components to a third party or otherwise use this product or its components or materials made using this product or its components for Commercial Purposes. Commercial Purposes means any activity by a party for consideration and may include, but is not limited to: (1) use of the product or its components in manufacturing; (2) use of the product or its components to provide a service, information, or data; (3) use of the product or its components for therapeutic, diagnostic or prophylactic purposes; or (4) resale of the product or its components, whether or not such product or its components are resold for use in research. For information on purchasing a license to this product for any other use, contact Life Technologies Corporation, Cell Analysis Business Unit Business Development, 29851 Willow Creek Road, Eugene, OR 97402, USA, Tel: (541) 465-8300. Fax: (541) 335-0504.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
Clones without a listed workshop have not been investigated in an HLDA workshop to receive a CD nomenclature. We use “CD” provisionally when our internal testing indicates that this clone binds to the same CD antigen as workshopped clones.
Alexa Fluor™ is a trademark of Life Technologies Corporation.
For U.S. patents that may apply, see bd.com/patents.

詳細を表示

データシート

Technical Data Sheet (TDS)

関連製品

Stain Buffer (FBS) RUO

サイズ 500 mL カタログ番号 554656

Stain Buffer (BSA) RUO

サイズ 500 mL カタログ番号 554657

Alexa Fluor® 488 Mouse IgG1 κ Isotype Control RUO

サイズ 50 µg カタログ番号 565572

Cell Viability Solution RUO

サイズ 500 Tests カタログ番号 555815

570055 Rev. 1

抗体の詳細

IPI683.rMab

The IPI683.rMAb recombinant monoclonal antibody specifically recognizes Programmed cell death 1 ligand 2 (PD-L2) which is also known as CD273 and Butyrophilin B7-DC (B7-DC). This regulatory molecule is a 42-kDa type I membrane glycoprotein encoded by PDCD1LG2 which belongs to the B7 family of the Ig superfamily. CD273 (PD-L2) is comprised of an extracellular region with an N-terminal IgV-like domain followed by an IgC2-type domain, a transmembrane sequence, and a cytoplasmic tail. Although not detected on resting leucocytes, its expression is upregulated upon activation of macrophages and dendritic cells (DC) by a variety of stimulatory factors including IL-4, IL-13, or GM-CSF. CD273 (PD-L2) has been recognized as an inhibitory regulator of human T-cell activation and serves as a ligand for the coinhibitory receptor, CD279 (PD-1), a receptor that likewise binds to the CD274 (PD-L1) ligand. CD273 (PD-L2) also binds to Repulsive guidance molecule b (RGMb) that is expressed by T cells, macrophages, neutrophils, and DC. RGMb may associate with other receptors that transduce costimulatory or coinhibitory signals.

570055 Rev. 1

フォーマットの詳細

Alexa Fluor™ 488

Alexa Fluor™ 488 Dye is part of the BD blue family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 494-nm and an emission maximum (Em Max) at 517-nm. Alexa Fluor™ 488 is designed to be excited by the Blue laser (488 nm) and detected using an optical filter centered near 520-nm (e.g., a 530/30-nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

フォーマット: Alexa Fluor™ 488

励起源: Blue 488 nm

最大励起波長: 494 nm

最大蛍光波長: 517 nm

570055 Rev.1

引用＆参考文献

Development References (3)

Brown JA, Dorfman DM, Ma FR, et al. Blockade of programmed death-1 ligand on dendritic cells enhances T cell activation and cytokine production. J Immunol. 2003; 170:1257-1266. (Biology). View Reference
Pfistershammer K, Klauser C, Pickl WF, et al. No evidence for dualism in function and receptors: PD-L2/B7-DC is an inhibitory regulator of human T cell activation. Eur J Immunol. 2006; 36(5):1104-1113. (Biology). View Reference
Rodig N, Ryan T, Allen JA, et al. Endothelial expression of PD-L1 and PD-L2 down-regulates CD8+ T cell activation and cytolysis.. Eur J Immunol. 2003; 33(11):3117-26. (Biology). View Reference

570055 Rev. 1

Please refer to Support Documents for Quality Certificates

Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described

Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
