PE Mouse Anti-Human Granzyme A

BD Pharmingen™ PE Mouse Anti-Human Granzyme A

Name: PE Mouse Anti-Human Granzyme A
Brand: PE Mouse Anti-Human Granzyme A
SKU: 568389

クローン CB9 (RUO)

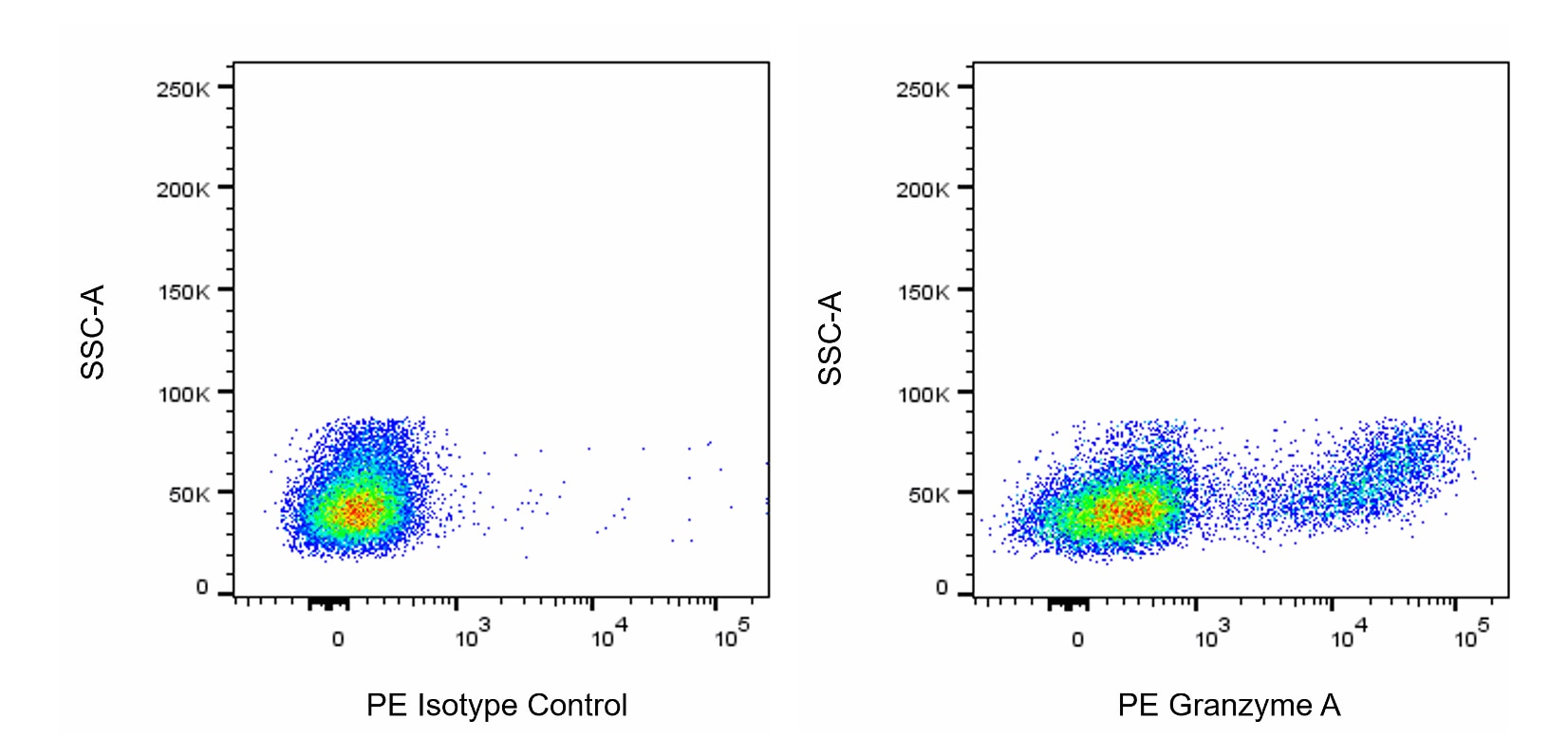

Multiparameter flow cytometric analysis of Granzyme A expression in Human peripheral blood lymphocytes. Human peripheral blood mononuclear cells (PBMC) were fixed with BD Cytofix™ Fixation Buffer (Cat. No. 554655). The cells were then washed and stained in BD Perm/Wash™ Buffer (Cat. No. 554723) and with either PE Mouse IgG1, κ Isotype Control (Cat. No. 554680; Left Plot) or PE Mouse Anti-Human Granzyme A antibody (Cat. No. 568388/568389; Right Plot). The bivariate pseudocolor density plot showing the correlated expression of Granzyme A (or Ig Isotype control staining) versus side light-scatter (SSC-A) signals was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software.

詳細を表示

Spectrum Viewer

Protocol Library

Scientific Resources

カタログ番号:568389

希望小売価格:¥31,450

単位:EA (1 Each)

容量:

数量:

見積に追加

見積リストに保存バルク試薬見積の依頼

製品詳細

Brand: BD Pharmingen™

Alternative Name: CTL tryptase; CTLA3; GZMA; GrA; HFSP; Hanukkah factor

Reactivity: Human (QC Testing)

Isotype: Mouse BALB/c IgG1, κ

Immunogen: Human Cytotoxic T Cell Granule Proteins

Application: Intracellular staining (flow cytometry) (Routinely Tested)

Vol. Per Test: 5 µl

Entrez Gene ID: 3001

RRID: AB_3684236

Storage Buffer: Aqueous buffered solution containing BSA and ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation and Storage

The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.

推奨アッセイ手順

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cell and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

Product Notices

Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
An isotype control should be used at the same concentration as the antibody of interest.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Source of all serum proteins is from USDA inspected abattoirs located in the United States.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
For U.S. patents that may apply, see bd.com/patents.

データシート

Technical Data Sheet (TDS)

関連製品

Stain Buffer (FBS) RUO

サイズ 500 mL カタログ番号 554656

Stain Buffer (BSA) RUO

サイズ 500 mL カタログ番号 554657

Fixation Buffer RUO

サイズ 100 mL カタログ番号 554655

Perm/Wash Buffer RUO

サイズ 100 mL カタログ番号 554723

PE Mouse IgG1, κ Isotype Control RUO

サイズ 0.1 mg カタログ番号 554680

568389 Rev. 1

抗体の詳細

CB9

The CB9 monoclonal antibody specifically recognizes Granzyme A (GrA, GzmA or Gzm A) which is also known as CTL tryptase,

Cytotoxic T-lymphocyte-associated serine esterase-3 (CTLA3), Cytotoxic T-lymphocyte proteinase 1, Fragmentin-1, or Hanukah factor serine protease (HFSP). Granzyme A belongs to a family of effector proteases that include five different granzymes that play key roles in innate and adaptive immune responses to pathogens and transformed cells: Granzymes A, B, H, K and M. Granzyme A is a ~28 kDa neutral serine protease that is encoded by GZMA. It is expressed in the cytotoxic granules of natural killer (NK) cells, NKT cells, cytotoxic αβ T cells and γδ T cells. Granzyme A participates in innate and adaptive immune responses. After gaining access into target cells, Granzyme A cleaves various peptide substrates after lysine or arginine residues and can induce caspase‑independent cell death reflected in single-stranded DNA damage as well as rapid loss of cell membrane integrity and mitochondrial transmembrane potential.

568389 Rev. 1

フォーマットの詳細

R-Phycoerythrin (PE), is part of the BD family of Phycobiliprotein dyes. This fluorochrome is a multimeric fluorescent phycobiliprotein with excitation maximum (Ex Max) of 496 nm and 566 nm and an emission maximum (Em Max) at 576 nm. PE is designed to be excited by the Blue (488 nm), Green (532 nm) and Yellow-Green (561 nm) lasers and detected using an optical filter centered near 575 nm (e.g., a 575/26-nm bandpass filter). As PE is excited by multiple lasers, this can result in cross-laser excitation and fluorescence spillover on instruments with various combinations of Blue, Green, and Yellow-Green lasers. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

フォーマット: PE

励起源: Yellow-Green 561 nm

最大励起波長: 496 nm, 566 nm

最大蛍光波長: 576 nm

568389 Rev.1

引用＆参考文献

View Development References

Development References (8)

Andrade F, Roy S, Nicholson D, Thornberry N, Rosen A, Casciola-Rosen L. Granzyme B directly and efficiently cleaves several downstream caspase substrates: implications for CTL-induced apoptosis. Immunity. 1998; 8(4):451-460. (Biology). View Reference
Barry M, Heibein JA, Pinkoski MJ, et al. Granzyme B short-circuits the need for caspase 8 activity during granule-mediated cytotoxic T-lymphocyte killing by directly cleaving Bid. Mol Cell Biol. 2000; 20(11):3781-3794. (Biology). View Reference
Beresford PJ, Kam CM, Powers JC, Lieberman J. Recombinant human granzyme A binds to two putative HLA-associated proteins and cleaves one of them. Proc Natl Acad Sci U S A. 1997; 94(17):9285-9290. (Immunogen: Immunoprecipitation). View Reference
Beresford PJ, Xia Z, Greenberg AH, Lieberman J. Granzyme A loading induces rapid cytolysis and a novel form of DNA damage independently of caspase activation. Immunity. 1999; 10(5):585-594. (Clone-specific: Immunoprecipitation). View Reference
Pinkoski MJ, Waterhouse NJ, Heibein JA, et al. Granzyme B-mediated apoptosis proceeds predominantly through a Bcl-2-inhibitable mitochondrial pathway. J Biol Chem. 2001; 276(15):12060-12067. (Biology). View Reference
Sharif-Askari E, Alam A, Rheaume E, et al. Direct cleavage of the human DNA fragmentation factor-45 by granzyme B induces caspase-activated DNase release and DNA fragmentation. EMBO J. 2001; 20(12):3101-3113. (Biology). View Reference
Shresta S, Graubert TA, Thomas DA, Raptis SZ, Ley TJ. Granzyme A initiates an alternative pathway for granule-mediated apoptosis. Immunity. 1999; 10(5):595-605. (Biology). View Reference
Trimble LA, Lieberman J. Circulating CD8 T lymphocytes in human immunodeficiency virus-infected individuals have impaired function and downmodulate CD3 zeta, the signaling chain of the T-cell receptor complex. Blood. 1998; 91(2):585-594. (Clone-specific: Intracellular Staining/Flow Cytometry). View Reference

すべて表示する (8)

568389 Rev. 1

Please refer to Support Documents for Quality Certificates

Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described

Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
