PE Rat Anti-Mouse CD192 (CCR2)

BD Pharmingen™ PE Rat Anti-Mouse CD192 (CCR2)

Name: PE Rat Anti-Mouse CD192 (CCR2)
Brand: BD Pharmingen™
SKU: 568093

クローン Y15-488.rMAb

(RUO)

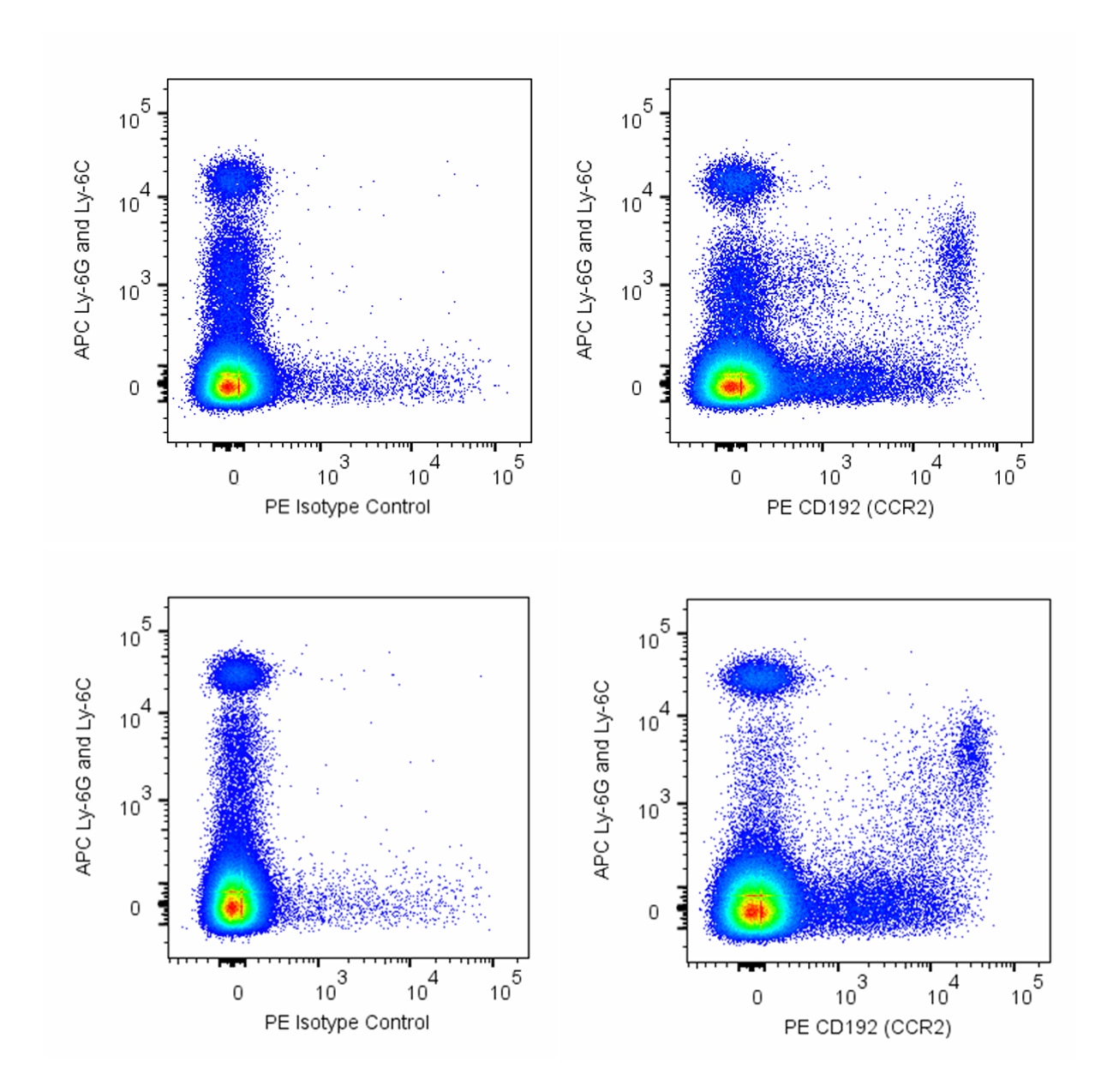

Multicolor flow cytometric analysis of CD192 (CCR2) expression on mouse splenocytes. C57BL/6 (Top Plots) and BALB/c (Bottom Plots) mouse spleen cells were treated with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899) to lyse erythrocytes, washed, and preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) (Cat. No. 553141/553142). The cells were then stained with APC Rat Anti-Mouse Ly-6G and Ly-6C antibody (Cat No. 553129/561083), and either PE Rat IgG1, k Isotype Control (Cat. No. 553925; Left Panels) or PE Rat Anti-Mouse CD192 (CCR2) antibody (Cat. No. 568093; Right Plots) at 0.5 μg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. Bivariate pseudocolor density plots showing the correlated expression of CD192 (CCR2) (or Ig Isotype control staining) versus Ly-6G and Ly-6C were derived from gated events with the forward and side light-scattering characteristics of viable (DAPI-negative) leucocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.

Spectrum Viewer

Protocol Library

Scientific Resources

製品詳細

Brand: BD Pharmingen™

Alternative Name: CCR2; Cmkbr2; MCP-1 receptor

Reactivity: Mouse (QC Testing)

Isotype: Rat F344, also known as Fischer, CDF IgG1, κ

Immunogen: Mouse CD192 Transfected Cell Line

Application: Flow cytometry (Routinely Tested)

Concentration: 0.2 mg/ml

Storage Buffer: Aqueous buffered solution containing ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation and Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography.

推奨アッセイ手順

BD® CompBeads can be used as surrogates to assess fluorescence spillover (Compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

Product Notices

Since applications vary, each investigator should titrate the reagent to obtain optimal results.
An isotype control should be used at the same concentration as the antibody of interest.
Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).

568093 Rev. 1

抗体の詳細

Y15-488.rMAb

Y15-488.rMAb is a recombinant monoclonal antibody that specifically recognizes CD192 which is also known as C-C chemokine receptor type 2 (CCR2 or CC-CKR-2), Cmkbr2, or MCP-1 receptor (MCP-1-R). CD192 (CCR2) is a seven-transmembrane, G-protein-coupled, glycoprotein receptor that belongs to the beta chemokine receptor family. It is expressed on monocytes, macrophages, basophils and on some T cells and dendritic cells. Chemokines including CCL2 (Monocyte chemoattractant protein 1/MCP-1), CCL7 (MCP-3), or CCL12 (MCP-5) bind to and signal through CD192 (CCR2) to recruit monocytes and other leucocytes into inflammatory sites including tumors.

568093 Rev. 1

フォーマットの詳細

R-Phycoerythrin (PE), is part of the BD family of Phycobiliprotein dyes. This fluorochrome is a multimeric fluorescent phycobiliprotein with excitation maximum (Ex Max) of 496 nm and 566 nm and an emission maximum (Em Max) at 576 nm. PE is designed to be excited by the Blue (488 nm), Green (532 nm) and Yellow-Green (561 nm) lasers and detected using an optical filter centered near 575 nm (e.g., a 575/26-nm bandpass filter). As PE is excited by multiple lasers, this can result in cross-laser excitation and fluorescence spillover on instruments with various combinations of Blue, Green, and Yellow-Green lasers. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

フォーマット: PE

励起源: Yellow-Green 488 nm, 532 nm, 561 nm

最大励起波長: 496 nm, 566 nm

最大蛍光波長: 576 nm

568093 Rev.1

引用＆参考文献

View product citations for antibody "568093" on CiteAb

Development References (9)

Auffray C, Fogg D, Garfa M, et al. Monitoring of blood vessels and tissues by a population of monocytes with patrolling behavior.. Science. 2007; 317(5838):666-70. (Biology). View Reference
Bachelerie F, Ben-Baruch A, Burkhardt AM, et al. International Union of Basic and Clinical Pharmacology. [corrected]. LXXXIX. Update on the extended family of chemokine receptors and introducing a new nomenclature for atypical chemokine receptors.. Pharmacol Rev. 2014; 66(1):1-79. (Biology). View Reference
Engel DR, Maurer J, Tittel AP, et al. CCR2 mediates homeostatic and inflammatory release of Gr1(high) monocytes from the bone marrow, but is dispensable for bladder infiltration in bacterial urinary tract infection.. J Immunol. 2008; 181(8):5579-86. (Biology). View Reference
Fujimura N, Xu B, Dalman J, Deng H, Aoyama K, Dalman RL. CCR2 inhibition sequesters multiple subsets of leukocytes in the bone marrow.. Sci Rep. 2015; 5:11664. (Biology). View Reference
Geissmann F, Jung S, Littman DR. Blood monocytes consist of two principal subsets with distinct migratory properties.. Immunity. 2003; 19(1):71-82. (Biology). View Reference
Griffith JW, Sokol CL, Luster AD. Chemokines and chemokine receptors: positioning cells for host defense and immunity.. Annu Rev Immunol. 2014; 32:659-702. (Biology). View Reference
Kurihara T, Bravo R. Cloning and functional expression of mCCR2, a murine receptor for the C-C chemokines JE and FIC.. J Biol Chem. 1996; 271(20):11603-7. (Biology). View Reference
Mack M, Cihak J, Simonis C, et al. Expression and characterization of the chemokine receptors CCR2 and CCR5 in mice.. J Immunol. 2001; 166(7):4697-704. (Biology). View Reference
Sunderkötter C, Nikolic T, Dillon MJ, et al. Subpopulations of mouse blood monocytes differ in maturation stage and inflammatory response.. J Immunol. 2004; 172(7):4410-7. (Biology). View Reference

すべて表示する (9)

568093 Rev. 1
