Alexa Fluor® 647 Mouse Anti-Human CD77
Alexa Fluor® 647 Mouse Anti-Human CD77

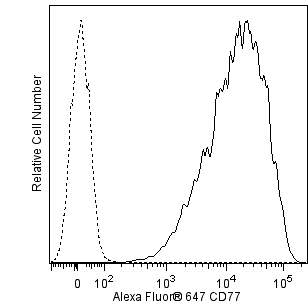

Flow cytometric analysis of CD77 expression on human Ramos cells. Cells from the Ramos Burkitt's lymphoma cell line (ATCC CRL-1596) were stained with either Alexa Fluor® 647 Mouse Anti-Human CD77 antibody (Cat. No. 563632; solid line histogram) or Alexa Fluor® 647 Mouse IgM, κ Isotype Control (Cat. No. 560806; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of CD77 expression on human Ramos cells. Cells from the Ramos Burkitt's lymphoma cell line (ATCC CRL-1596) were stained with either Alexa Fluor® 647 Mouse Anti-Human CD77 antibody (Cat. No. 563632; solid line histogram) or Alexa Fluor® 647 Mouse IgM, κ Isotype Control (Cat. No. 560806; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
製品詳細
Down Arrow Up Arrow


BD Pharmingen™
BLA; Gb3; Pk blood group antigen; CTH
Human (QC Testing)
Mouse BALB/c IgM, κ
Initially Adherent Human Peripheral Blood Cells
Flow cytometry (Routinely Tested)
5 µl
VI CD77.5
AB_2738334
Aqueous buffered solution containing BSA, protein stabilizer, and ≤0.09% sodium azide.
RUO


Preparation and Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to Alexa Fluor® 647 under optimum conditions, and unreacted Alexa Fluor® 647 was removed.

Product Notices

  1. This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
  2. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
  3. An isotype control should be used at the same concentration as the antibody of interest.
  4. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  5. The Alexa Fluor®, Pacific Blue™, and Cascade Blue® dye antibody conjugates in this product are sold under license from Molecular Probes, Inc. for research use only, excluding use in combination with microarrays, or as analyte specific reagents. The Alexa Fluor® dyes (except for Alexa Fluor® 430), Pacific Blue™ dye, and Cascade Blue® dye are covered by pending and issued patents.
  6. Alexa Fluor® is a registered trademark of Molecular Probes, Inc., Eugene, OR.
  7. Alexa Fluor® 647 fluorochrome emission is collected at the same instrument settings as for allophycocyanin (APC).
  8. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  9. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
563632 Rev. 1
抗体の詳細
Down Arrow Up Arrow
5B5

The 5B5 monoclonal antibody specifically binds to human CD77, a small neutral glycosphingolipid also referred to as globotriaosylceramide (Gb3), Burkitt 's lymphoma associated antigen (BLA), ceramide trihexoside (CTH), and Pk blood group antigen. CD77 is expressed on a subset of germinal center B-lymphocytes including centroblasts that are found with greater frequency in tonsil and mucosal lymphoid tissues and less frequently in peripheral blood, bone marrow and spleen. It has been described as a receptor for Shiga Toxin, produced by Shigella dysenteriae, and Verotoxin 1 (VT1), produced by some strains of E. coli. CD19 has been reported as a ligand for CD77. This interaction may function in adhesion and signal transduction at a specific stage of B cell differentiation. Studies have shown that cross-linking CD77 induces apoptosis in some B cell lines.

563632 Rev. 1
フォーマットの詳細
Down Arrow Up Arrow
Alexa Fluor™ 647
Alexa Fluor™ 647 Dye is part of the BD red family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 653-nm and an emission maximum (Em Max) at 669-nm. Alexa Fluor 647 is designed to be excited by the Red laser (627-640 nm) and detected using an optical filter centered near 520-nm (e.g., a 660/20 nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
Alexa Fluor™ 647
Red 627-640 nm
653 nm
669 nm
563632 Rev.1
引用&参考文献
Down Arrow Up Arrow

Development References (5)

  1. Fyfe G, Cebra-Thomas JA, Mustain E, Davie JM, Alley CD, Nahm MH. Subpopulations of B lymphocytes in germinal centers. J Immunol. 1987; 139(7):2187-2194. (Immunogen: Flow cytometry, Immunofluorescence, Radioimmunoassay). View Reference
  2. Lagresle C, Bella C, Daniel PT, Krammer PH, Defrance T. Regulation of germinal center B cell differentiation. Role of the human APO-1/Fas (CD95) molecule. J Immunol. 1995; 154(11):5746-5756. (Biology). View Reference
  3. Maloney MD, Lingwood CA. CD19 has a potential CD77 (globotriaosyl ceramide)-binding site with sequence similarity to verotoxin B-subunits: implications of molecular mimicry for B cell adhesion and enterohemorrhagic Escherichia coli pathogenesis. J Exp Med. 1994; 180(1):191-201. (Biology). View Reference
  4. Mangeney M, Rousselet G, Taga S, Tursz T, Wiels J. The fate of human CD77+ germinal center B lymphocytes after rescue from apoptosis. Mol Immunol. 1995; 32(5):333-339. (Biology). View Reference
  5. Nahm MH, Takes PA, Bowen MB, Macke KA. Subpopulations of B lymphocytes in germinal centers, II. A germinal center B cell subpopulation expresses sIgD and CD23. Immunol Lett. 1989; 21(3):201-208. (Clone-specific: Flow cytometry). View Reference
すべて表示する (5) 表示項目を減らす
563632 Rev. 1

Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
