BV605 Rat Anti-Mouse F4/80

This product is the replacement for 743281.

BD Horizon™ BV605 Rat Anti-Mouse F4/80

Name: BV605 Rat Anti-Mouse F4/80
Brand: BD Horizon™
SKU: 569237

Clone T45-2342

(RUO)

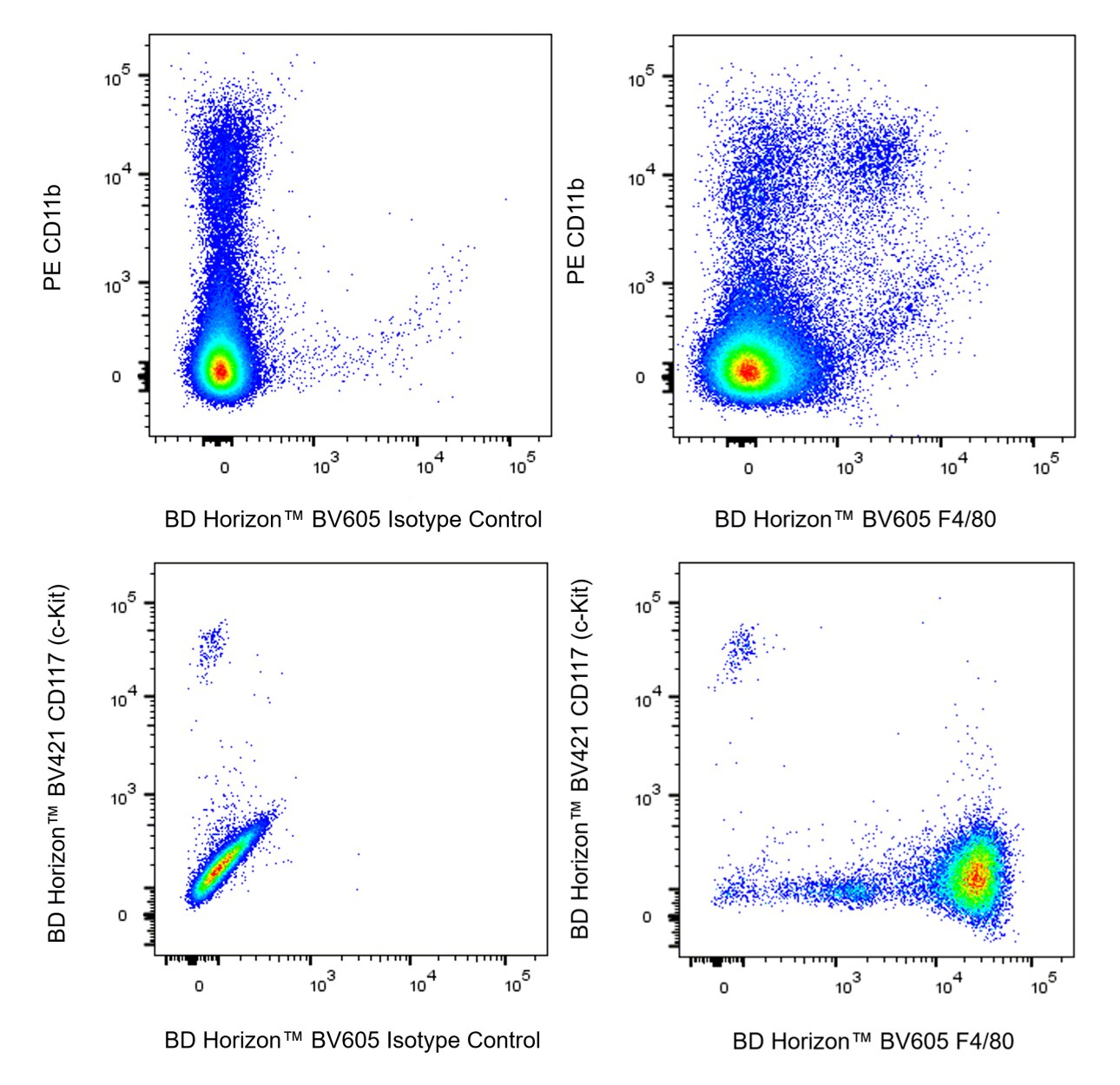

Multicolor flow cytometric analyses of F4/80 expression. The bivariate pseudocolor density plots showing the correlated expression of F4/80 (or Ig Isotype control staining) versus CD11b (Mouse Splenocytes; Top Plots) or CD117 (c-Kit) [Mouse Peritoneal Exudate Cells; Bottom Plots] were derived from gated events with the forward and side light-scatter characteristics of viable (DAPI-negative) monocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific. Top Plots - Mouse splenocytes. C57BL/6 Mouse splenic leucocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) [Cat. No. 553141/553142] and stained with PE Rat Anti- CD11b antibody (Cat. No. 553311/557397) and with either BD Horizon™ BV605 Rat IgG2a, κ Isotype Control (Cat. No. 563144; Left Plot) or BD Horizon™ BV605 Rat Anti-Mouse F4/80 antibody (Cat. No. 569237; Right Plot) at 1 µg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. Bottom Plots - Mouse peritoneal exudate cells (PEC). C57BL/6 Mouse PEC were similarly pretreated with Mouse BD Fc Block™, stained with BD Horizon™ BV421 Rat Anti-Mouse CD117 (c-Kit) antibody (Cat. No. 567818) and with either BD Horizon™ BV605 Rat IgG2a, κ Isotype Control (Left Plot) or BD Horizon™ BV605 Rat Anti-Mouse F4/80 antibody (Right Plot) at 1 µg/test followed by DAPI Solution and analyzed.

Spectrum Viewer

Protocol Library

Scientific Resources

Product Details

Brand: BD Horizon™

Alternative Name: Gpf480; F480; Emr1; Ly71; DD7A5-7; EGF-TM7; TM7LN3

Reactivity: Mouse (QC Testing)

Isotype: Rat WI, also known as Wistar (outbred) IgG2a, κ

Immunogen: Mouse F4/80 Recombinant Protein

Application: Flow cytometry (Routinely Tested)

Concentration: 0.2 mg/ml

Entrez Gene ID: 13733

Storage Buffer: Aqueous buffered solution containing ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed.

Recommended Assay Procedures

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

For optimal and reproducible results, BD Horizon Brilliant™ Stain Buffer should be used anytime BD Horizon Brilliant dyes are used in a multicolor flow cytometry panel. Fluorescent dye interactions may cause staining artifacts which may affect data interpretation. The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. When BD Horizon Brilliant Stain Buffer is used in in the multicolor panel, it should also be used in the corresponding compensation controls for all dyes to achieve the most accurate compensation. For the most accurate compensation, compensation controls created with either cells or beads should be exposed to BD Horizon Brilliant Stain Buffer for the same length of time as the corresponding multicolor panel. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

Product Notices

Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Since applications vary, each investigator should titrate the reagent to obtain optimal results.
An isotype control should be used at the same concentration as the antibody of interest.
Please observe the following precautions: Absorption of visible light can significantly alter the energy transfer occurring in any tandem fluorochrome conjugate; therefore, we recommend that special precautions be taken (such as wrapping vials, tubes, or racks in aluminum foil) to prevent exposure of conjugated reagents, including cells stained with those reagents, to room illumination.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Although every effort is made to minimize the lot-to-lot variation in the efficiency of the fluorochrome energy transfer, differences in the residual emission from BD Horizon™ BV421 may be observed. Therefore, we recommend that individual compensation controls be performed for every BD Horizon™ BV605 conjugate.
BD Horizon Brilliant Violet 605 is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,227,187; 8,455,613; 8,575,303; 8,354,239.
BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
CF™ is a trademark of Biotium, Inc.
For U.S. patents that may apply, see bd.com/patents.

Companion Products

Stain Buffer (FBS) RUO

Size 500 mL Cat No. 554656

Stain Buffer (BSA) RUO

Size 500 mL Cat No. 554657

Brilliant Stain Buffer RUO

Size 1000 Tests Cat No. 566349

Brilliant Stain Buffer Plus RUO

Size 1000 Tests Cat No. 566385

Purified Rat Anti-Mouse CD16/CD32 (Mouse BD Fc Block™) RUO

Size 0.5 mg Cat No. 553142

BV605 Rat IgG2a, κ Isotype Control RUO

Size 50 µg Cat No. 563144

View Details

569237 Rev. 1

Antibody Details

T45-2342

The T45-2342 monoclonal antibody recognizes the mouse F4/80 antigen which is also known as EGF-like module-containing mucin-like hormone receptor-like 1 (EMR1). F4/80 is a 160 kDa glycoprotein that belongs to the EGF-TM7 family of seven-transmembrane spanning cell surface molecules. It is expressed on the surface of granulocytes and a wide range of mature tissue macrophages including, Kupffer cells, splenic red pulp macrophages, microglia, gut lamina propria macrophages, and Langerhans cells. F4/80 expression has also been reported on subpopulations of dendritic cells. F4/80 expression is heterogeneous and may be increased during inflammatory responses as observed in various mouse models of colitis, diabetes and brain injury.

569237 Rev. 1

Format Details

BV605

The BD Horizon Brilliant Violet™ 605 (BV605) dye is part of the BD Horizon Brilliant Violet™ family of dyes. This tandem fluorochrome is comprised of a BV421 donor with an excitation maximum (Ex Max) of 407-nm and an acceptor dye with an emission maximum (Em Max) at 605-nm. BV605, driven by BD innovation, is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 610-nm (e.g., a 610/20-nm bandpass filter). The acceptor dye can be excited by the yellow-green (561-nm) laser resulting in cross-laser excitation and fluorescence spillover. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

Format: BV605

Excitation Source: Violet 405 nm

Excitation Max: 407 nm

Emission Max: 605 nm

569237 Rev.1

Citations & References

Development References (7)

Austyn JM., and Gordon S. F4/80, a monoclonal antibody directed specifically against the mouse macrophage. Eur J Immunol. 1981; 10:805-815. (Biology). View Reference
Bodhankar S, Lapato A, Chen Y, Vandenbark AA, Saugstad JA, Offner H. Role for microglia in sex differences after ischemic stroke: importance of M2.. Metab Brain Dis. 2015. (Clone-specific: Flow cytometry). View Reference
Gordon S, Hamann J, Lin HH, Stacey M. F4/80 and the related adhesion-GPCRs. Eur J Immunol. 2011; 41(9):2472-2476. (Biology). View Reference
Ito F, Ku AW, Bucsek MJ, et al. Immune Adjuvant Activity of Pre-Resectional Radiofrequency Ablation Protects against Local and Systemic Recurrence in Aggressive Murine Colorectal Cancer.. PLoS ONE. 2015; 10(11):e0143370. (Clone-specific: Flow cytometry). View Reference
Krüger T, Benke D, Eitner F, et al. Identification and functional characterization of dendritic cells in the healthy murine kidney and in experimental glomerulonephritis. J Am Soc Nephrol. 2004; 15(3):613-621. (Biology). View Reference
Leenen PJ, Radosević K, Voerman JS, et al. Heterogeneity of mouse spleen dendritic cells: in vivo phagocytic activity, expression of macrophage markers, and subpopulation turnover.. J Immunol. 1998; 160(5):2166-73. (Biology). View Reference
McKnight AJ, Macfarlane AJ, Dri P, Turley L, Willis AC, Gordon S. Molecular cloning of F4/80, a murine macrophage-restricted cell surface glycoprotein with Homology to the G-protein-linked transmembrane & hormone receptor family. J Biol Chem. 1996; 271:486. (Biology). View Reference

View All (7)

569237 Rev. 1

Please refer to Support Documents for Quality Certificates

Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described

Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
