      BV711 Mouse Anti-Human γδ TCR
      Alert icon
      This product is the replacement for 745505.
      BV711 Mouse Anti-Human γδ TCR

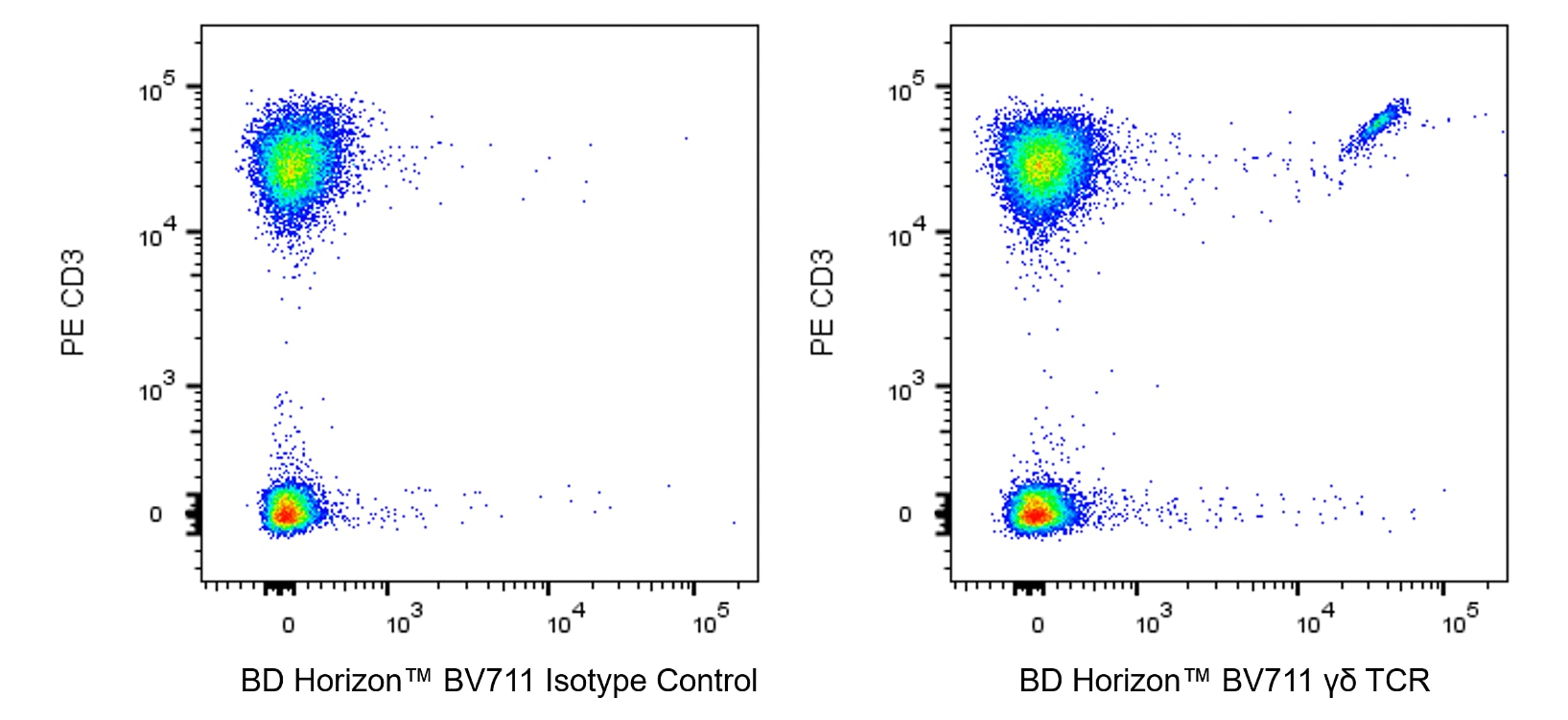

      Two-color flow cytometric analysis of γδ TCR expressed on Human peripheral blood lymphocytes. Human whole blood was stained with PE Mouse Anti-Human CD3 antibody (Cat. No. 555333) and with either BD Horizon™ BV711 Mouse IgG1, k Isotype Control (Cat No. 563044; Left Plot) or BD Horizon™ BV711 Mouse Anti-Human TCR γδ antibody (Cat No. 568490; Right Plot) at 0.5 µg/test. The erythrocytes were lysed with BD FACS™ Lysing Solution (Cat. No. 349202). The bivariate pseudocolor density plot showing the correlated express of  γδ TCR (or Ig Isotype Control) versus CD3 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
      BV711 Mouse Anti-Human γδ TCR
      Two-color flow cytometric analysis of γδ TCR expressed on Human peripheral blood lymphocytes. Human whole blood was stained with PE Mouse Anti-Human CD3 antibody (Cat. No. 555333) and with either BD Horizon™ BV711 Mouse IgG1, k Isotype Control (Cat No. 563044; Left Plot) or BD Horizon™ BV711 Mouse Anti-Human TCR γδ antibody (Cat No. 568490; Right Plot) at 0.5 µg/test. The erythrocytes were lysed with BD FACS™ Lysing Solution (Cat. No. 349202). The bivariate pseudocolor density plot showing the correlated express of  γδ TCR (or Ig Isotype Control) versus CD3 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
      Product Details
      Down Arrow Up Arrow


      BD Horizon™
      TCRgd; γδ TCR; TRG@/TRD@; TCRG/TCRD; TCR gamma delta
      Human (QC Testing)
      Mouse BALB/c IgG1
      Sepharose® bead/CD3/γ/δ TCR complex
      Flow cytometry (Routinely Tested)
      0.2 mg/ml
      6964, 6965
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed.
      Show More blue down arrow Show Less blue up arrow

      Recommended Assay Procedures

         BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation).  When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells.   However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls.  It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

         For optimal and reproducible results, BD Horizon Brilliant™ Stain Buffer should be used anytime BD Horizon Brilliant™ dyes are used in a multicolor flow cytometry panel.  Fluorescent dye interactions may cause staining artifacts which may affect data interpretation.  The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. When BD Horizon Brilliant Stain Buffer is used in in the multicolor panel, it should also be used in the corresponding compensation controls for all dyes to achieve the most accurate compensation. For the most accurate compensation, compensation controls created with either cells or beads should be exposed to BD Horizon Brilliant Stain Buffer for the same length of time as the corresponding multicolor panel. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      2. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      3. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      4. An isotype control should be used at the same concentration as the antibody of interest.
      5. BD Horizon Brilliant Violet 711 is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,227,187; 8,455,613; 8,575,303; 8,354,239.
      6. BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
      7. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
      8. Alexa Fluor™ is a trademark of Life Technologies Corporation.
      9. Cy is a trademark of Global Life Sciences Solutions Germany GmbH or an affiliate doing business as Cytiva.
      10. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      11. Human donor specific background has been observed in relation to the presence of anti-polyethylene glycol (PEG) antibodies, developed as a result of certain vaccines containing PEG, including some COVID-19 vaccines. We recommend use of BD Horizon Brilliant™ Stain Buffer in your experiments to help mitigate potential background. For more information visit https://www.bdbiosciences.com/en-us/support/product-notices.
      Show More blue down arrow Show Less blue up arrow
      568490 Rev. 1
      Antibody Details
      Down Arrow Up Arrow
      11F2

      The 11F2 monoclonal antibody specifically reacts with a framework epitope of the γ/δ TCR. The γ/δ TCR is a heterodimeric glycoprotein that is noncovalently associated with the CD3 antigen complex. The γ and δ TCR chains are composed of constant and variable regions, each encoded by distinct gene segments. The γ chain forms either disulfide-linked or non-disulfide-linked heterodimers with the δ-subunit. TCR γ/δ is present on a minor subset of T lymphocytes in peripheral blood, thymus, spleen, and lymph node. TCR γ/δ-positive T lymphocytes comprise 1% to 9% of normal peripheral blood lymphocytes and less than 2% of normal thymocytes. The 11F2 antibody is mitogenic for γ/δ-TCR-bearing T lymphocytes.

      568490 Rev. 1
      Format Details
      Down Arrow Up Arrow
      BV711
      The BD Horizon Brilliant Violet™ 711 (BV711) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This tandem fluorochrome is comprised of a BV421 donor with an excitation maximum (Ex Max) of 407-nm and an acceptor dye with an emission maximum (Em Max) at 713-nm. BV711, driven by BD innovation, is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 710-nm (e.g., a 712/20-nm bandpass filter). The acceptor dye can be excited by the Red (628–640-nm) laser resulting in cross-laser excitation and fluorescence spillover. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
      altImg
      BV711
      Violet 405 nm
      407 nm
      713 nm
      568490 Rev.1
      Citations & References
      Down Arrow Up Arrow

      Development References (14)

      1. Blink SE, Miller SD. The contribution of gammadelta T cells to the pathogenesis of EAE and MS.. Curr Mol Med. 2009; 9(1):15-22. (Biology). View Reference
      2. Bonneville M, O'Brien RL, Born WK. Gammadelta T cell effector functions: a blend of innate programming and acquired plasticity. Nat Rev Immunol. 2110; 10(7):467-478. (Biology). View Reference
      3. Borst J, van Dongen JJ, Bolhuis RL, et al. Distinct molecular forms of human T cell receptor gamma/delta detected on viable T cells by a monoclonal antibody.. J Exp Med. 1988; 167(5):1625-44. (Immunogen: Electron microscopy, ELISA, Flow cytometry, Fluorescence microscopy, Immunofluorescence). View Reference
      4. Cairo C, Hebbeler AM, Propp N, Bryant JL, Colizzi V, Pauza CD. Innate-like gammadelta T cell responses to mycobacterium Bacille Calmette-Guerin using the public V gamma 2 repertoire in Macaca fascicularis.. Tuberculosis (Edinb). 2007; 87(4):373-83. (Biology). View Reference
      5. Carding SR, Egan PJ. The importance of gamma delta T cells in the resolution of pathogen-induced inflammatory immune responses.. Immunol Rev. 2000; 173:98-108. (Biology). View Reference
      6. Chen ZW. Immune regulation of gammadelta T cell responses in mycobacterial infections.. Clin Immunol. 2005; 116(3):202-7. (Biology). View Reference
      7. García VE, Sieling PA, Gong J, et al. Single-cell cytokine analysis of gamma delta T cell responses to nonpeptide mycobacterial antigens.. J Immunol. 1997; 159(3):1328-35. (Biology). View Reference
      8. Huang D, Chen CY, Zhang M, et al. Clonal immune responses of Mycobacterium-specific γδ T cells in tuberculous and non-tuberculous tissues during M. tuberculosis infection.. PLoS ONE. 2012; 7(2):e30631. (Biology). View Reference
      9. Ichinohasama R, Miura I, Takahashi T, et al. Peripheral CD4+ CD8- gammadelta T cell lymphoma: a case report with multiparameter analyses.. Hum Pathol. 1996; 27(12):1370-7. (Clone-specific: Flow cytometry). View Reference
      10. Lanier LL, Federspiel NA, Ruitenberg JJ, et al. The T cell antigen receptor complex expressed on normal peripheral blood CD4-, CD8- T lymphocytes. A CD3-associated disulfide-linked gamma chain heterodimer.. J Exp Med. 1987; 165(4):1076-94. (Clone-specific: Flow cytometry). View Reference
      11. Lanier LL, Ruitenberg J, Bolhuis RL, Borst J, Phillips JH, Testi R. Structural and serological heterogeneity of gamma/delta T cell antigen receptor expression in thymus and peripheral blood.. Eur J Immunol. 1988; 18(12):1985-92. (Clone-specific: Flow cytometry, Immunoprecipitation). View Reference
      12. Lanier LL, Serafini AT, Ruitenberg JJ, et al. The gamma T-cell antigen receptor.. J Clin Immunol. 1987; 7(6):429-40. (Biology). View Reference
      13. Testi R, Lanier LL. Functional expression of CD28 on T cell antigen receptor gamma/delta-bearing T lymphocytes.. Eur J Immunol. 1989; 19(1):185-8. (Clone-specific: Flow cytometry, Functional assay). View Reference
      14. Urban EM, Chapoval AI, Pauza CD. Repertoire development and the control of cytotoxic/effector function in human gammadelta T cells.. Clin Dev Immunol. 2010; 2010:732893. (Biology). View Reference
      View All (14) View Less
      568490 Rev. 1

      Please refer to Support Documents for Quality Certificates


      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
