BV650 Mouse Anti-Human CD141

This product is the replacement for 740604.

BD Horizon™ BV650 Mouse Anti-Human CD141

Name: BV650 Mouse Anti-Human CD141
Brand: BV650 Mouse Anti-Human CD141
SKU: 569392

Clone 1A4 (RUO)

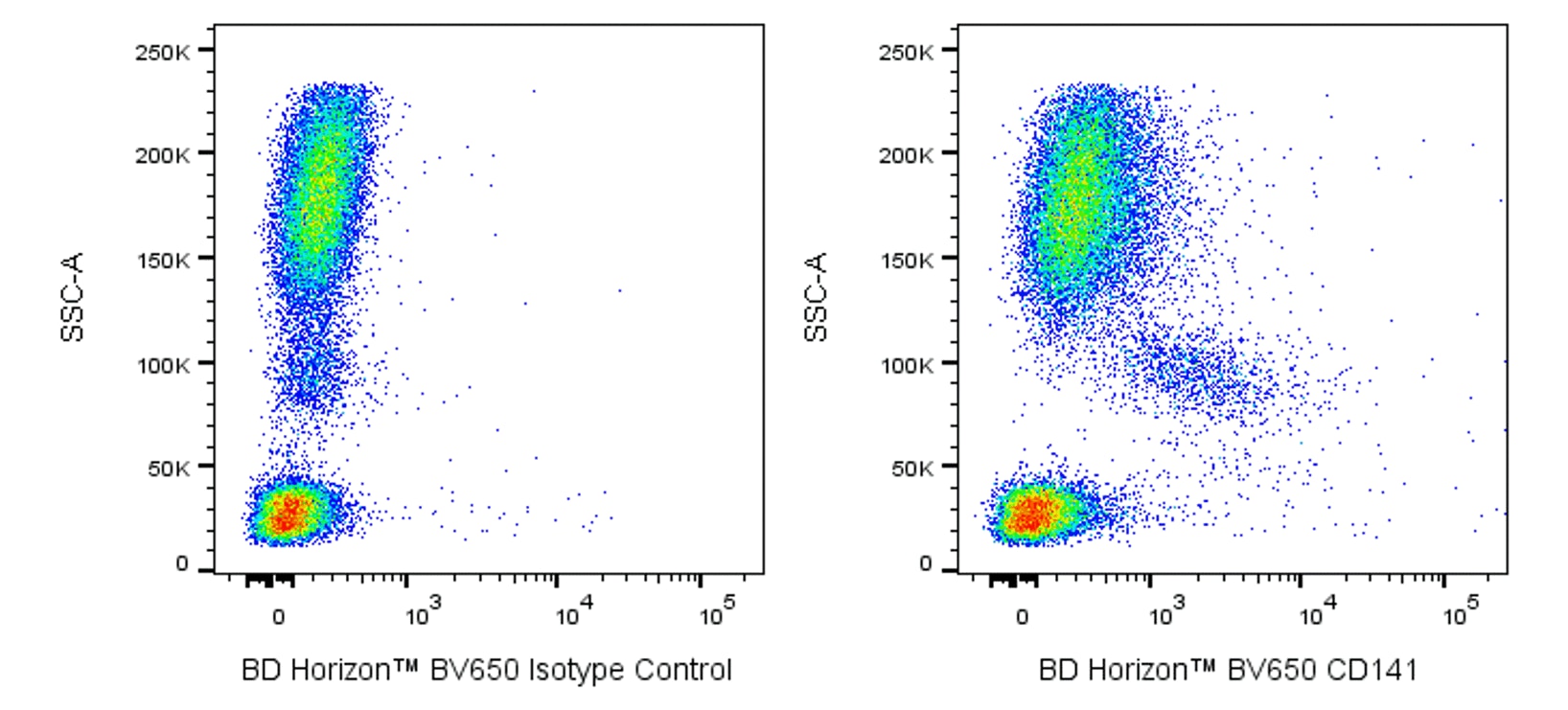

Multiparameter flow cytometric analysis of CD141 expression on Human peripheral blood leucocyte populations. Human whole blood was stained with either BD Horizon™ BV650 Mouse IgG1, κ Isotype Control (Cat. No. 563231; Left Plot) or BD Horizon™ BV650 Mouse Anti-Human CD141 antibody (Cat. No. 569392; Right Plot) at 0.125 µg/test. Erythrocytes were lysed with BD FACS™ Lysing Solution (Cat. No. 349202). The bivariate pseudocolor density plot showing the correlated expression of CD141 (or Ig Isotype control staining) versus side light-scatter (SSC-A) signals was derived from gated events with the forward and side light-scatter characteristics of intact leucocyte populations. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.

Spectrum Viewer

Protocol Library

Scientific Resources

Catalog No:569392

Your Price:Sign In

List Price:$530.00

Unit:EA (1 Each)

Size:

50 µg

Quantity:

Add to Cart

Save To Shopping List Request Bulk Reagent Quote

Product Details

Brand: BD Horizon™

Alternative Name: Thrombomodulin; TM; THBD; THRM; AHUS6; Fetomodulin; BDCA-3

Reactivity: Human (QC Testing)

Isotype: Mouse BALB/c IgG1, κ

Immunogen: Purified Human Thrombomodulin

Application: Flow cytometry (Routinely Tested)

Concentration: 0.2 mg/ml

Workshop Number: VI E013

RRID: AB_3685029

Storage Buffer: Aqueous buffered solution containing ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions that minimize unconjugated dye and antibody.

Recommended Assay Procedures

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

For optimal and reproducible results, BD Horizon Brilliant™ Stain Buffer should be used anytime BD Horizon Brilliant dyes are used in a multicolor flow cytometry panel. Fluorescent dye interactions may cause staining artifacts which may affect data interpretation. The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. When BD Horizon Brilliant Stain Buffer is used in in the multicolor panel, it should also be used in the corresponding compensation controls for all dyes to achieve the most accurate compensation. For the most accurate compensation, compensation controls created with either cells or beads should be exposed to BD Horizon Brilliant Stain Buffer for the same length of time as the corresponding multicolor panel. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

Product Notices

Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Since applications vary, each investigator should titrate the reagent to obtain optimal results.
An isotype control should be used at the same concentration as the antibody of interest.
BD Horizon Brilliant Violet 650 is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,227,187; 8,455,613; 8,575,303; 8,354,239.
BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
Human donor specific background has been observed in relation to the presence of anti-polyethylene glycol (PEG) antibodies, developed as a result of certain vaccines containing PEG, including some COVID-19 vaccines. We recommend use of BD Horizon Brilliant™ Stain Buffer in your experiments to help mitigate potential background. For more information visit https://www.bdbiosciences.com/en-us/support/product-notices.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
Alexa Fluor™ is a trademark of Life Technologies Corporation.
For U.S. patents that may apply, see bd.com/patents.

Data Sheets

Technical Data Sheet (TDS)

Companion Products

Stain Buffer (FBS) RUO

Size 500 mL Cat No. 554656

Stain Buffer (BSA) RUO

Size 500 mL Cat No. 554657

Brilliant Stain Buffer RUO

Size 1000 Tests Cat No. 566349

Brilliant Stain Buffer Plus RUO

Size 1000 Tests Cat No. 566385

BV650 Mouse IgG1, k Isotype Control RUO

Size 50 µg Cat No. 563231

Lysing Buffer RUO

Size 100 mL Cat No. 555899

View Details

569392 Rev. 1

Antibody Details

1A4

The 1A4 monoclonal antibody specifically binds to CD141. CD141 is a 75 kDa, single chain, type I membrane glycoprotein referred to as thrombomodulin and fetomodulin. CD141 is expressed on endothelial cells, smooth muscle cells, epithelial cells, synovial lining cells, and keratinocytes. It is also found on megakaryocytes, dendritic cells, peripheral blood monocytes, and neutrophils, but not on lymphocytes. Reports indicate that CD141 plays an important role in Protein C activation and the initiation of the Protein C anticoagulant pathway. Thrombin loses its procoagulant function when it binds to CD141, and the CD141/thrombin complex is able to activate Protein C.

569392 Rev. 1

Format Details

BV650

The BD Horizon Brilliant Violet™ 650 (BV650) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This tandem fluorochrome is comprised of a BV421 donor with an excitation maximum (Ex Max) of 406-nm and an acceptor dye with an emission maximum (Em Max) at 649-nm. BV650, driven by BD innovation, is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 650-nm (e.g., a 660/20-nm bandpass filter). The acceptor dye can be excited by the Red (628–640-nm) laser resulting in cross-laser excitation and fluorescence spillover. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

Format: BV650

Excitation Source: Violet 405 nm

Excitation Max: 406 nm

Emission Max: 649 nm

569392 Rev.1

Citations & References

Development References (3)

Chu M, Bird P. CD141 (thrombomodulin) Workshop Panel report. In: Kishimoto T. Tadamitsu Kishimoto .. et al., ed. Leucocyte typing VI : white cell differentiation antigens : proceedings of the sixth international workshop and conference held in Kobe, Japan, 10-14 November 1996. New York: Garland Pub.; 1997:741-742.
Kishimoto T. Tadamitsu Kishimoto .. et al., ed. Leucocyte typing VI : white cell differentiation antigens : proceedings of the sixth international workshop and conference held in Kobe, Japan, 10-14 November 1996. New York: Garland Pub.; 1997.
Teasdale MS, Bird CH, Bird P. Internalization of the anticoagulant thrombomodulin is constitutive and does not require a signal in the cytoplasmic domain. Immunol Cell Biol. 1994; 72(6):480-488. (Immunogen: Immunofluorescence, Immunoprecipitation, Western blot). View Reference

569392 Rev. 1

Please refer to Support Documents for Quality Certificates

Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described

Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
