BV786 Rat Anti-Mouse CD138 (Syndecan-1)

This product is the replacement for 740880.

BD Horizon™ BV786 Rat Anti-Mouse CD138 (Syndecan-1)

Name: BV786 Rat Anti-Mouse CD138 (Syndecan-1)
Brand: BV786 Rat Anti-Mouse CD138 (Syndecan-1)
SKU: 569692

Clone 281-2 (RUO)

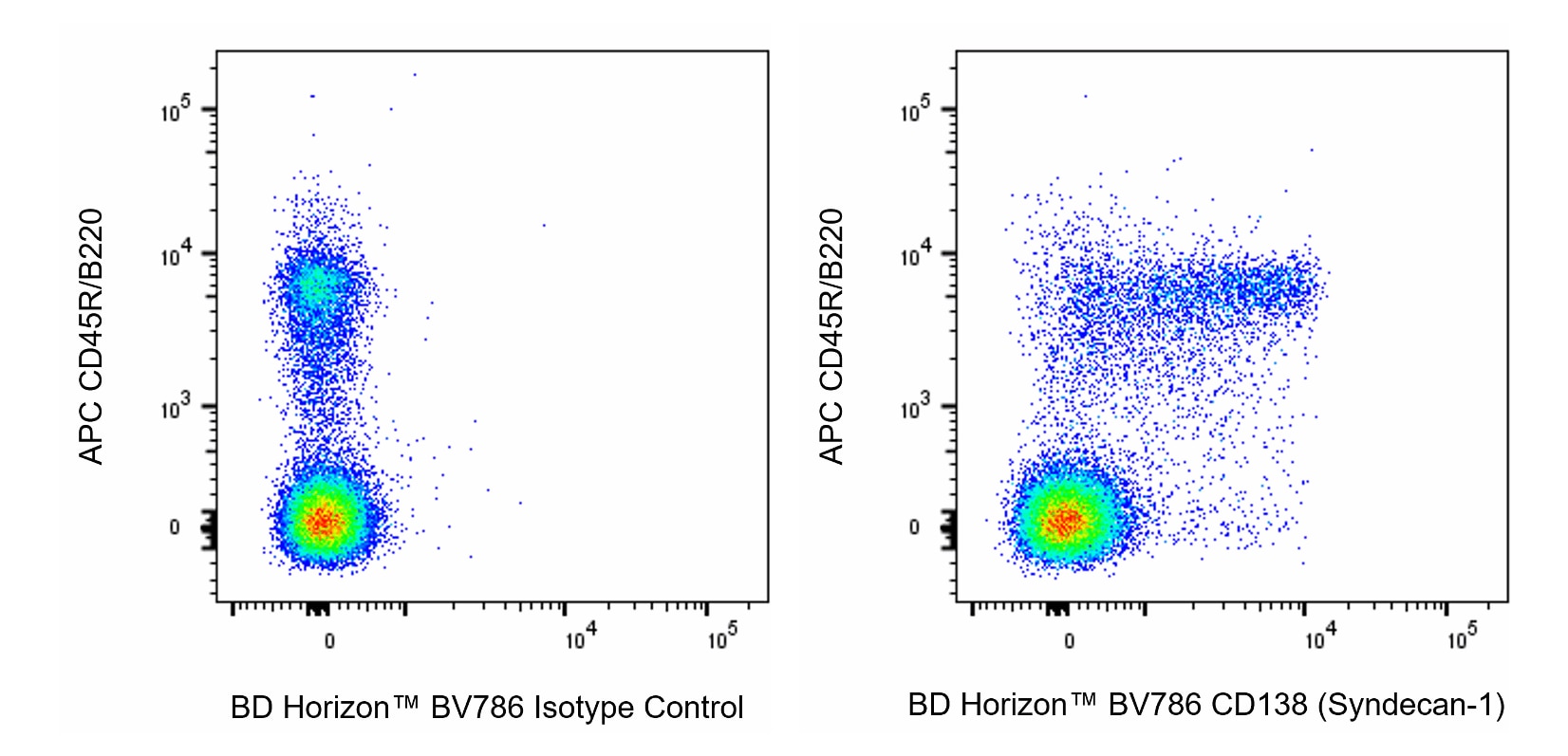

Multicolor flow cytometric analysis of CD138 (Syndecan-1) expression on Mouse bone marrow B lymphocytes. C57BL/6 Mouse bone marrow cells were stained with APC Rat Anti-Mouse CD45R/B220 antibody (Cat. No. 553092/561880) and with either BD Horizon™ BV786 Rat IgG2a, κ Isotype Control (Cat. No. 563335; Left Plot) or BD Horizon™ BV786 Rat Anti-Mouse CD138 (Syndecan-1) antibody (Cat. No. 569692; Right Plot) at 0.06 µg/test. BD Via-Probe™ Cell Viability 7-AAD Solution (Cat. No. 555815/555816) was added to cells right before analysis. The bivariate pseudocolor density plot showing the expression of CD138 (Syndecan-1) [or Ig Isotype control staining] versus CD45R/B220 was derived from gated events with the forward and side light-scatter characteristics of viable (7-AAD-negative) bone marrow cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.

Spectrum Viewer

Protocol Library

Scientific Resources

Catalog No:569692

Your Price:Sign In

List Price:$342.00

Unit:EA (1 Each)

Size:

50 µg

Quantity:

Add to Cart

Save To Shopping List Request Bulk Reagent Quote

Product Details

Brand: BD Horizon™

Alternative Name: SYND1; Syndecan-1; syn-1; Sdc1; Sstn; synstatin

Reactivity: Mouse (QC Testing)

Isotype: Rat F344, also known as Fischer, CDF IgG2a, κ

Immunogen: NAMRU mouse mammary gland epithelial cell line NMuMG

Application: Flow cytometry (Routinely Tested)

Concentration: 0.2 mg/ml

Entrez Gene ID: 20969

RRID: AB_3685236

Storage Buffer: Aqueous buffered solution containing ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation And Storage

The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.

Recommended Assay Procedures

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

For optimal and reproducible results, BD Horizon Brilliant Stain Buffer should be used anytime BD Horizon Brilliant dyes are used in a multicolor flow cytometry panel. Fluorescent dye interactions may cause staining artifacts which may affect data interpretation. The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. When BD Horizon Brilliant Stain Buffer is used in the multicolor panel, it should also be used in the corresponding compensation controls for all dyes to achieve the most accurate compensation. For the most accurate compensation, compensation controls created with either cells or beads should be exposed to BD Horizon Brilliant Stain Buffer for the same length of time as the corresponding multicolor panel. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

Product Notices

Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Since applications vary, each investigator should titrate the reagent to obtain optimal results.
An isotype control should be used at the same concentration as the antibody of interest.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
For U.S. patents that may apply, see bd.com/patents.

Data Sheets

Technical Data Sheet (TDS)

Safety Data Sheet

Companion Products

Stain Buffer (FBS) RUO

Size 500 mL Cat No. 554656

Stain Buffer (BSA) RUO

Size 500 mL Cat No. 554657

Brilliant Stain Buffer RUO

Size 1000 Tests Cat No. 566349

Brilliant Stain Buffer Plus RUO

Size 1000 Tests Cat No. 566385

BV786 Rat IgG2a, κ Isotype Control RUO

Size 50 µg Cat No. 563335

APC Rat Anti-Mouse CD45R/B220 RUO

Size 0.1 mg Cat No. 553092

View Details

569692 Rev. 1

Antibody Details

281-2

The 281-2 monoclonal antibody specifically binds to the core protein of CD138 (Syndecan-1), a cell-surface, integral membrane heparan sulfate- and chondroitin sulfate-containing proteoglycan that binds to interstitial extracellular matrix molecules. Syndecan-1 is predominantly expressed on epithelial cells, where its expression correlates with normal epithelial organization. It is also expressed on B lymphocytes at specific stages during their differentiation: precursor B cells in the bone marrow, and antibody-secreting cells including plasma cells (but not mature peripheral B cells). It is thus implicated in mediating B cell-matrix interactions. CD138 expression is also regulated during embryonic development, and the molecule shows a tissue- specific structural polymorphism resulting from different post-translational modifications. The 281-2 antibody may be used to detect the differently glycosylated forms, because it reacts with the core protein. Furthermore, the mAb detects the Syndecan-1 ectodomain which is cleaved from cell surfaces by a metalloproteinase.

569692 Rev. 1

Format Details

BV786

The BD Horizon Brilliant Violet™ 786 (BV786) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This tandem fluorochrome is comprised of a BV421 donor with an Ex Max of 407-nm and an acceptor dye with an Em Max at 786-nm. BV786, driven by BD innovation, is designed to be excited by the violet laser and detected using a filter, centered near 785 nm (e.g. 780/60 nm bandpass filter). Please ensure that your instrument’s configurations (lasers and filters) are appropriate for this dye.

Format: BV786

Excitation Source: Violet 405 nm

Excitation Max: 407 nm

Emission Max: 786 nm

569692 Rev.1

Citations & References

Development References (10)

Bernfield M, Kokenyesi R, Kato M, et al. Biology of the syndecans: a family of transmembrane heparan sulfate proteoglycans. Annu Rev Cell Biol. 1992; 8:365-393. (Biology). View Reference
Driver DJ, McHeyzer-Williams LJ, Cool M, Stetson DB, McHeyzer-Williams MG. Development and maintenance of a B220- memory B cell compartment. J Immunol. 2001; 167(3):1393-1405. (Clone-specific: Flow cytometry, Fluorescence microscopy, Immunofluorescence). View Reference
Fitzgerald ML, Wang Z, Park PW, Murphy G, Bernfield M. Shedding of syndecan-1 and -4 ectodomains is regulated by multiple signaling pathways and mediated by a TIMP-3-sensitive metalloproteinase. J Cell Biol. 2000; 148(4):811-824. (Clone-specific: Dot Blot, Fluorescence microscopy, Immunofluorescence). View Reference
Hayashi K, Hayashi M, Jalkanen M, Firestone JH, Trelstad RL, Bernfield M. Immunocytochemistry of cell surface heparan sulfate proteoglycan in mouse tissues. A light and electron microscopic study. J Histochem Cytochem. 1987; 35(10):1079-1088. (Clone-specific: Immunohistochemistry). View Reference
Jalkanen M, Nguyen H, Rapraeger A, Kurn N, Bernfield M. Heparan sulfate proteoglycans from mouse mammary epithelial cells: localization on the cell surface with a monoclonal antibody. J Cell Biol. 1985; 101(3):976-984. (Immunogen: Dot Blot, ELISA, Fluorescence microscopy, Immunofluorescence, Radioimmunoassay, Western blot). View Reference
Lalor PA, Nossal GJ, Sanderson RD, McHeyzer-Williams MG. Functional and molecular characterization of single, (4-hydroxy-3-nitrophenyl)acetyl (NP)-specific, IgG1+ B cells from antibody-secreting and memory B cell pathways in the C57BL/6 immune response to NP. Eur J Immunol. 1992; 22(11):3001-3011. (Biology: Western blot). View Reference
Sanderson RD, Lalor P, Bernfield M. B lymphocytes express and lose syndecan at specific stages of differentiation. Cell Regul. 1989; 1(1):27-35. (Clone-specific: Flow cytometry, Immunoaffinity chromatography, Immunohistochemistry, Western blot). View Reference
Sanderson RD, Sneed TB, Young LA, Sullivan GL, Lander AD. Adhesion of B lymphoid (MPC-11) cells to type I collagen is mediated by integral membrane proteoglycan, syndecan. J Immunol. 1992; 148(12):3902-3911. (Clone-specific: Immunoaffinity chromatography, Radioimmunoassay). View Reference
Saunders S, Jalkanen M, O'Farrell S, Bernfield M. Molecular cloning of syndecan, an integral membrane proteoglycan. J Cell Biol. 1989; 108(4):1547-1556. (Clone-specific). View Reference
Wehrli N, Legler DF, Finke D. Changing responsiveness to chemokines allows medullary plasmablasts to leave lymph nodes. Eur J Immunol. 2001; 31(2):609-616. (Biology: Immunohistochemistry). View Reference

View All (10)

569692 Rev. 1
