      BV421 Hamster Anti-Mouse TCR β Chain
      BV421 Hamster Anti-Mouse TCR β Chain

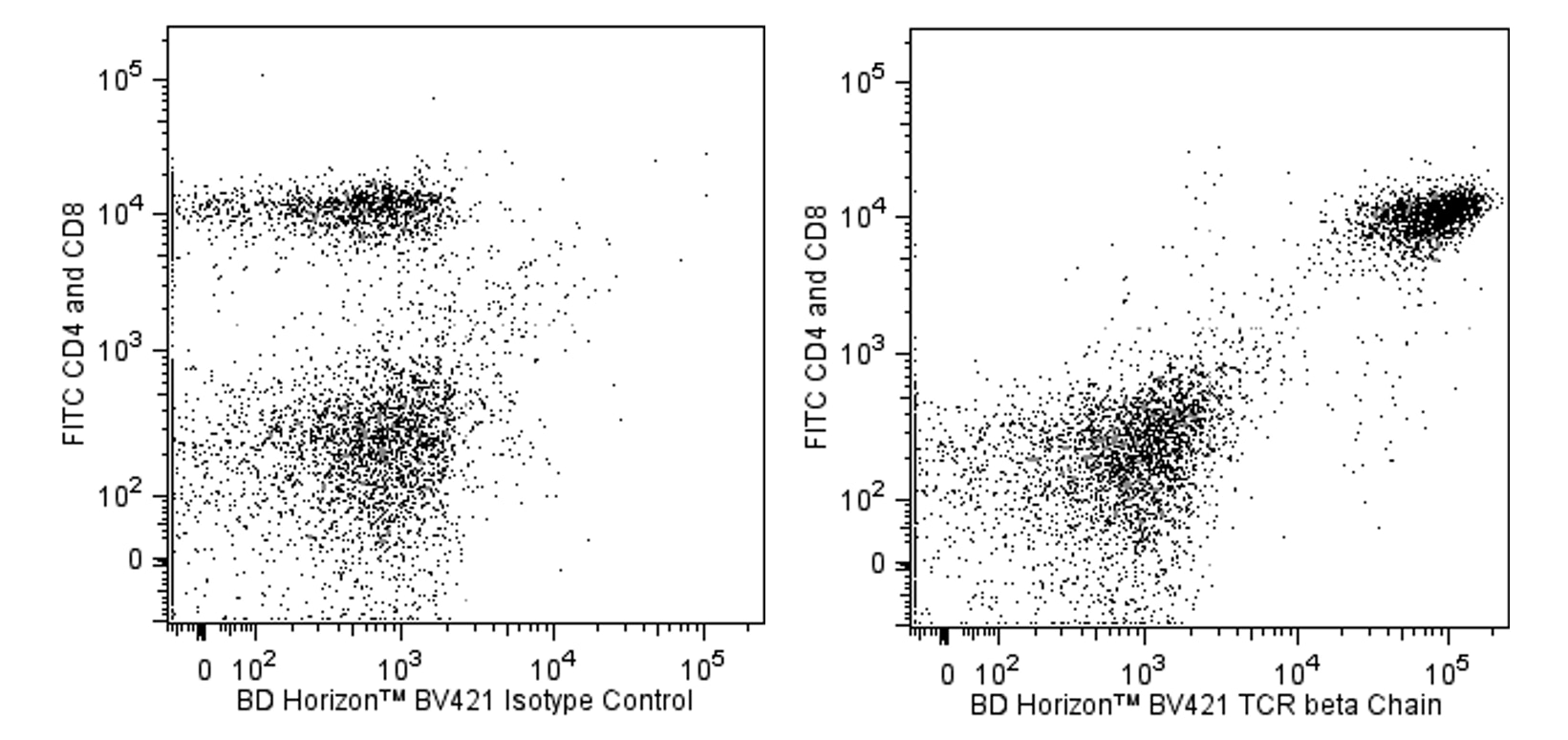

      Multicolor flow cytometric analysis of TCRβ expression on mouse splenocytes. Mouse splenic leucocytes were incubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) (Cat. No. 553141/553142) and then stained with FITC Rat Anti-Mouse CD4  (Cat. No. 553047/553046/561835) and FITC Rat Anti-Mouse CD8a (Cat. No. 553031/553030/561966) and either BD Horizon™ BV421 Hamster IgG2, Lambda Isotype Control (Cat. No. 562629, Left Panel) or BD Horizon™ BV421 Hamster Anti-Mouse TCR β Chain antibody (Cat. No. 562839; Right Panel). Two-color flow cytometric dot plots show the correlated expression patterns of TCRβ (or Ig Isotype control staining) versus CD4 + CD8 for gated events with the forward and side light-scatter characteristics of viable splenic leucocytes. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
      BV421 Hamster Anti-Mouse TCR β Chain

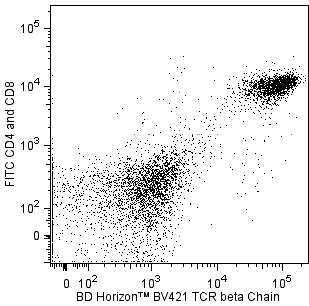

      Multicolor flow cytometric analysis of TCRβ expression on mouse splenocytes. Mouse splenic leucocytes were incubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) (Cat. No. 553141/553142) and then stained with FITC Rat Anti-Mouse CD4  (Cat. No. 553047/553046/561835) and FITC Rat Anti-Mouse CD8a (Cat. No. 553031/553030/561966) and either BD Horizon™ BV421 Hamster IgG2, Lambda Isotype Control (Cat. No. 562629, Left Panel) or BD Horizon™ BV421 Hamster Anti-Mouse TCR β Chain antibody (Cat. No. 562839; Right Panel). Two-color flow cytometric dot plots show the correlated expression patterns of TCRβ (or Ig Isotype control staining) versus CD4 + CD8 for gated events with the forward and side light-scatter characteristics of viable splenic leucocytes. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
      Product Details
      Down Arrow Up Arrow


      BD Horizon™
      Tcrb; TCRbeta; TCRβ, T cell receptor beta chain
      Mouse (QC Testing)
      Armenian Hamster IgG2, λ1
      TCR affinity-purified from mouse T-cell hybridoma DO-11.10
      Flow cytometry (Routinely Tested)
      0.2 mg/ml
      21577
      AB_2737830
      Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with BD Horizon BV421 under optimum conditions, and unconjugated antibody and free BD Horizon BV421 were removed.
      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      2. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
      3. An isotype control should be used at the same concentration as the antibody of interest.
      4. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      5. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      6. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      7. Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
      8. Brilliant Violet™ 421 is a trademark of Sirigen.
      9. Although hamster immunoglobulin isotypes have not been well defined, BD Biosciences Pharmingen has grouped Armenian and Syrian hamster IgG monoclonal antibodies according to their reactivity with a panel of mouse anti-hamster IgG mAbs. A table of the hamster IgG groups, Reactivity of Mouse Anti-Hamster Ig mAbs, may be viewed at http://www.bdbiosciences.com/documents/hamster_chart_11x17.pdf.
      Show More blue down arrow Show Less blue up arrow
      562839 Rev. 1
      Antibody Details
      Down Arrow Up Arrow
      H57-597

      The H57-597 antibody reacts with a common epitope of the β chain of the T-cell Receptor (TCR) complex on αβ TCR-expressing thymocytes, peripheral T lymphocytes, NK1.1+ thymocytes, and NK-T cells of all mouse strains tested. It does not react with γδ TCR-bearing T cells. In the fetal and adult thymus, the TCR β-chain may form homodimers or pair with the pre-TCR α-chain on the surface of immature thymocytes before TCR α-chain expression. Plate-bound or soluble H57-597 antibody activates αβ TCR-bearing T cells, and plate-bound mAb can induce apoptotic death.

      The antibody was conjugated to BD Horizon™ BV421 which is part of the BD Horizon™ Brilliant Violet™ family of dyes. With an Ex Max of 407-nm and Em Max at 421-nm, BD Horizon™ BV421 can be excited by the violet laser and detected in the standard Pacific Blue™ filter set (eg, 450/50-nm filter). BD Horizon™ BV421 conjugates are very bright, often exhibiting a 10 fold improvement in brightness compared to Pacific Blue™ conjugates.

      562839 Rev. 1
      Format Details
      Down Arrow Up Arrow
      BV421
      The BD Horizon Brilliant Violet™ 421 (BV421) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This polymer-technology based dye has an excitation maximum (Ex Max) of 407-nm and an emission maximum (Em Max) at 423-nm. Driven by BD innovation, BV421 is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 420-nm (e.g., a 431/28-nm or 450/50-nm bandpass filter). BV421 is an ideal alternative for V450 as it is approximately ten times brighter with less spillover into the BV510/V500 detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
      altImg
      BV421
      Violet 405 nm
      407 nm
      423 nm
      562839 Rev.1
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "562839" on CiteAb

      Development References (5)

      1. Castro JE, Listman JA, Jacobson BA, et al. Fas modulation of apoptosis during negative selection of thymocytes. Immunity. 1996; 5(6):617-627. (Clone-specific: Fluorescence microscopy). View Reference
      2. Gascoigne NR. Transport and secretion of truncated T cell receptor beta-chain occurs in the absence of association with CD3. J Biol Chem. 1990; 265(16):9296-9301. (Clone-specific: Immunoprecipitation). View Reference
      3. Kruisbeek AM, Shevach EM. Proliferative assays for T cell function. Curr Protoc Immunol. 2004; 3:3.12.1-3.12.14. (Clone-specific). View Reference
      4. Kubo RT, Born W, Kappler JW, Marrack P, Pigeon M. Characterization of a monoclonal antibody which detects all murine alpha beta T cell receptors. J Immunol. 1989; 142(8):2736-2742. (Immunogen: Flow cytometry). View Reference
      5. Saint-Ruf C, Panigada M, Azogui O, Debey P, von Boehmer H, Grassi F. Different initiation of pre-TCR and gammadeltaTCR signalling. Nature. 2000; 406(6795):524-527. (Clone-specific: Stimulation). View Reference
      View All (5) View Less
      562839 Rev. 1



      Please refer to Support Documents for Quality Certificates


      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
