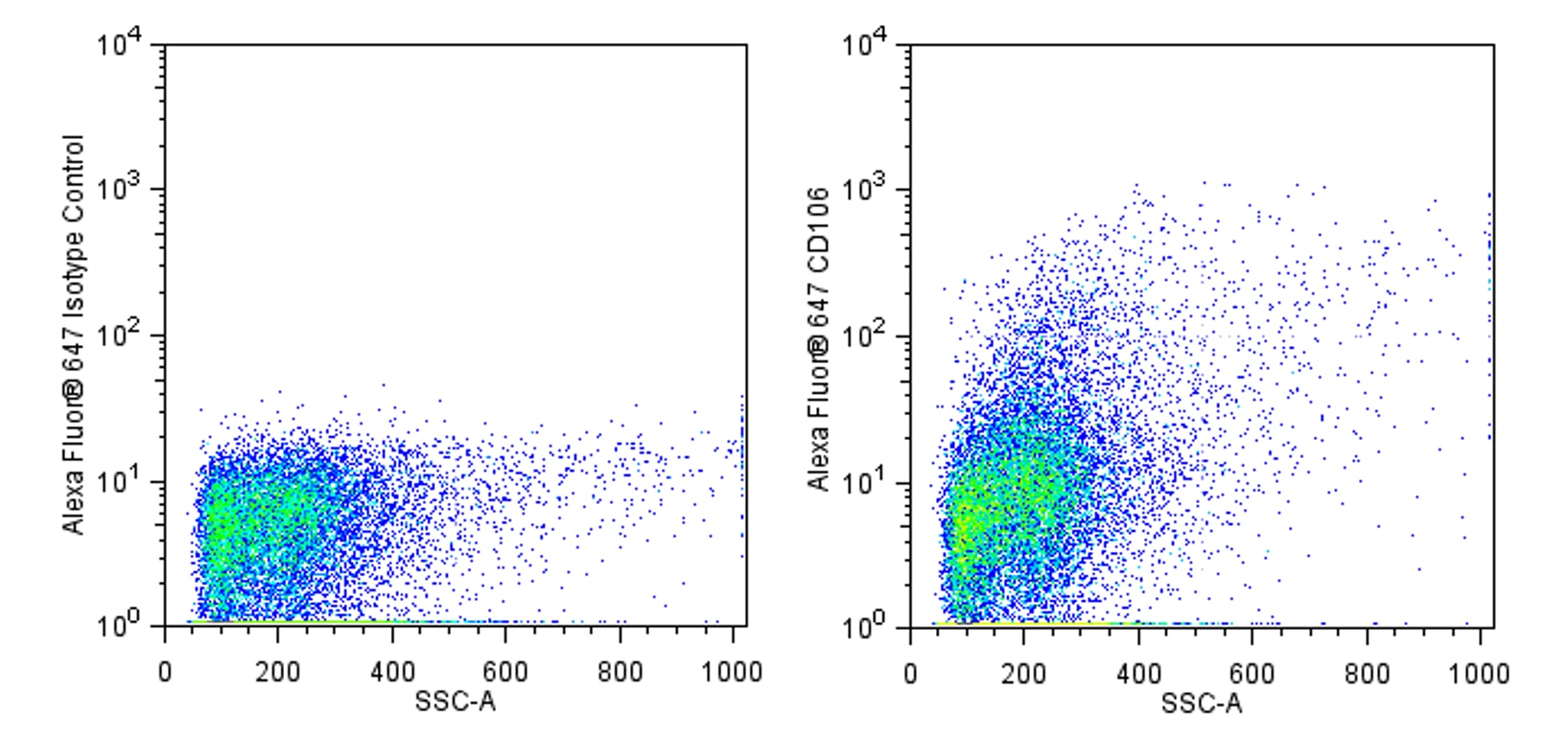

Flow cytometric analysis of CD106 expression on mouse bone marrow cells. BALB/c mouse bone marrow cells were stained with either an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat No. 557690, Left Panel) or with the Alexa Fluor® 647 Rat Anti-Mouse CD106 antibody (Cat No. 561612, Right Panel). Flow cytometric dot plots showing the correlated expression of side light-scatter versus CD106 (or Ig isotype control staining) were derived from total viable cells from bone marrow. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of CD106 expression on mouse bone marrow cells. BALB/c mouse bone marrow cells were stained with either an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat No. 557690, Left Panel) or with the Alexa Fluor® 647 Rat Anti-Mouse CD106 antibody (Cat No. 561612, Right Panel). Flow cytometric dot plots showing the correlated expression of side light-scatter versus CD106 (or Ig isotype control staining) were derived from total viable cells from bone marrow. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Product Details
BD Pharmingen™
Vcam-1; Vascular cell adhesion molecule 1; Vascular cell adhesion protein 1
Mouse (QC Testing)
Rat LEW, also known as Lewis IgG2a, κ
Mouse preadipose cell line PA6
Flow cytometry (Routinely Tested)
0.2 mg/ml
22329
AB_10896662
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO
Preparation And Storage
Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to Alexa Fluor® 647 under optimum conditions, and unreacted Alexa Fluor® 647 was removed.
Product Notices
- Since applications vary, each investigator should titrate the reagent to obtain optimal results.
- An isotype control should be used at the same concentration as the antibody of interest.
- The Alexa Fluor®, Pacific Blue™, and Cascade Blue® dye antibody conjugates in this product are sold under license from Molecular Probes, Inc. for research use only, excluding use in combination with microarrays, or as analyte specific reagents. The Alexa Fluor® dyes (except for Alexa Fluor® 430), Pacific Blue™ dye, and Cascade Blue® dye are covered by pending and issued patents.
- Alexa Fluor® is a registered trademark of Molecular Probes, Inc., Eugene, OR.
- Alexa Fluor® 647 fluorochrome emission is collected at the same instrument settings as for allophycocyanin (APC).
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Companion Products
Stain Buffer (FBS) RUO
Size
500 mL
Cat No.
554656
Alexa Fluor® 647 Rat IgG2a, κ Isotype Control RUO
Size
0.1 mg
Cat No.
557690
561612 Rev. 1
Antibody Details
429 (MVCAM.A)
The 429 monoclonal antibody specifically binds to both the long (~110 kDa) transmembrane-spanning form and the truncated (~47 kDa) GPI-linked form of vascular cell adhesion molecule-1 (VCAM-1, CD106). CD106 is constitutively expressed on bone marrow stromal cells, myeloid cells, and splenic dendritic cells. Its expression on endothelial cells is upregulated by inflammatory cytokines and in certain pathologic conditions. CD106 expression has also been detected on apoptotic thymocytes, splenocytes, and lymphoid cell lines. VCAM-1 is a counter-receptor for VLA-4 (α4β1 integrin) and LPAM-1 (α4β7 integrin), and the 429 antibody partially blocks VCAM-1-mediated binding functions. Source of the immunogen was the mouse preadipose cell line PA6.
561612 Rev. 1
Format Details
Alexa Fluor™ 647
Alexa Fluor™ 647 Dye is part of the BD red family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 653-nm and an emission maximum (Em Max) at 669-nm. Alexa Fluor 647 is designed to be excited by the Red laser (627-640 nm) and detected using an optical filter centered near 520-nm (e.g., a 660/20 nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
Alexa Fluor™ 647
Red 627-640 nm
653 nm
669 nm
561612 Rev.1
Citations & References
View product citations for antibody "561612" on CiteAb
Development References (6)
-
Baron JL, Reich EP, Visintin I, Janeway CA Jr. The pathogenesis of adoptive murine autoimmune diabetes requires an interaction between alpha 4-integrins and vascular cell adhesion molecule-1. J Clin Invest. 1994; 93(4):1700-1708. (Biology). View Reference
-
Bevilacqua MP. Endothelial-leukocyte adhesion molecules. Annu Rev Immunol. 1993; 11:767-804. (Biology). View Reference
-
Ishiyama N, Kitagawa M, Takahashi H, Kina T, Hirokawa K. Expression of VCAM-1 in lymphocytes during the process of apoptosis. Pathobiology. 1998; 66(6):274-283. (Biology). View Reference
-
Kinashi T, Springer TA. Adhesion molecules in hematopoietic cells. Blood Cells. 1994; 20(1):25-44. (Biology). View Reference
-
Kinashi T, St Pierre Y, Springer TA. Expression of glycophosphatidylinositol-anchored and -non-anchored isoforms of vascular cell adhesion molecule 1 in murine stromal and endothelial cells. J Leukoc Biol. 1995; 57(1):168-173. (Immunogen). View Reference
-
Koni PA, Joshi SK, Temann UA, Olson D, Burkly L, Flavell RA. Conditional vascular cell adhesion molecule 1 deletion in mice: impaired lymphocyte migration to bone marrow. J Exp Med. 2001; 193(6):741-754. (Biology). View Reference
561612 Rev. 1
Please refer to Support Documents for Quality Certificates
Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described
Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
