Overview
The BD® Single-Cell Multiplexing Kits (human and mouse) allow you to combine and simultaneously process up to 12 different samples on a BD Rhapsody™ Cartridge. The kits are designed to work with all BD Rhapsody™ Assays and include streamlined informatics tools integrated into the BD Rhapsody™ Bioinformatics Pipeline to automatically demultiplex sample tags and identify individual samples during data analyses.
Learn more from the BD® Single-Cell Multiplexing Kit brochure.
Find the right BD® Single-Cell Multiplexing Kit product for your single-cell multiomics study
BD® Hu Single-Cell Multiplexing Kit | BD® Ms Single-Cell Multiplexing Kit | Custom BD® Single-Cell Multiplexing Set | BD® Flex Single-Cell Multiplexing Kits (A, B, C, D) | |
Catalog No. | 633781 | 633793 | 626545 | 633849 633850 633851 633852 |
Reactivity | Human | Mouse | Mouse | Species agnostic |
Antibody | A universal human antibody | Anti-Mouse CD45, Clone 30-F11 | Anti-Mouse MHC-H2 Class I, clone M1/42 | Anti-R-Phycoerythrin (PE), Clone E31-1459 |
Sample Tagging Approach | Direct labeling | Direct labeling | Direct labeling | Two-step labeling |
Plexy | Up to 12-plex | Up to 12-plex | Up to 12-plex | Up to 24-plex |
FEATURES
The BD® Single-Cell Multiplexing Kits
- Can lower experimental cost by multiplexing up to 12 individual samples per BD Rhapsody™ Cartridge
- Includes optimized antibody tagging plus informatics tools, enabling you to experience true sample-to-answer assays
- Improves data quality by allowing you to identify and remove erroneous data from cell multiplets originating from separate samples through sample tagging
- Is tested to work across a broad range of human cells and tissues and mouse samples
The BD® Single-Cell Multiplexing Kit identifies cell multiplets yielding high-quality single-cell output
t-SNE analysis of single-cell gene expression profile with the BD® Single-Cell Multiplexing Kit and BD Rhapsody™ Human Immune Response Panel (right). A. Cells are colored by annotation from the Sample Tag determination algorithm within the BD Rhapsody™ Bioinformatics Pipeline. B. Blue cells highlight multiplets identified. C. t-SNE plot with multiplets and undetermined cells removed to obtain cleaner data for analysis.
The BD® Single-Cell Multiplexing Kit shows high sample multiplexing sensitivity and specificity

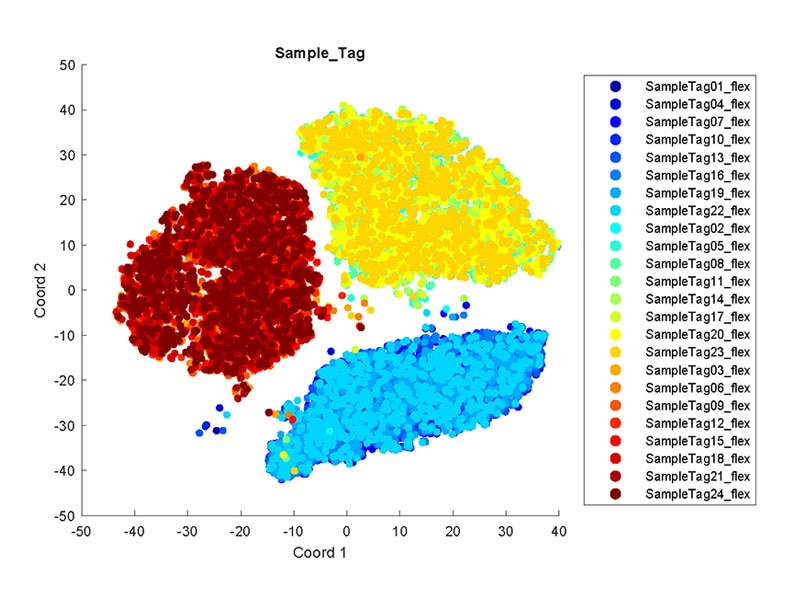

t-SNE analysis of single-cell gene expression profile with 24 Sample Tags in the BD® Flex Single-Cell Multiplexing Kits and BD Rhapsody™ Human Immune Response Panel. Cells are clustered based on 399 genes in the BD Rhapsody™ Human Immune Response Panel. The expected 3 phenotypically distinct populations clusters corresponding to Human B cell (Ramos, blue cells), T cell (Jurkat, yellow and green cells), and Monocytes (THP1, red and brown cells) are obtained. High sample multiplexing sensitivity (>99%) and specificity (>95%) are achieved with 24 Sample Tags.
The BD® Single-Cell Multiplexing Kit can be used to increase the number of cells loaded and analyzed while maintaining a low rate of unidentified multiplets
t-SNE visualization of cell clusters in the 12 Sample Tag experiment with the BD Rhapsody™ System using the Immune Response Panel (right). A. Annotation of major cell types identified by their markers, with putative multiplet clusters in between major clusters, many of which are identified using Sample Tags. B. Highlight of Sample Tag-identified multiplets: multiplets can be identified using Sample Tags even within one cell type cluster. C. Removal of multiplets identified by Sample Tags and their associated putative clusters yields cleaner single-cell RNA-seq data.
The BD® Single-Cell Multiplexing Kit can be used with single-cell suspension samples to identify multiplets
Visualization of Jurkat-only cluster (Sample Tags 4-6) from a 12 Sample Tag experiment (right). A. Multiplets are highlighted as blue points within the Jurkat cluster. Note that many Jurkat multiplets are located on the top-left of the cluster. B. Top-left putative cells identified in the Jurkat cluster are associated with higher detection of genes per cell. C. Extracting total mRNA molecules detected per putative cell revealed that cells identified as multiplets by Sample Tags have higher molecule detection, suggesting that they are bona fide multiplets.
- Brochures
- Data Sheets
- Technical Note
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
