A Bright, Clean Dye

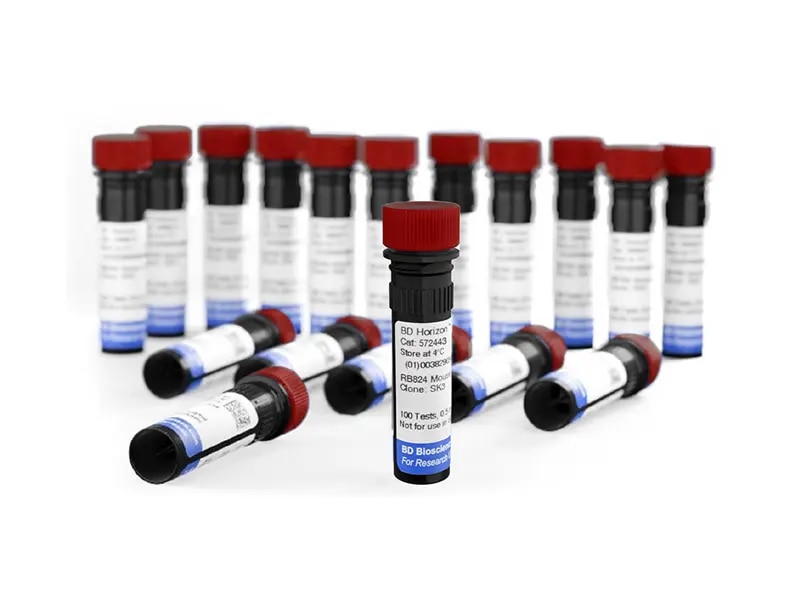

BD Horizon RealBlue™ 824 (RB824) Reagents leverage an innovative laser-specific fluorochrome, excited primarily by the 488-nm blue laser to offer:
- Minimal cross-laser excitation
- A bright fluorochrome to support the detection of low-expression surface and intracellular markers
- A near-infrared (NIR) detection position for the blue laser
Pair RB824 with Low-Moderate Antigen Expression Markers to Take Full Advantage of Your Blue Laser Line
| Format | Ex Max | Em Max | Spectral | Conventional | Relative Brightness | Spillover* (1 = low, 4 = high) | Alternative To |
|---|---|---|---|---|---|---|---|
| RB824 | 488 nm | 824 nm | ✓ | ✓ | 1 | PerCP/Fire™ 806, StarBright™ Blue 810 |
*Value may vary based on instrument configuration and settings. Spillover ranking is based on cross-laser excitation on five-laser spectral instruments and does not take into account spillover into adjacent detectors.
Performance
BD Horizon RealBlue™ 824 Reagents Provide Minimal Cross-laser Excitation Off the 561-nm Yellow-green Laser

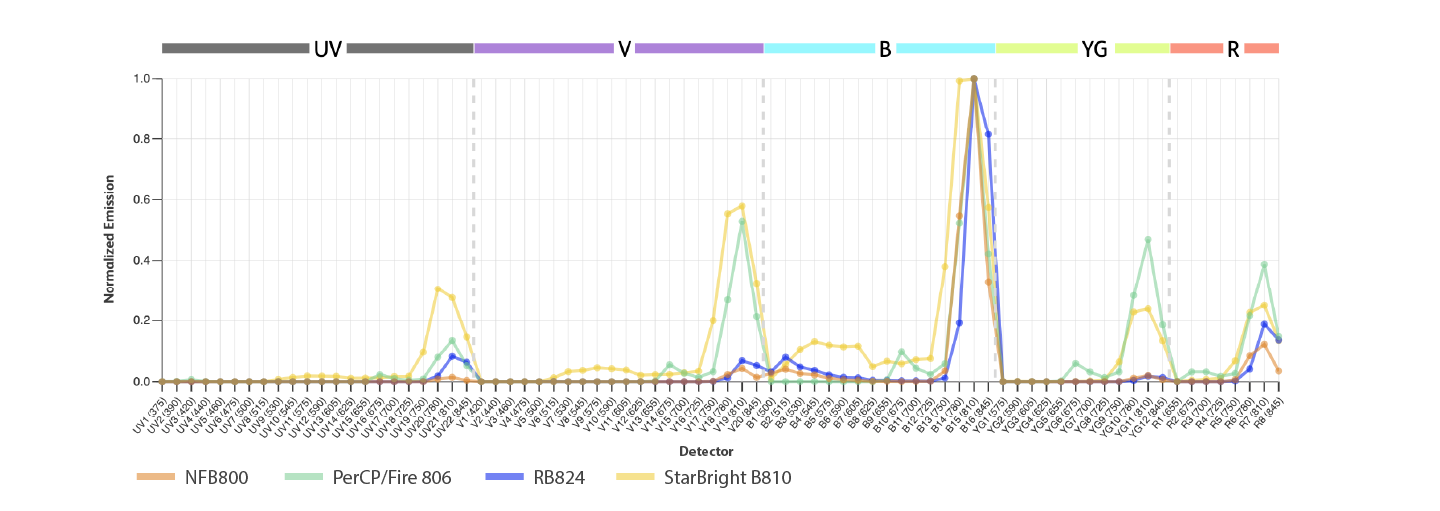

RB824 has minimal cross-laser excitation
Normalized emission profiles of CD4 (SK3) RB824, PerCP/Fire™ 806 and NovaFluor™ B800 (NFB800), and CD4 (RPA-T4) StarBright™ B810 (SBB810) fluorochromes. Data acquired on a BD FACSDiscover™ S8 Cell Sorter.

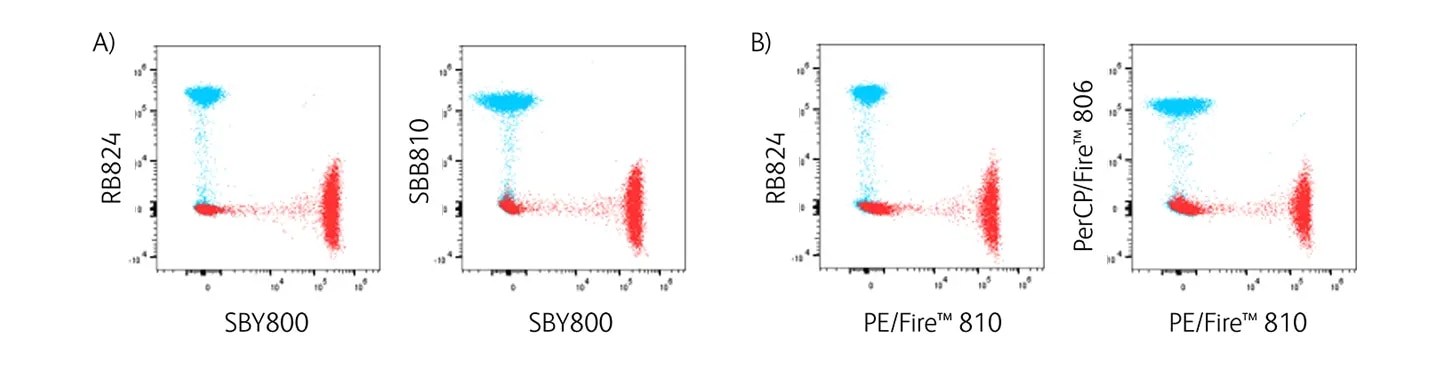

RB824 has less spread into yellow-green laser dyes compared to PerCP/Fire™ 806 and StarBright™ Blue 810
Whole blood was stained with CD4 RB824, StarBright™ Blue 810 (SBB810), PerCP/Fire™ 806, StarBright™ Yellow 800 (SBY800) or PE/Fire™ 810 and lysed with BD Pharm Lyse™ Lysing Buffer. Shown are single color overlays.
A) RB824 or SBB810 with SBY800.
B) RB824 or PerCP/Fire™ 806 with PE/Fire™ 810. Samples were acquired on a Cytek™ Aurora Spectral Analyzer and unmixed using FlowJo™ Software.
Applications

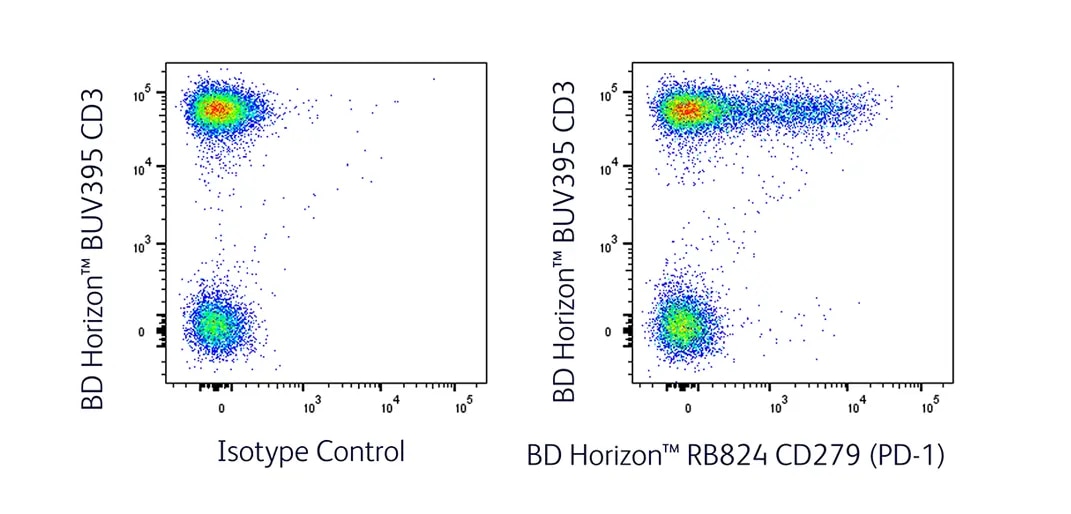

Whole blood was stained with CD279 RB824 and CD3 BUV395 and lysed with BD Pharm Lyse™ Lysing Buffer. Samples were acquired on a BD FACSymphony™ A5 SE Cell Analyzer and spectrally unmixed with FlowJo™ Software.

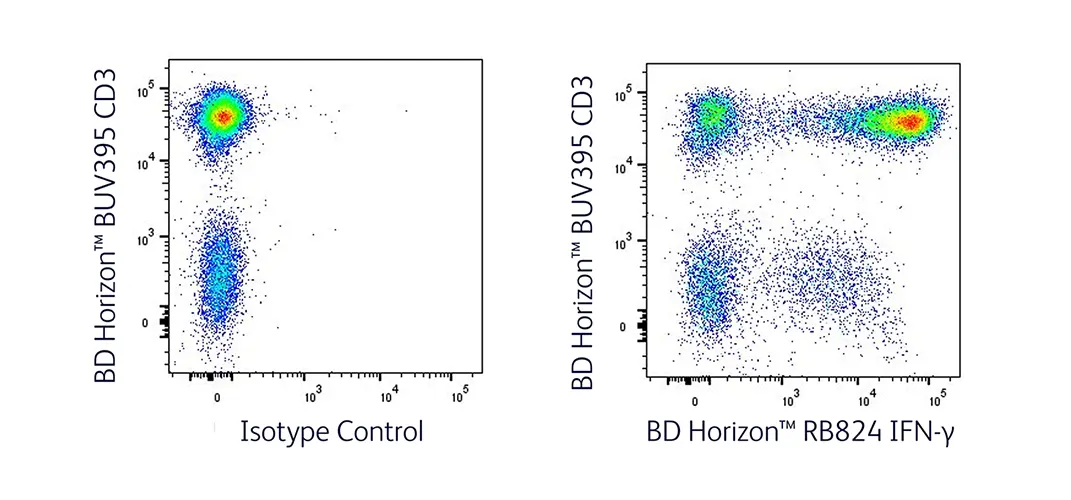

Stimulated PBMCs were stained with IFN-γ RB824 and CD3 BUV395. Samples were acquired on a BD FACSymphony™ A5 SE Cell Analyzer and spectrally unmixed with FlowJo™ Software.

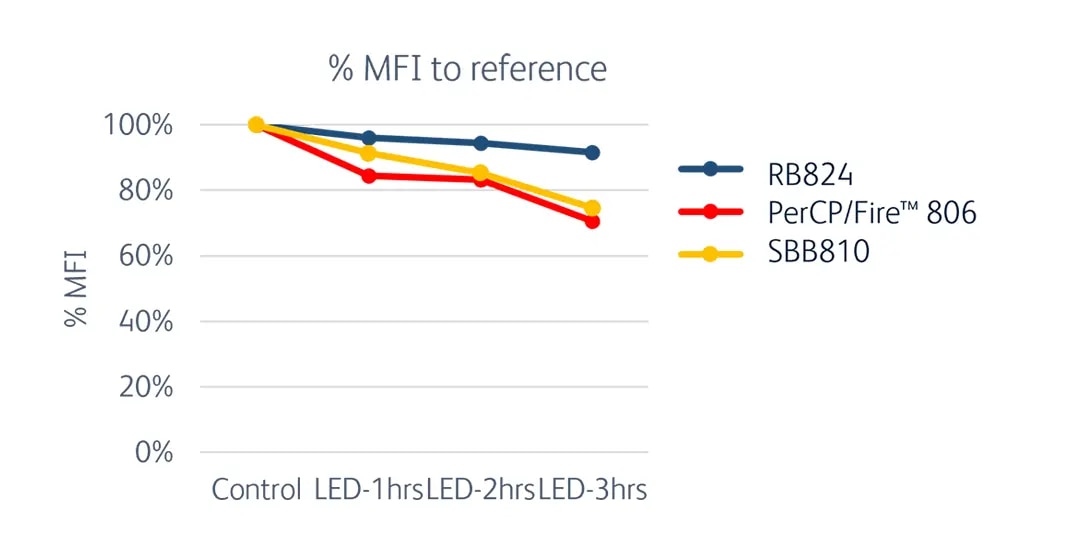

Human CD4 RB824, PerCP/Fire™ 806 or StarBright™ Blue 810 Reagents were exposed to 600 lux LED light for 0, 1, 2 or 3 hours and then used to stain whole blood. Blood was lysed with BD FACS™ Lysing Solution. Samples were acquired on a Cytek™ Aurora Spectral Analyzer and analyzed with FlowJo™ Software.

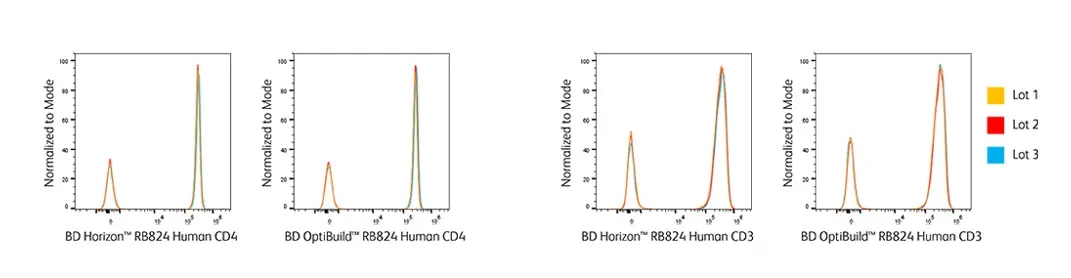

BD Horizon™ RB824 Reagents offer stable performance with lot-to-lot consistency across made-to-stock reagents and BD OptiBuild™ On-Demand Reagents. Human whole blood was stained with human CD3 (UCHT1, left) or CD4 (SK3, right) RB824 using three different dye lots, followed by lysis with BD Pharm Lyse™ Lysing Buffer. All specificities were run on a Cytek™ Aurora Spectral Analyzer. CD3 and CD4 were tested in separate experiments.
Multicolor Flow Cytometry
BD Horizon™ RB824 Reagent Resolves Well in a 24-color T Cell Activation Panel Acquired on the BD FACSDiscover™ A8 Cell Analyzer

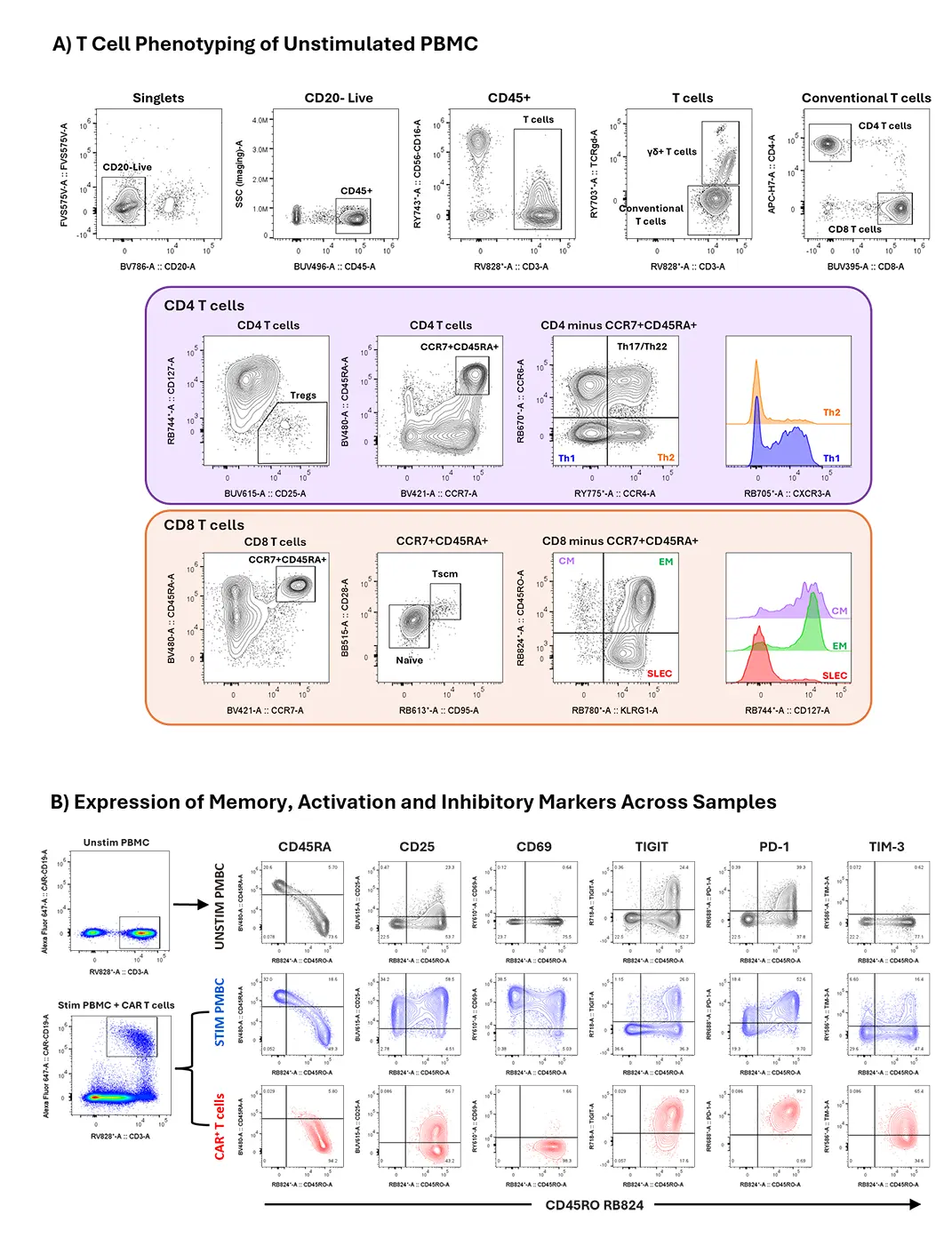

Gating scheme of T cell subsets
PBMCs were isolated from a healthy donor and divided into two conditions: unstimulated and stimulated with CytoStim™ (Miltenyi Biotec). After 24 hours, both samples were collected and labeled with CD45. CAR T cells were spiked into the stimulated sample. Samples were then stained with the remaining 23 markers of the 24-color T cell activation panel incorporating BD Horizon RealViolet™ 828 (RV828) and RB824, along with a BD CD19 CAR Detection Reagent, and analyzed on the BD FACSDiscover™ A8 Cell Analyzer.
A) Gating strategy for T cell phenotyping of unstimulated PBMC.
B) Pseudocolor plots show detection of CD19 CAR+ T cells in the stimulated PBMC sample mixed with CAR T cells. Contour plots show expression of memory, activation and inhibitory markers in unstimulated PBMC, stimulated PBMC and CD19 CAR+ T cells.
Fluorochrome marker assignment for a 24-color human T cell activation panel
| Specificity | Clone | Fluorochrome | |
|---|---|---|---|
| UV 349 nm | CD8 | RPA-T8 | |
CD45 | HI30 | ||
CD25 | 2A3 | ||
| Violet 405 nm | CCR7 | 2-L1-A | |
CD45RA | HI100 | ||
Viability | N/A | ||
CD20 | 2H7 | ||
CD3 | UCHT1 | ||
| Blue 488 nm | CD28 | CD28.2 | |
CD95 | DX2 | ||
CCR6 | 11A9 | ||
CXCR3 | 1C6/CXCR3 | ||
CD127 | HIL-7R-M21 | ||
KLRG1 | Z7-205.rMAb | ||
CD45RO | UCHL1 | ||
| Yellow-Green 561 nm | TIM-3 | 7D3 | |
CD69 | FN50 | ||
TCRγδ | 11F2 | ||
CD56 | B159 | ||
CD16 | 3G8 | ||
CCR4 | 1G1 | ||
| Red 637 nm | CD19 | N/A | |
PD-1 | EH12.1 | ||
TIGIT | TgMab-2 | ||
CD4 | RPA-T4 |
Fluorochrome marker assignment for a 24-color spectral flow cytometry panel acquired on the BD FACSDiscover™ A8 Cell Analyzer.
Buffer Compatibility
BD Horizon™ RB824 Reagents Are Compatible with a Broad Range of Fixation and Permeabilization Systems
| Buffers | Results |
| BD FACS™ Lysing Solution and BD Pharm Lyse™ Lysing Buffer | Compatible |
| CellBlox™ Blocking Buffer | Compatible |
| BD Cytofix™ Fixation Buffer | Stable at least 24 hours |
| 1% PFA | Stable at least 24 hours |
| BD Cytofix/Cytoperm™ Fixation and Permeabilization Solution | Compatible with antibody staining before and after fixation |
| BD FACS™ Permeabilizing Solution 2 | Compatible with antibody staining before and after fixation |
| BD Phosflow™ Perm Buffer III | Compatible with antibody staining before and after fixation |
| EDTA and Heparin | Compatible |
| BD Horizon™ Brilliant Stain Buffer (BSB) | Compatible |
-
