PE Rat Anti-Mouse CD106

BD Pharmingen™ PE Rat Anti-Mouse CD106

Name: PE Rat Anti-Mouse CD106
Brand: BD Pharmingen™
SKU: 561613

Clone 429 (MVCAM.A)

(RUO)

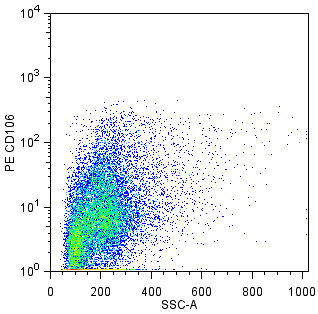

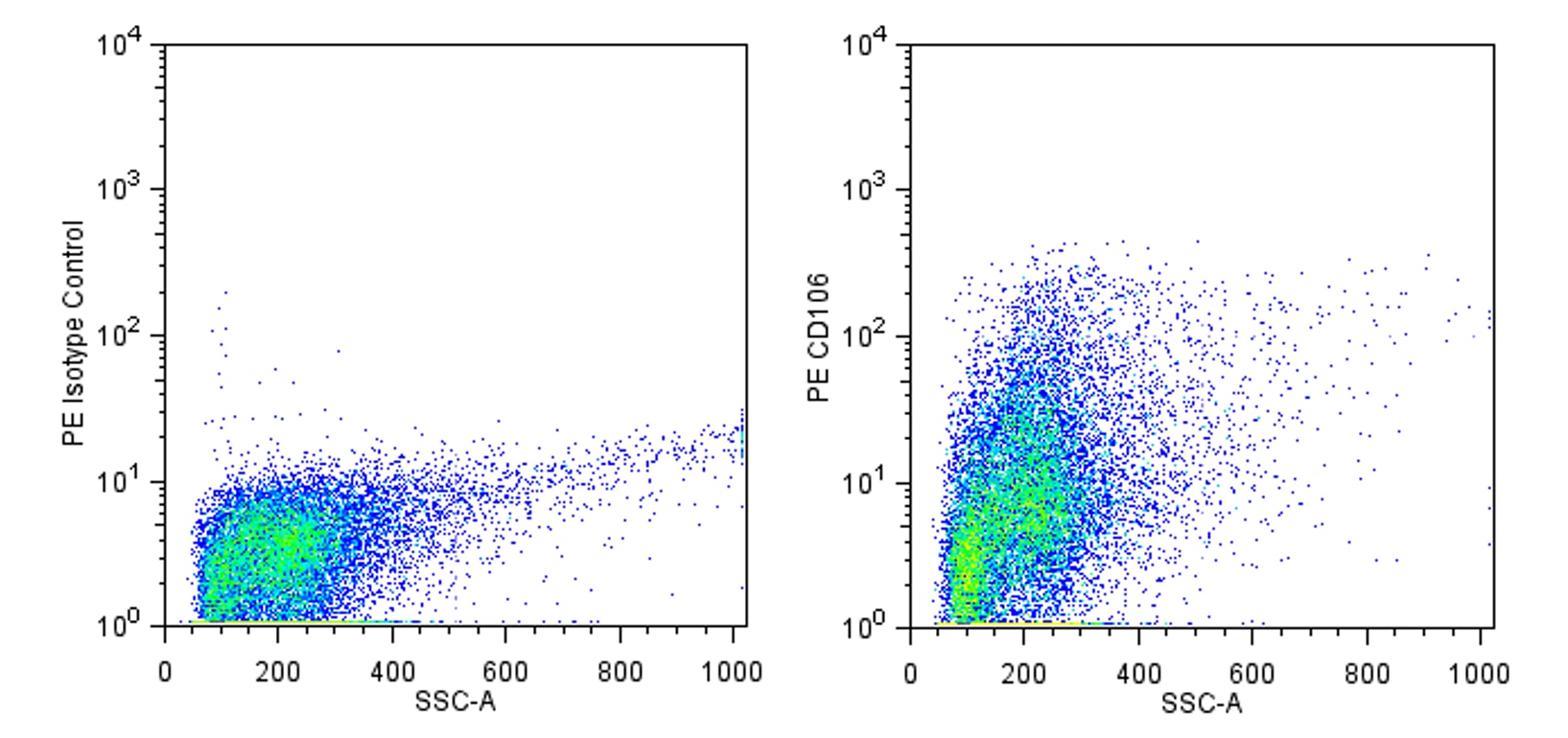

Flow cytometric analysis of CD106 expression on mouse bone marrow cells. BALB/c mouse bone marrow cells were stained either with a PE Rat IgG2a, κ Isotype Control (Cat No. 553930, Left Panel) or with PE Rat Anti-Mouse CD106 antibody (Cat No. 561613, Right Panel). Flow cytometric dot plots showing the correlated expression of CD106 (or Ig isotype control staining) versus side light-scatter were derived from total viable cells from bone marrow. Flow cytometry was performed using a BD™ LSR II Flow Cytometry System.

Spectrum Viewer

Protocol Library

Scientific Resources

Product Details

Brand: BD Pharmingen™

Alternative Name: Vcam-1; Vascular cell adhesion molecule 1; Vascular cell adhesion protein 1

Reactivity: Mouse (QC Testing)

Isotype: Rat LEW, also known as Lewis IgG2a, κ

Immunogen: Mouse preadipose cell line PA6

Application: Flow cytometry (Routinely Tested)

Concentration: 0.2 mg/ml

Entrez Gene ID: 22329

RRID: AB_10897990

Storage Buffer: Aqueous buffered solution containing ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with R-PE under optimum conditions, and unconjugated antibody and free PE were removed.

Product Notices

Since applications vary, each investigator should titrate the reagent to obtain optimal results.
An isotype control should be used at the same concentration as the antibody of interest.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.

Companion Products

Stain Buffer (FBS) RUO

Size 500 mL Cat No. 554656

PE Rat IgG2a, κ Isotype Control RUO

Size 0.1 mg Cat No. 553930

561613 Rev. 1

Antibody Details

429 (MVCAM.A)

The 429 monoclonal antibody specifically binds to both the long (~110 kDa) transmembrane-spanning form and the truncated (~47 kDa) GPI-linked form of vascular cell adhesion molecule-1 (VCAM-1, CD106). CD106 is constitutively expressed on bone marrow stromal cells, myeloid cells, and splenic dendritic cells. Its expression on endothelial cells is upregulated by inflammatory cytokines and in certain pathologic conditions. CD106 expression has also been detected on apoptotic thymocytes, splenocytes, and lymphoid cell lines. VCAM-1 is a counter-receptor for VLA-4 (α4β1 integrin) and LPAM-1 (α4β7 integrin), and the 429 antibody partially blocks VCAM-1-mediated binding functions. Source of the immunogen was the mouse preadipose cell line PA6.

561613 Rev. 1

Format Details

R-Phycoerythrin (PE), is part of the BD family of Phycobiliprotein dyes. This fluorochrome is a multimeric fluorescent phycobiliprotein with excitation maximum (Ex Max) of 496 nm and 566 nm and an emission maximum (Em Max) at 576 nm. PE is designed to be excited by the Blue (488 nm), Green (532 nm) and Yellow-Green (561 nm) lasers and detected using an optical filter centered near 575 nm (e.g., a 575/26-nm bandpass filter). As PE is excited by multiple lasers, this can result in cross-laser excitation and fluorescence spillover on instruments with various combinations of Blue, Green, and Yellow-Green lasers. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

Format: PE

Excitation Source: Yellow-Green 488 nm, 532 nm, 561 nm

Excitation Max: 496 nm, 566 nm

Emission Max: 576 nm

561613 Rev.1

Citations & References

View product citations for antibody "561613" on CiteAb

Development References (6)

Baron JL, Reich EP, Visintin I, Janeway CA Jr. The pathogenesis of adoptive murine autoimmune diabetes requires an interaction between alpha 4-integrins and vascular cell adhesion molecule-1. J Clin Invest. 1994; 93(4):1700-1708. (Biology). View Reference
Bevilacqua MP. Endothelial-leukocyte adhesion molecules. Annu Rev Immunol. 1993; 11:767-804. (Biology). View Reference
Ishiyama N, Kitagawa M, Takahashi H, Kina T, Hirokawa K. Expression of VCAM-1 in lymphocytes during the process of apoptosis. Pathobiology. 1998; 66(6):274-283. (Biology). View Reference
Kinashi T, Springer TA. Adhesion molecules in hematopoietic cells. Blood Cells. 1994; 20(1):25-44. (Biology). View Reference
Kinashi T, St Pierre Y, Springer TA. Expression of glycophosphatidylinositol-anchored and -non-anchored isoforms of vascular cell adhesion molecule 1 in murine stromal and endothelial cells. J Leukoc Biol. 1995; 57(1):168-173. (Immunogen). View Reference
Koni PA, Joshi SK, Temann UA, Olson D, Burkly L, Flavell RA. Conditional vascular cell adhesion molecule 1 deletion in mice: impaired lymphocyte migration to bone marrow. J Exp Med. 2001; 193(6):741-754. (Biology). View Reference

View All (6)

561613 Rev. 1

Please refer to Support Documents for Quality Certificates

Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described

Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
