Alexa Fluor® 647 Mouse Anti-Btk (pY223)/Itk (pY180)
Alexa Fluor® 647 Mouse Anti-Btk (pY223)/Itk (pY180)

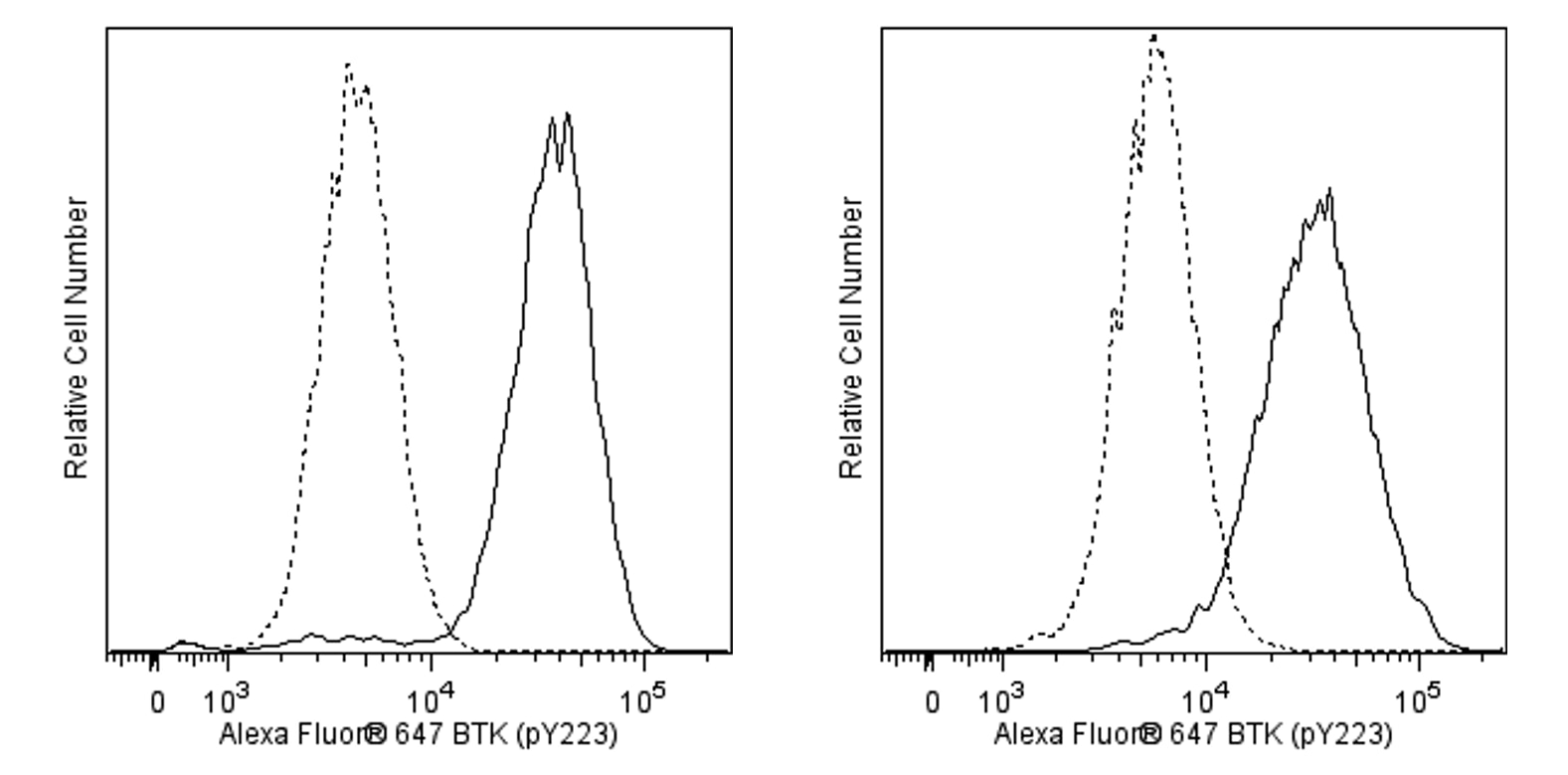

Analyses of BTK (pY223)/ITK (pY180) expression by Human and Mouse Cells.        Left Panel - Flow cytometric analysis of BTK (pY223) expressed by human Ramos cells. Serum-starved cells from the human Ramos (Burkitt's lymphoma, ATCC CRL-1596) cell line were either not stimulated (dashed line histogram) or stimulated (solid line histogram) with Goat F(ab')2 Anti-Human IgM (Southern Biotech, Cat. No. 2022-14) at 37°C for 3 minutes. Cells were fixed in BD Cytofix™ Buffer (Cat. No. 554655; 37°C for 10 min) and permeabilized in BD Phosflow™ Perm Buffer III (Cat. No. 558050) on ice (30 min). Cells were then stained with BD Phosflow™ Alexa Fluor® 647 Mouse Anti-Btk (pY223)/Itk (pY180) antibody (Cat. No. 564846). Histograms showing BTK (pY223) expression were derived from gated events with the forward and side light-scatter characteristics of intact cells using a BD™ LSR II Flow Cytometer System.        Right Panel - Flow cytometric analysis of BTK (pY223) expressed by mouse A20 cells. Cells from the mouse A20 (B lymphoma, ATCC TIB-208) cell line were either not stimulated (dashed line histogram) or were stimulated (solid line histogram) with Rabbit Anti-Mouse IgM (H+L) (Jackson, Cat. No. 315-005-003) at 37˚C for 3 minutes. The cells were fixed, permeabilized, stained, and analyzed for BTK (pY223) expression by flow cytometry as described above.
Analyses of BTK (pY223)/ITK (pY180) expression by Human and Mouse Cells.        Left Panel - Flow cytometric analysis of BTK (pY223) expressed by human Ramos cells. Serum-starved cells from the human Ramos (Burkitt's lymphoma, ATCC CRL-1596) cell line were either not stimulated (dashed line histogram) or stimulated (solid line histogram) with Goat F(ab')2 Anti-Human IgM (Southern Biotech, Cat. No. 2022-14) at 37°C for 3 minutes. Cells were fixed in BD Cytofix™ Buffer (Cat. No. 554655; 37°C for 10 min) and permeabilized in BD Phosflow™ Perm Buffer III (Cat. No. 558050) on ice (30 min). Cells were then stained with BD Phosflow™ Alexa Fluor® 647 Mouse Anti-Btk (pY223)/Itk (pY180) antibody (Cat. No. 564846). Histograms showing BTK (pY223) expression were derived from gated events with the forward and side light-scatter characteristics of intact cells using a BD™ LSR II Flow Cytometer System.        Right Panel - Flow cytometric analysis of BTK (pY223) expressed by mouse A20 cells. Cells from the mouse A20 (B lymphoma, ATCC TIB-208) cell line were either not stimulated (dashed line histogram) or were stimulated (solid line histogram) with Rabbit Anti-Mouse IgM (H+L) (Jackson, Cat. No. 315-005-003) at 37˚C for 3 minutes. The cells were fixed, permeabilized, stained, and analyzed for BTK (pY223) expression by flow cytometry as described above.
Product Details
Down Arrow Up Arrow


BD Phosflow™
Btk; Bruton tyrosine kinase; AGMX1; AT; ATK; BPK; IMD1; PSCTK1; XLA; Itk
Human (QC Testing), Mouse (Tested in Development)
Mouse IgG1, κ
Phosphorylated Human BTK Peptide
Intracellular staining (flow cytometry) (Routinely Tested)
5 µl
AB_2721028
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO


Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to Alexa Fluor® 647 under optimum conditions, and unreacted Alexa Fluor® 647 was removed.

Product Notices

  1. This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
  2. An isotype control should be used at the same concentration as the antibody of interest.
  3. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  4. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
  5. Alexa Fluor® is a registered trademark of Molecular Probes, Inc., Eugene, OR.
  6. The Alexa Fluor®, Pacific Blue™, and Cascade Blue® dye antibody conjugates in this product are sold under license from Molecular Probes, Inc. for research use only, excluding use in combination with microarrays, or as analyte specific reagents. The Alexa Fluor® dyes (except for Alexa Fluor® 430), Pacific Blue™ dye, and Cascade Blue® dye are covered by pending and issued patents.
  7. Alexa Fluor® 647 fluorochrome emission is collected at the same instrument settings as for allophycocyanin (APC).
  8. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  9. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
564846 Rev. 1
Antibody Details
Down Arrow Up Arrow
N35-86

The N35-86 reacts with human and mouse Bruton's tyrosine kinase that is phosphorylated at the tyrosine 223 position, Btk (pY223). Btk is also known as agammaglobulinaemia tyrosine kinase (ATK) and B-cell progenitor kinase (BPK). Btk is a nonreceptor tyrosine kinase whose function is critical for proper B cell development and signaling.  It is a member of the Tec family of kinases which includes Tec and Itk.  In addition to an N-terminal pleckstrin homology (PH) domain, the Tec proteins contain Src homology domains 2 and 3 (SH2 and SH3) and a stretch of 60-80 amino acids between the PH and SH3 domains termed the Tec homology domain.  The activity of Btk is regulated by Src-mediated phosphorylation of the kinase domain at tyrosine 551.  This event induces Btk kinase activity and subsequent autophosphorylation at tyrosine 223 in the SH3 domain.  Phosphorylated Btk then associates with the cell membrane via the interaction of the PH domain with phosphatidylinositol 3, 4, 5-triphosphate.  The PH domain is essential for proper activation and function of Btk.  A mutation in the PH domain results in Xid, murine X-linked immunodeficiency, and human X-linked agammaglobulinemia. The orthologous phosphorylation site for rat BTK is Y224. Crossreactivity with human Itk (pY180) was confirmed by immunoprecipitation and Western blot analyses using the N35-86 antibody.

564846 Rev. 1
Format Details
Down Arrow Up Arrow
Alexa Fluor™ 647
Alexa Fluor™ 647 Dye is part of the BD red family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 653-nm and an emission maximum (Em Max) at 669-nm. Alexa Fluor 647 is designed to be excited by the Red laser (627-640 nm) and detected using an optical filter centered near 520-nm (e.g., a 660/20 nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
Alexa Fluor™ 647
Red 627-640 nm
653 nm
669 nm
564846 Rev.1
Citations & References
Down Arrow Up Arrow

Development References (5)

  1. Desiderio S. Role of Btk in B cell development and signaling. Curr Opin Immunol. 9(4):534-540. (Biology). View Reference
  2. Mahajan S, Fargnoli J, Burkhardt AL, Kut SA, Saouaf SJ, Bolen JB. Src family protein tyrosine kinases induce autoactivation of Bruton's tyrosine kinase. Mol Cell Biol. 1995; 15:5304-5311. (Biology). View Reference
  3. Marshall AJ, Niito H, Yun TJ, Clark EA. Regulation of B-cell activation and differentiation by the phosphatidylinositol 3-kinase and phospholipase Cγ pathway. Immunol Rev. 2000; 176:30-46. (Biology). View Reference
  4. Puig de la Bellacasa R, Roue G, Balsas P, et al. 4-Amino-2-arylamino-6-(2,6-dichlorophenyl)-pyrido[2,3-d]pyrimidin-7-(8H)-ones as BCR kinase inhibitors for B lymphoid malignancies. Eur J Med Chem. 2014; 86:664-675. (Clone-specific: Flow cytometry). View Reference
  5. Rawlings DJ, Scharenberg AM, Park H, et al. Activation of BTK by a phosphorylation mechanism initiated by SRC family kinases. Science. 1996; 271:822-825. (Biology). View Reference
View All (5) View Less
564846 Rev. 1
