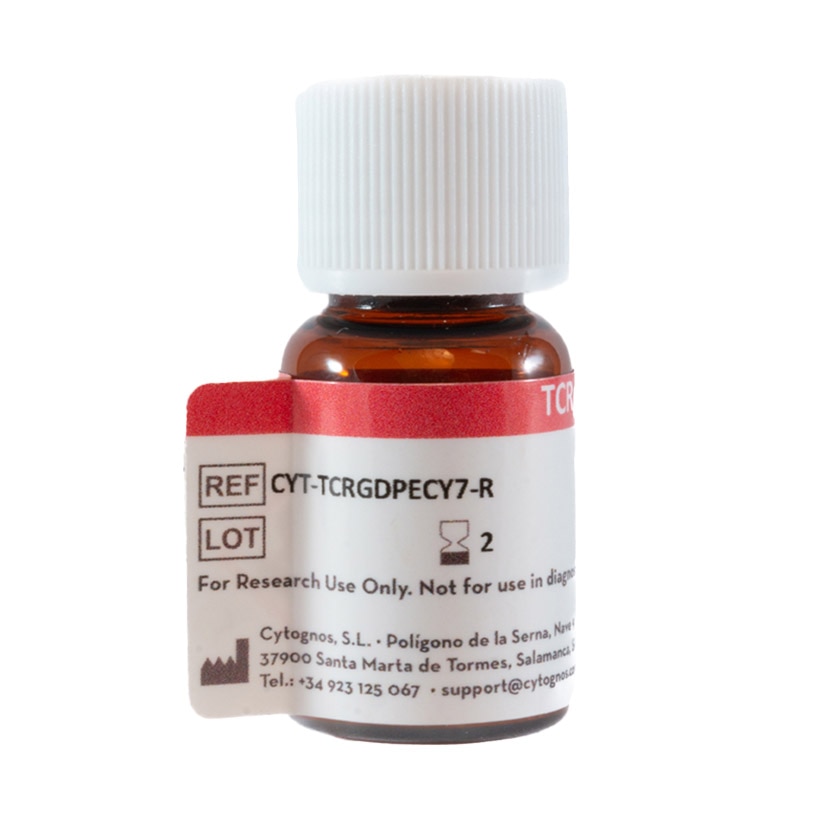

      TCRγδ-PE-Cyanine7
      Product Details
      Down Arrow Up Arrow


      BD Cytognos™
      TCRgd; γδ TCR; TRG@/TRD@; TCRG/TCRD; TCR gamma delta
      Human
      Mouse BALB/c IgG1
      Sepharose® bead/CD3/γ/δ TCR complex
      3 µl/test
      6964, 6965
      Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
      CE_IVD


      cyt-tcrgdpecy7 Rev. 1
      Antibody Details
      Down Arrow Up Arrow
      11F2

      The Anti–TCRγ/δ-1 antibody, clone 11F2, is derived from hybridization of mouse Sp2/0 myeloma cells with spleen cells from BALB/c mice immunized with a Sepharose®  bead/CD3/γ/δ TCR complex.

      The Anti–TCRγ/δ-1 antibody reacts with a framework epitope of the γ/δ T-cell antigen receptor (TCR). The γ/δ TCR is a heterodimeric glycoprotein that is noncovalently associated with the CD3 antigen. The γ and δ TCR chains are composed of constant and variable regions, each encoded by distinct gene segments. The γ chain forms either disulfide-linked or non–disulfide-linked heterodimers with the δ-subunit.

      cyt-tcrgdpecy7 Rev. 1
      Format Details
      Down Arrow Up Arrow
      PE-Cy7
      PE-Cy7 dye is a part of the BD PE family of dyes. This tandem fluorochrome is comprised of a R-Phycoerythrin (PE) donor that has excitation maxima (Ex Max) of 496-nm and 566-nm and an acceptor dye, Cy™7, with an emission maximum (Em Max) at 781-nm. PE can be excited by the Blue (488-nm), Green (532-nm) and yellow-green (561-nm) lasers and detected using an optical filter centered near 781 nm (e.g., a 760/60-nm bandpass filter). The donor dye can be excited by the Blue (488-nm), Green (532-nm) and yellow-green (561-nm) lasers and the acceptor dye can be excited by the Red (627–640-nm) laser resulting in cross-laser excitation and fluorescence spillover. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
      altImg
      PE-Cy7
      Yellow-Green 488 nm, 532 nm, 561 nm
      496 nm, 566 nm
      781 nm
      cyt-tcrgdpecy7 Rev.1
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "cyt-tcrgdpecy7" on CiteAb
      No Citations Found

      No Citations Are Available for this Product

      cyt-tcrgdpecy7 Rev. 1

      Please refer to Support Documents for Quality Certificates



      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described



      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.

      Documents are subject to revision without notice. Please verify you have the correct revision of the document, and always refer back to BD's eIFU website for the latest and most up to date information.
