BD Pharmingen™ Alexa Fluor® 647 Rat anti-Mouse CD282
Clone 6C2 (RUO)

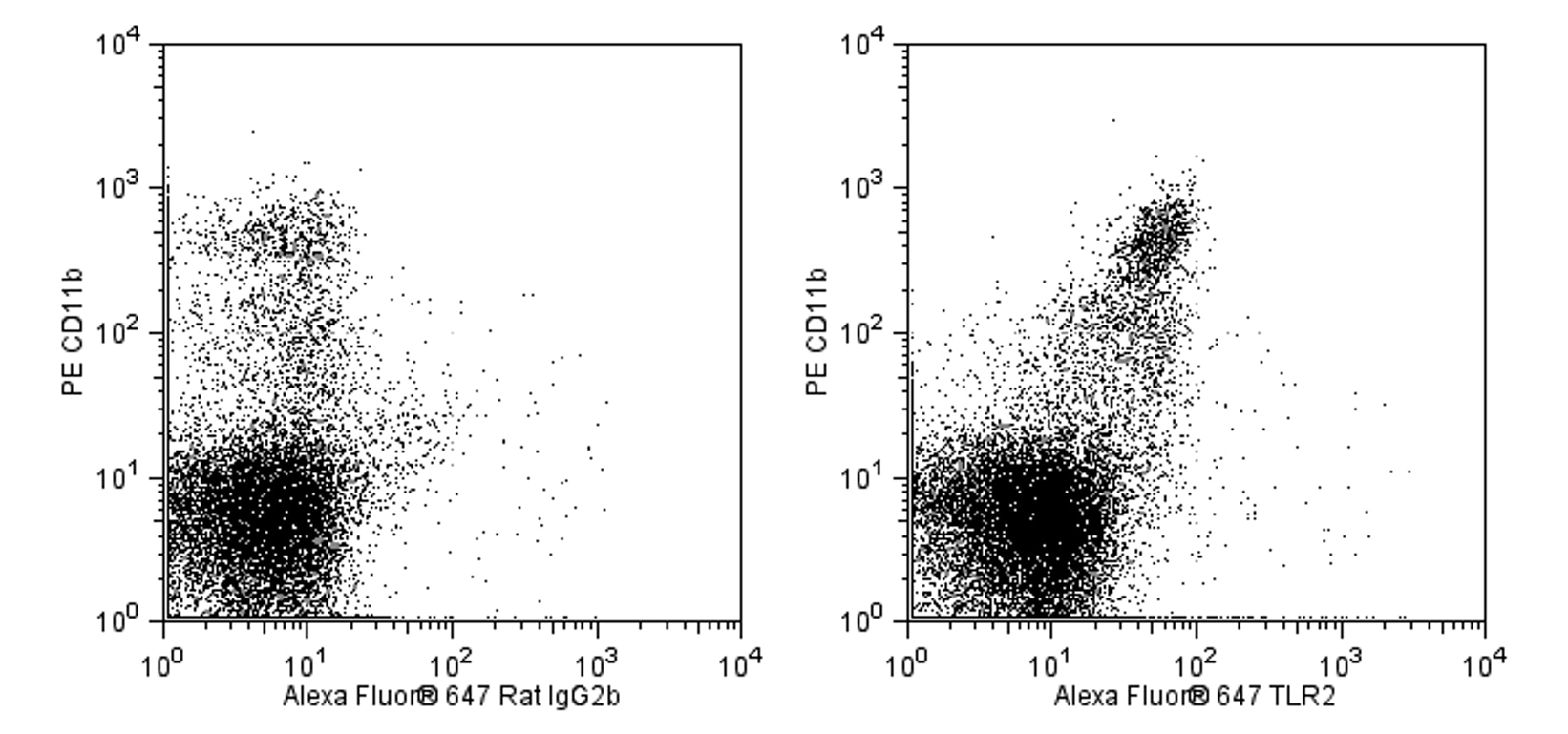

Multicolor flow cytometric analysis of mouse TLR2 expression in spleen cells. BALB/c splenocytes were stained with PE Rat Anti-Mouse CD11b (Cat. No. 553311/557397/561689) and either Alexa Fluor® 647 Rat IgG2b, κ Isotype Control (Cat. No. 557691; Left Panel) or Alexa Fluor® 647 Rat Anti-Mouse TLR2 (Cat. No. 562625; Right Panel). Two color flow cytometric dot blots showing the correlated expression pattern of TLR2 (or Ig Isotype control staining) and CD11b were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Multicolor flow cytometric analysis of mouse TLR2 expression in spleen cells. BALB/c splenocytes were stained with PE Rat Anti-Mouse CD11b (Cat. No. 553311/557397/561689) and either Alexa Fluor® 647 Rat IgG2b, κ Isotype Control (Cat. No. 557691; Left Panel) or Alexa Fluor® 647 Rat Anti-Mouse TLR2 (Cat. No. 562625; Right Panel). Two color flow cytometric dot blots showing the correlated expression pattern of TLR2 (or Ig Isotype control staining) and CD11b were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Product Details
BD Pharmingen™
TLR2; Tlr2; Toll-like receptor 2; Ly105
Mouse (QC Testing)
Rat IgG2b, κ
Mouse TLR2 Transfected Cell Line
Flow cytometry (Routinely Tested)
0.2 mg/ml
24088
AB_2734763
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO
Preparation And Storage
Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to Alexa Fluor® 647 under optimum conditions, and unreacted Alexa Fluor® 647 was removed.
Product Notices
- Since applications vary, each investigator should titrate the reagent to obtain optimal results.
- An isotype control should be used at the same concentration as the antibody of interest.
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
- Alexa Fluor® 647 fluorochrome emission is collected at the same instrument settings as for allophycocyanin (APC).
- Alexa Fluor® is a registered trademark of Molecular Probes, Inc., Eugene, OR.
- The Alexa Fluor®, Pacific Blue™, and Cascade Blue® dye antibody conjugates in this product are sold under license from Molecular Probes, Inc. for research use only, excluding use in combination with microarrays, or as analyte specific reagents. The Alexa Fluor® dyes (except for Alexa Fluor® 430), Pacific Blue™ dye, and Cascade Blue® dye are covered by pending and issued patents.
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- Source of all serum proteins is from USDA inspected abattoirs located in the United States.
Companion Products
Stain Buffer (FBS) RUO
Size
500 mL
Cat No.
554656
Alexa Fluor® 647 Rat IgG2b, κ Isotype Control RUO
Size
0.1 mg
Cat No.
557691
PE Rat Anti-CD11b RUO
Size
0.2 mg
Cat No.
553311
PE Rat Anti-CD11b RUO
Size
0.1 mg
Cat No.
557397
PE Rat Anti-CD11b RUO
Size
25 µg
Cat No.
561689
562625 Rev. 1
Antibody Details
6C2
The 6C2 monoclonal antibody specifically binds to the mouse Toll like receptor 2 (TLR2) that is also known as CD282. CD282 is a type 1 transmembrane glycoprotein and a TLR family member. It is expressed on the surface of monocytes, macrophages, dentritic cells, granulocytes, endothelial and epithelial cells. This pattern recognition receptor is important for sensing and transducing signals in response to microbial cell wall components including lipoproteins, peptidoglycans and lipoteichoic acid. CD282 signals through intracellular MYD88 and TRAF6 leading to NF-kappa-B activation and the production of cytokines and inflammatory mediators by responding cells. TLR2 plays a major role in mediating inflammatory and innate immune responses.
562625 Rev. 1
Format Details
Alexa Fluor™ 647
Alexa Fluor™ 647 Dye is part of the BD red family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 653-nm and an emission maximum (Em Max) at 669-nm. Alexa Fluor 647 is designed to be excited by the Red laser (627-640 nm) and detected using an optical filter centered near 520-nm (e.g., a 660/20 nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
Alexa Fluor™ 647
Red 627-640 nm
653 nm
669 nm
562625 Rev.1
Citations & References
View product citations for antibody "562625" on CiteAb
Development References (3)
-
Heine H, Kirschning CJ, Lien E, Monks BG, Rothe M, Golenbock DT. Cutting edge: cells that carry A null allele for toll-like receptor 2 are capable of responding to endotoxin. J Immunol. 1999; 162(12):6971-6975. (Biology). View Reference
-
Matsuguchi T, Takagi K, Musikacharoen T, Yoshikai Y. Gene expressions of lipopolysaccharide receptors, toll-like receptors 2 and 4, are differently regulated in mouse T lymphocytes. Blood. 2000; 95(4):1378-1385. (Biology). View Reference
-
Underhill DM, Ozinsky A, Hajjar AM, et al. The Toll-like receptor 2 is recruited to macrophage phagosomes and discriminates between pathogens. Nature. 1999; 401(6755):811-815. (Biology). View Reference
562625 Rev. 1
Please refer to Support Documents for Quality Certificates
Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described
Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
