BD Phosflow™ Alexa Fluor® 488 Mouse anti-IRF-7
Clone K40-321 (RUO)

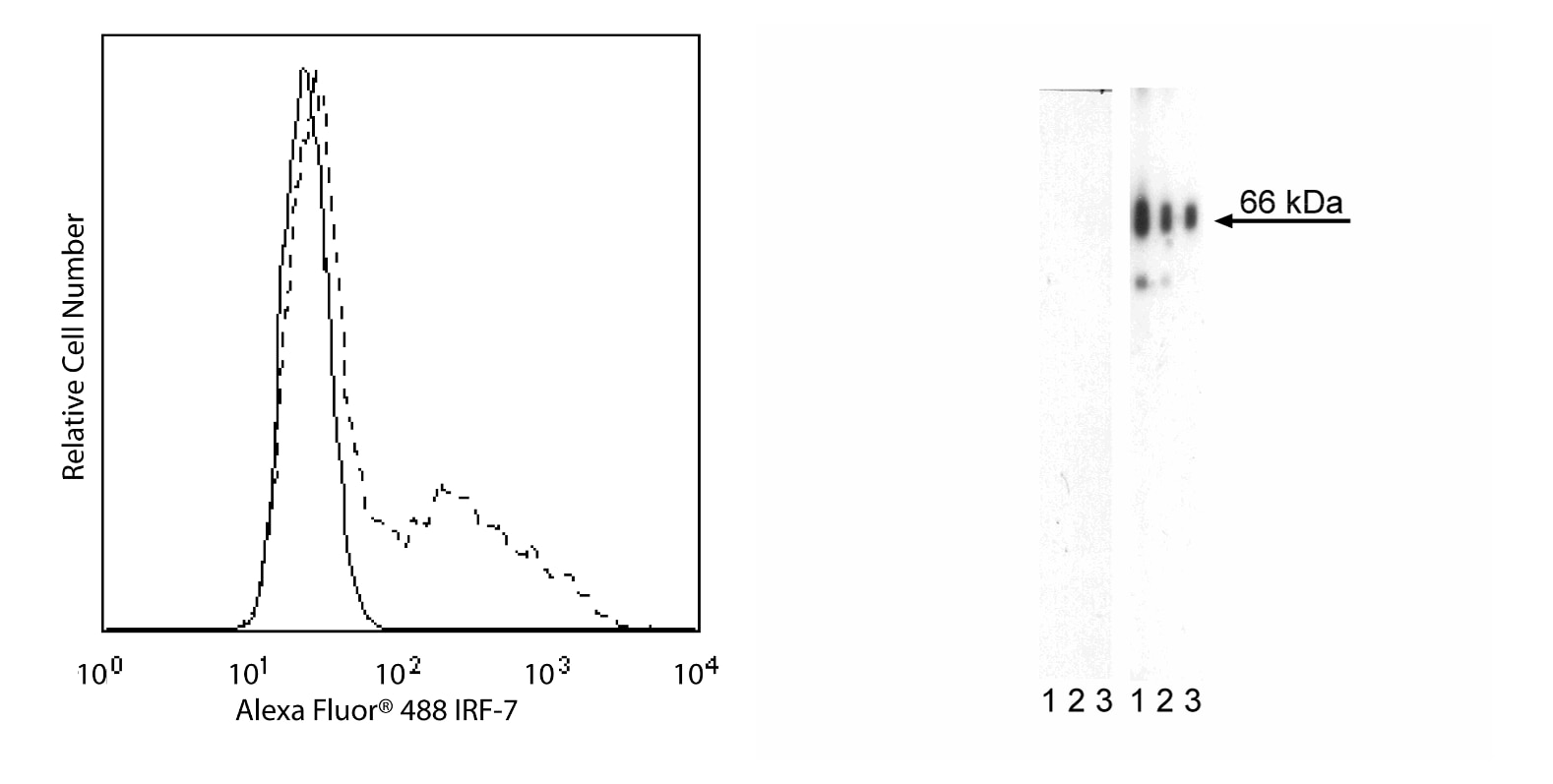

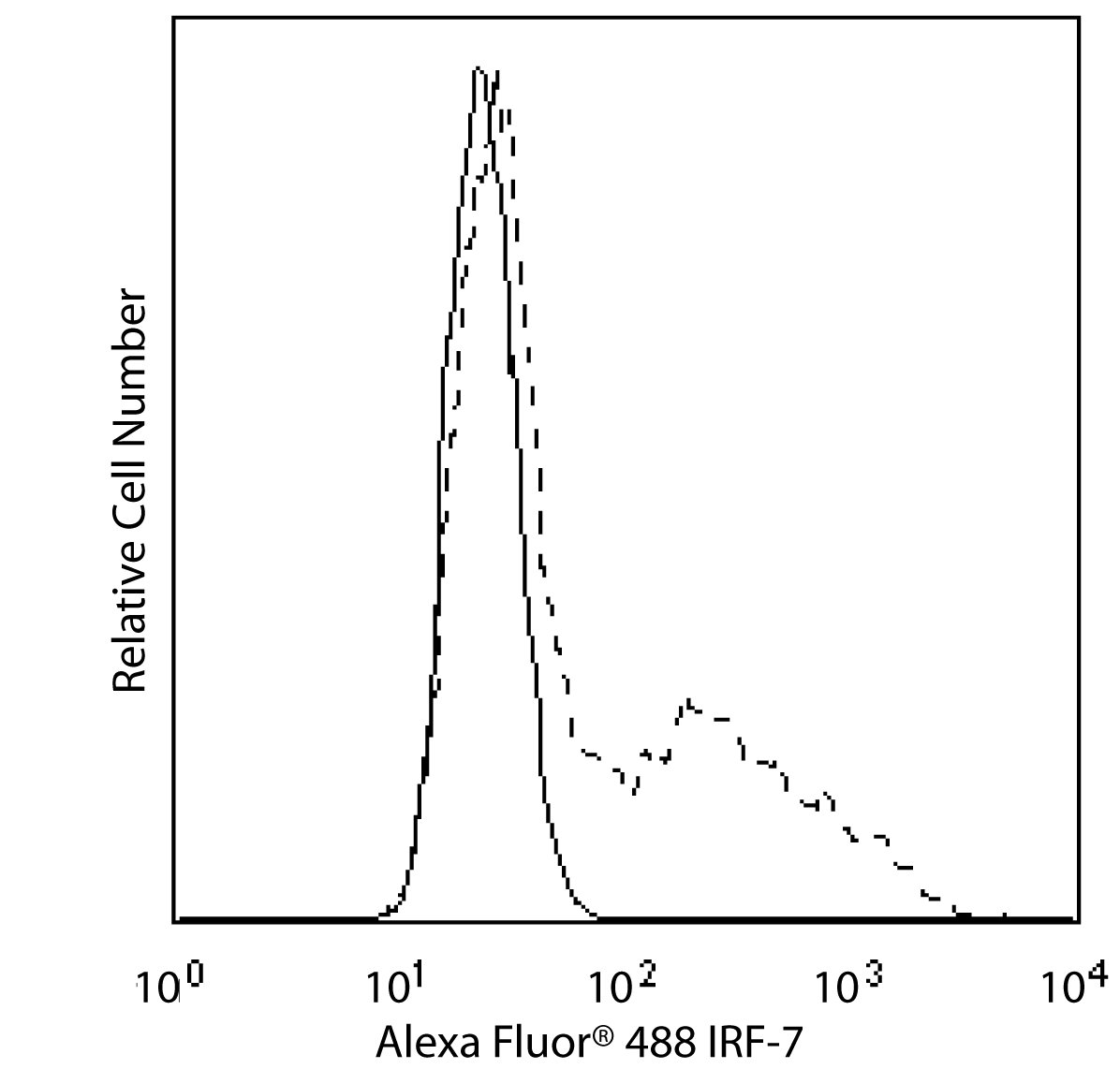

Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Analysis of IRF-7 in transfected human epithelial cells. LEFT: The 293 fetal kidney cell line was either co-transfected with TBK1 and IRF-7 expression vectors (dashed histogram) or un-transfected (solid line). After 24 hours, the cells were fixed (BD Cytofix™ Fixation Buffer, Cat. No. 554655) for 10 minutes at 37°C, then permeabilized (BD Phosflow™ Perm Buffer III, Cat. No. 558050) on ice for at least 30 minutes, and then stained with Alexa Fluor® 488 Mouse anti-IRF-7. Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system. RIGHT: The specificity of mAb K40-321 was confirmed by western blot using unconjugated antibody on lysates from untransfected (left panel) and TBK1/IRF-7 co-transfected (right panel) 293 cells. The transfected IRF-7 protein is identified as a band of 66 kDa in the lysate of co-transfected cells.
Product Details
BD Phosflow™
Human (QC Testing)
Mouse BALB/c IgG1, κ
Human IRF-7 Recombinant Protein
Intracellular staining (flow cytometry) (Routinely Tested)
20 µl
AB_1645357
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO
Preparation And Storage
Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to Alexa Fluor® 488 under optimum conditions, and unreacted Alexa Fluor® 488 was removed.
Product Notices
- This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
- Alexa Fluor® 488 fluorochrome emission is collected at the same instrument settings as for fluorescein isothiocyanate (FITC).
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
- The Alexa Fluor®, Pacific Blue™, and Cascade Blue® dye antibody conjugates in this product are sold under license from Molecular Probes, Inc. for research use only, excluding use in combination with microarrays, or as analyte specific reagents. The Alexa Fluor® dyes (except for Alexa Fluor® 430), Pacific Blue™ dye, and Cascade Blue® dye are covered by pending and issued patents.
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- Source of all serum proteins is from USDA inspected abattoirs located in the United States.
- Alexa Fluor® is a registered trademark of Molecular Probes, Inc., Eugene, OR.
- An isotype control should be used at the same concentration as the antibody of interest.
Companion Products
Fixation Buffer RUO
Size
100 ML
Cat No.
554655
Perm Buffer III RUO
Size
125 ML
Cat No.
558050
Alexa Fluor® 488 Mouse IgG1 κ Isotype Control RUO
Size
50 Tests
Cat No.
557782
558707 Rev. 2
Antibody Details
K40-321
Interferon regulatory factor 7 (IRF-7) is a transcription factor that regulates anti-viral defenses by controlling the induction of type-I interferon (IFN) responses. IRF-7 expression is induced in lymphoid cells by virus infection, as well as by IFN, lipopolysaccharide, and TNF-α. IRF-7 responses are initiated by Toll-like receptors (TLR) or the cytoplasmic protein retinoic acid inducible gene I (RIG-I). Upon TLR activation, it forms cytoplasmic complexes with MyD88, an adaptor in the TLR signaling pathways. The TLR-dependent and RIG-I-dependent pathways activate kinases, such as IKK-ε and TBK1, that phosphorylate IRF-7 and induce movement of IRF-7-containing complexes to the nucleus, where it preferentially activates IFN-α promoters.
The K40-321 monoclonal antibody recognizes human IRF-7, regardless of phosphorylation status. Our in-house testing is performed on a cell line that has been co-transfected with TBK1 and IRF-7. Phosphorylation of IRF-7 in the transfectants requires virus infection or over-expression of a signaling molecule of the RIG-I pathway, such as TBK1. Phosphorylation of endogenous IRF-7 in untransfected cells has not yet been detected. We confirmed that mAb K40-321 does not cross-react with TBK1 by Western blot analysis using the purified antibody.
558707 Rev. 2
Format Details
Alexa Fluor™ 488
Alexa Fluor™ 488 Dye is part of the BD blue family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 494-nm and an emission maximum (Em Max) at 517-nm. Alexa Fluor™ 488 is designed to be excited by the Blue laser (488 nm) and detected using an optical filter centered near 520-nm (e.g., a 530/30-nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
Alexa Fluor™ 488
494 nm
517 nm
558707 Rev.2
Citations & References
View product citations for antibody "558707" on CiteAb
Development References (8)
-
Honda K, Yanai H, Mizutani T, et al. Role of a transductional–tanscriptional processor complex involving MyD88 and IRF-7 in Toll-like receptor signaling. Proc Natl Acad Sci U S A. 2004; 101(43):15416-15421. (Biology). View Reference
-
Honda K, Yanai H, Negishi H, et al. IRF-7 is the master regulator of type-I interferon-dependent immune responses. Nature. 2005; 434:772-777. (Biology). View Reference
-
Hoshino K, Sugiyama T, Matsumoto M, et al. IκB kinase-α is critical for interferon-α production induced by Toll-like receptors 7 and 9. Nature. 2006; 440(7086):949-953. (Biology). View Reference
-
Kawai T, Sato S, Ishii KJ, et al. Interferon-α induction through Toll-like receptors involves a direct interaction of IRF7 with MyD88 and TRAF6. Nat Immunol. 2004; 5(10):1061-1068. (Biology). View Reference
-
Lin R, Mamane Y, Hiscott J. Multiple regulatory domains control IRF-7 activity in response to virus infection. J Biol Chem. 2000; 275(44):34320-34327. (Biology). View Reference
-
Matikainen S, Sirén J, Tissari J, et al. Tumor necrosis factor alpha enhances influenza A virus-induced expression of antiviral cytokines by activating RIG-I gene expression. J Virol. 2006; 80(7):3515-3522. (Biology). View Reference
-
Paz S, Sun Q, Nakhaei P, et al. Induction of IRF-3 and IRF-7 phosphorylation following activation of the RIG-I pathway. Cell Mol Biol (Noisy-le-grand). 2006; 52(1):17-28. (Biology). View Reference
-
Sharma S, tenOever BR, Grandvaux N, Zhou G-P, Lin R, Hiscott J. Triggering the interferon antiviral response through an IKK-related pathway. Science. 2003; 300:1148-1151. (Biology). View Reference
558707 Rev. 2
