FITC Mouse Anti-Mouse Vβ 5.1, 5.2 T-Cell Receptor
FITC Mouse Anti-Mouse Vβ 5.1, 5.2 T-Cell Receptor

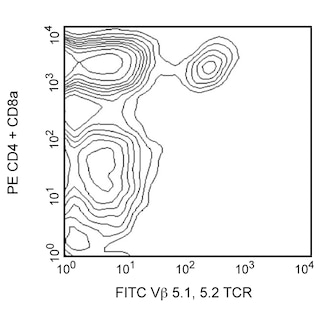

Two-color analysis of the expression of Vβ 5.1, 5.2 TCR on peripheral T lymphocytes. C57BL/6 lymph node cells were incubated simultaneously with FITC Mouse Anti-Mouse Vβ 5.1, 5.2 T-Cell Receptor (Cat. No. 553189), PE Rat Anti-Mouse CD4 (Cat. No. 553048/553049), and PE Rat Anti-Mouse CD8a (Cat. No. 553032/553033) monoclonal antibodies. The fluorescence contour plot was derived from gated events based on the forward and side light-scattering of viable lymphocytes. Flow cytometry was performed on a BD FACScan™.
Two-color analysis of the expression of Vβ 5.1, 5.2 TCR on peripheral T lymphocytes. C57BL/6 lymph node cells were incubated simultaneously with FITC Mouse Anti-Mouse Vβ 5.1, 5.2 T-Cell Receptor (Cat. No. 553189), PE Rat Anti-Mouse CD4 (Cat. No. 553048/553049), and PE Rat Anti-Mouse CD8a (Cat. No. 553032/553033) monoclonal antibodies. The fluorescence contour plot was derived from gated events based on the forward and side light-scattering of viable lymphocytes. Flow cytometry was performed on a BD FACScan™.
Product Details
Down Arrow Up Arrow


BD Pharmingen™
TCR Vβ5.1/5.2; Vβ5 T-cell receptor; T cell receptor beta 5
Mouse (QC Testing)
Mouse SWR IgG1, κ
Mouse T-Cell Hybridoma 2HB51.8
Flow cytometry (Routinely Tested)
0.5 mg/ml
21577
AB_394697
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO


Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with FITC under optimum conditions, and unreacted FITC was removed.

Recommended Assay Procedures

For flow cytometry of  cell suspensions from peripheral lymphoid tissues, it is recommended that multicolor staining be performed to distinguish T lymphocytes from non-T cells.

Product Notices

  1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  2. An isotype control should be used at the same concentration as the antibody of interest.
  3. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  4. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  5. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
  6. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
562087 Rev. 2
Antibody Details
Down Arrow Up Arrow
MR9-4

The MR9-4 monoclonal antibody specifically recognizes the Vβ 5.1 and Vβ 5.2 T-cell Receptors of strains having the b haplotype (e.g., C57BL) of the Tcrb gene complex. These gene loci are deleted in mice having the a (e.g., C57BR, C57L, SJL, SWR) or c (e.g., RIII) Tcrb haplotype. Vβ5.1 and 5.2 TCR-bearing T lymphocytes are clonally eliminated, either completely or partially, in mice expressing I-E and superantigens encoded by the Mtv-1 (Mls-4a, Mlsc), Mtv-3 (Mlsc), Mtv-8 (Mlsf), Mtv-9 (Etc-1, Mlsf), Mtv-11 (Mlsf), Mtv-13 (Mls-2a, Mlsc), Mtv-27, Mtv44 , and/or Mtv-MAI endogenous provirus (e.g., A, AKR, BALB/c, C3H/He, C58, CBA/Ca, CBA/J, DBA/2, NZB, NZW). Activation of Vβ5 TCR-expressing T cells by this determinant is dependent upon presentation by I-E. Plate-bound MR9-4 antibody activates Vβ5.1 or 5.2 TCR-bearing T cells.

562087 Rev. 2
Format Details
Down Arrow Up Arrow
FITC
Fluorescein (FITC) is part of the BD blue family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 494-nm and an emission maximum (Em Max) at 518-nm. FITC is designed to be excited by the Blue laser (488-nm) and detected using an optical filter centered near 520 nm (e.g., a 530/30-nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
FITC
Blue 488 nm
494 nm
518 nm
562087 Rev.2
Citations & References
Down Arrow Up Arrow
View product citations for antibody "562087" on CiteAb

Development References (9)

  1. Behlke MA, Chou HS, Huppi K, Loh DY. Murine T-cell receptor mutants with deletions of beta-chain variable region genes. Proc Natl Acad Sci U S A. 1986; 83(3):767-771. (Biology). View Reference
  2. Bill J, Kanagawa O, Linten J, Utsunomiya Y, Palmer E. Class I and class II MHC gene products differentially affect the fate of V beta 5 bearing thymocytes. J Mol Cell Immunol. 1990; 4(5):269-280. (Immunogen). View Reference
  3. Haqqi TM, Banerjee S, Anderson GD, David CS. RIII S/J (H-2r). An inbred mouse strain with a massive deletion of T cell receptor V beta genes. J Exp Med. 1989; 169(6):1903-1909. (Biology). View Reference
  4. Hodes RJ, Abe R. Mouse endogenous superantigens: Ms and Mls-like determinants encoded by mouse retroviruses.. Curr Protoc Immunol. 2001; Appendix 1:Appendix 1F. (Biology). View Reference
  5. Hugin AW, Vacchio MS, Morse HC 3rd. A virus-encoded "superantigen" in a retrovirus-induced immunodeficiency syndrome of mice. Science. 1991; 252(5004):424-427. (Biology). View Reference
  6. Tomonari K, Fairchild S, Rosenwasser OA. Influence of viral superantigens on V beta- and V alpha-specific positive and negative selection. Immunol Rev. 1993; 131:131-168. (Biology). View Reference
  7. Utsunomiya Y, Kosaka H, Kanagawa O. Differential reactivity of V beta 9 T cells to minor lymphocyte stimulating antigen in vitro and in vivo. Eur J Immunol. 1991; 21(4):1007-1011. (Biology). View Reference
  8. Woodland D, Happ MP, Bill J, Palmer E. Requirement for cotolerogenic gene products in the clonal deletion of I-E reactive T cells. Science. 1990; 247(4945):964-967. (Biology). View Reference
  9. Woodland DL, Happ MP, Gollob KJ, Palmer E. An endogenous retrovirus mediating deletion of alpha beta T cells. Nature. 1991; 349(6309):529-530. (Biology). View Reference
View All (9) View Less
562087 Rev. 2

Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
