      RY586 Mouse Anti-Human CD319 (CRACC)
      RY586 Mouse Anti-Human CD319 (CRACC)

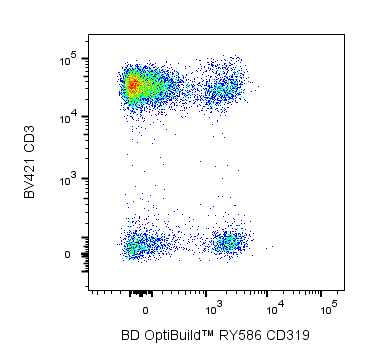

      Multiparameter flow cytometric analysis using BD OptiBuild™ RY586 Mouse Anti-Human CD319 (CRACC) antibody (Cat. No. 753654) on human peripheral lymphocytes. Flow cytometry was performed using a BD LSRFortessa™ X-20 Flow Cytometer System.
      RY586 Mouse Anti-Human CD319 (CRACC)
      Multiparameter flow cytometric analysis using BD OptiBuild™ RY586 Mouse Anti-Human CD319 (CRACC) antibody (Cat. No. 753654) on human peripheral lymphocytes. Flow cytometry was performed using a BD LSRFortessa™ X-20 Flow Cytometer System.
      Product Details
      Down Arrow Up Arrow


      BD OptiBuild™
      CRACC; SLAMF7; 19A; 19A24 protein; CS1
      Human (Tested in Development)
      Mouse IgG2a, κ
      Human CRACC/SLAMF7
      Flow cytometry (Qualified)
      0.2 mg/ml
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions that minimize unconjugated dye and antibody.
      Show More blue down arrow Show Less blue up arrow

      Recommended Assay Procedures

      BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. Researchers should determine the optimal concentration of this reagent for their individual applications.
      2. The production process underwent stringent testing and validation to assure that it generates a high-quality conjugate with consistent performance and specific binding activity. However, verification testing has not been performed on all conjugate lots.
      3. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      4. An isotype control should be used at the same concentration as the antibody of interest.
      5. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      6. CF™ is a trademark of Biotium, Inc.
      7. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
      8. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      9. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      10. Human donor specific background has been observed in relation to the presence of anti-polyethylene glycol (PEG) antibodies, developed as a result of certain vaccines containing PEG, including some COVID-19 vaccines. We recommend use of BD Horizon Brilliant™ Stain Buffer in your experiments to help mitigate potential background. For more information visit https://www.bdbiosciences.com/en-us/support/product-notices.
      Show More blue down arrow Show Less blue up arrow
      753654 Rev. 2
      Antibody Details
      Down Arrow Up Arrow
      235614

      The 235614 monoclonal antibody specifically binds to CRACC (CD2-like receptor activating cytotoxic cells) which is also known as CD319, CS1 (CD2 subset 1), SLAMF7, 19A, and 19A24. CRACC is a type I transmembrane glycoprotein that belongs to the CD2 family of receptors within the Ig superfamily. CRACC is expressed on most NK cells and subsets of CD8+ T cells, CD4+ T cells, B cells, macrophages, and dendritic cells. CRACC reportedly plays roles in the activation, proliferation and effector functions of T cells, NK cells, and other leucocytes.

      753654 Rev. 2
      Format Details
      Down Arrow Up Arrow
      RY586
      The BD Horizon RealYellow™ 586 (RY586) Dye is part of the BD family of yellow-green dyes. It is a small organic fluorochrome with an excitation maximum (Ex Max) at 565-nm and an emission maximum (Em Max) at 586-nm. Driven by BD innovation, RY586 can be used on both spectral and conventional cytometers and is designed to be excited by the Yellow-Green laser (561-nm) with minimal excitation by the 488-nm Blue laser. For conventional instruments equipped with a Yellow-Green laser (561-nm), RY586 can be used as an alternative to PE and we recommend using an optical filter centered near 586-nm (eg, a 586/15-nm bandpass filter). For spectral instruments equipped with a Yellow-Green laser (561-nm), it can be used in conjunction with PE. Compared to PE, RY586 is similar in brightness, minimal spillover into Blue detectors, and increased spillover into the 610/20-nm (PE-CF594) detector. Please ensure that your instrument configuration (lasers and optical filters) is appropriate for this dye.
      altImg
      RY586
      Yellow-Green 561 nm
      564 nm
      586 nm
      753654 Rev.2
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "753654" on CiteAb

      Development References (8)

      1. Boles KS, Mathew PA. Molecular cloning of CS1, a novel human natural killer cell receptor belonging to the CD2 subset of the immunoglobulin superfamily. Immunogenetics. 2001; 52(3-4):302-307. (Biology). View Reference
      2. Bouchon A, Cella M, Grierson HL, Cohen JI, Colonna M. Activation of NK cell-mediated cytotoxicity by a SAP-independent receptor of the CD2 family. J Immunol. 2001; 167(10):5517-5521. (Biology). View Reference
      3. Fasth AE, Bjorkstrom NK, Anthoni M, Malmberg KJ, Malmstrom V. Activating NK-cell receptors co-stimulate CD4(+)CD28(-) T cells in patients with rheumatoid arthritis. Eur J Immunol. 2010; 40(2):378-387. (Biology). View Reference
      4. Hagberg N, Theorell J, Schlums H, Eloranta ML, Bryceson YT, Ronnblom L. Systemic lupus erythematosus immune complexes increase the expression of SLAM family members CD319 (CRACC) and CD229 (LY-9) on plasmacytoid dendritic cells and CD319 on CD56(dim) NK cells. J Immunol. 2013; 191(6):2989-2998. (Biology). View Reference
      5. Kim JR, Horton NC, Mathew SO, Mathew PA. CS1 (SLAMF7) inhibits production of proinflammatory cytokines by activated monocytes. Inflamm Res. 2013; 62(8):765-772. (Biology). View Reference
      6. Llinas L, Lazaro A, de Salort J, Matesanz-Isabel J, Sintes J, Engel P. Expression profiles of novel cell surface molecules on B-cell subsets and plasma cells as analyzed by flow cytometry. Immunol Lett. 2011; 134(2):113-121. (Biology). View Reference
      7. Murphy JJ, Hobby P, Vilarino-Varela J, et al. A novel immunoglobulin superfamily receptor (19A) related to CD2 is expressed on activated lymphocytes and promotes homotypic B-cell adhesion. Biochem J. 2002; 361(Pt3):431-436. (Biology). View Reference
      8. Tassi I, Colonna M. The cytotoxicity receptor CRACC (CS-1) recruits EAT-2 and activates the PI3K and phospholipase Cgamma signaling pathways in human NK cells. J Immunol. 2005; 175(12):7996-8002. (Biology). View Reference
      View All (8) View Less
      753654 Rev. 2

      Please refer to Support Documents for Quality Certificates


      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
