      BV421 Rat Anti-Mouse CD47

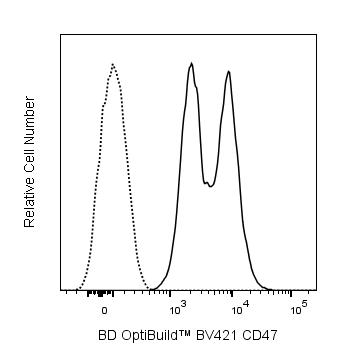

      Flow cytometric analysis using BD OptiBuild™ BV421 Rat Anti-Mouse CD47 antibody (Cat. No. 740055; solid line histogram) on live C57BL/6 mouse bone marrow, with corresponding Isotype Control (dotted line histogram). Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.


      Flow cytometric analysis using BD OptiBuild™ BV421 Rat Anti-Mouse CD47 antibody (Cat. No. 740055; solid line histogram) on live C57BL/6 mouse bone marrow, with corresponding Isotype Control (dotted line histogram). Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.

      740055_Image1.png 740055_Image1.png Blue-Cap-Violet-Label.png

      Flow cytometric analysis using BD OptiBuild™ BV421 Rat Anti-Mouse CD47 antibody (Cat. No. 740055; solid line histogram) on live C57BL/6 mouse bone marrow, with corresponding Isotype Control (dotted line histogram). Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.

      Flow cytometric analysis using BD OptiBuild™ BV421 Rat Anti-Mouse CD47 antibody (Cat. No. 740055; solid line histogram) on live C57BL/6 mouse bone marrow, with corresponding Isotype Control (dotted line histogram). Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.

      Product Details
      Down Arrow Up Arrow


      BD OptiBuild™
      Cd47; IAP; Integrin-associated protein; Itgp
      Mouse (Tested in Development)
      Rat IgG2a, κ
      Not reported
      Flow cytometry (Qualified)
      0.2 mg/ml
      AB_2739820
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with BD Horizon BV421 under optimal conditions that minimize unconjugated dye and antibody.
      Show More blue down arrow Show Less blue up arrow

      Recommended Assay Procedures

      For optimal and reproducible results, BD Horizon Brilliant Stain Buffer should be used anytime two or more BD Horizon Brilliant dyes (including BD OptiBuild Brilliant reagents) are used in the same experiment.  Fluorescent dye interactions may cause staining artifacts which may affect data interpretation.  The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions.  More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794).

      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. This antibody was developed for use in flow cytometry.
      2. The production process underwent stringent testing and validation to assure that it generates a high-quality conjugate with consistent performance and specific binding activity. However, verification testing has not been performed on all conjugate lots.
      3. Researchers should determine the optimal concentration of this reagent for their individual applications.
      4. An isotype control should be used at the same concentration as the antibody of interest.
      5. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      6. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      7. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      8. BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
      9. BD Horizon Brilliant Violet 421 is covered by one or more of the following US patents: 8,158,444; 8,362,193; 8,575,303; 8,354,239.
      10. Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
      Show More blue down arrow Show Less blue up arrow
      740055 Rev. 2
      Antibody Details
      Down Arrow Up Arrow
      miap301

      The miap301 monoclonal antibody specifically binds to the extracellular domain of CD47, also known as Integrin-Associated Protein (IAP). CD47 is a 50-kDa plasma membrane protein with an extracellular immunoglobulin variable region-like domain, a multiple membrane-spanning segment, and a short C-terminal cytoplasmic tail. IAP is often physically associated with β3 integrins, and it may act as a transducer element in activation mediated by these integrins. CD47 is expressed by a wide variety of cell types, including some cells lacking integrins, such as erythrocytes. The cytoplasmic tail region is expressed as alternatively spliced forms, which are differentially expressed in diverse tissues, suggesting that IAP may have distinct functions in various tissues. CD47 and its ligand, CD172a, are proposed to mediate bi-directional signaling to modify neural synaptic activity and regulate the phagocytic activities of macrophages.

      The antibody was conjugated to BD Horizon™ BV421 which is part of the BD Horizon Brilliant™ Violet family of dyes. With an Ex Max of 407-nm and Em Max at 421-nm, BD Horizon BV421 can be excited by the violet laser and detected in the standard Pacific Blue™ filter set (eg, 450/50-nm filter). BD Horizon BV421 conjugates are very bright, often exhibiting a 10 fold improvement in brightness compared to Pacific Blue conjugates.

      740055 Rev. 2
      Format Details
      Down Arrow Up Arrow
      BV421
      The BD Horizon Brilliant Violet™ 421 (BV421) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This polymer-technology based dye has an excitation maximum (Ex Max) of 407-nm and an emission maximum (Em Max) at 423-nm. Driven by BD innovation, BV421 is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 420-nm (e.g., a 431/28-nm or 450/50-nm bandpass filter). BV421 is an ideal alternative for V450 as it is approximately ten times brighter with less spillover into the BV510/V500 detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
      BV421
      407 nm
      423 nm
      740055 Rev.2
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "740055" on CiteAb

      Development References (7)

      1. Gresham HD, Dale BM, Potter JW, et al. Negative regulation of phagocytosis in murine macrophages by the Src kinase family member, Fgr. J Exp Med. 2000; 191(3):515-528. (Biology). View Reference
      2. Jiang P, Lagenaur CF, Narayanan V. Integrin-associated protein is a ligand for the P84 neural adhesion molecule. J Biol Chem. 1999; 274(2):559-562. (Clone-specific: Immunofluorescence, Immunohistochemistry). View Reference
      3. Lindberg FP, Bullard DC, Caver TE, Gresham HD, Beaudet AL, Brown EJ. Decreased resistance to bacterial infection and granulocyte defects in IAP-deficient mice. Science. 1996; 274(5288):795-798. (Clone-specific: Western blot). View Reference
      4. Lindberg FP, Gresham HD, Schwarz E, Brown EJ. Molecular cloning of integrin-associated protein: an immunoglobulin family member with multiple membrane-spanning domains implicated in alpha v beta 3-dependent ligand binding. J Cell Biol. 1993; 123(2):485-496. (Biology). View Reference
      5. Mi ZP, Jiang P, Weng WL, Lindberg FP, Narayanan V, Lagenaur CF. Expression of a synapse-associated membrane protein, P84/SHPS-1, and its ligand, IAP/CD47, in mouse retina. J Comp Neurol. 2000; 416(3):335-344. (Clone-specific: Immunofluorescence, Immunohistochemistry). View Reference
      6. Oldenborg PA, Zheleznyak A, Fang YF, Lagenaur CF, Gresham HD, Lindberg FP. Role of CD47 as a marker of self on red blood cells. Science. 2000; 288(5473):2051-2054. (Biology). View Reference
      7. Reinhold MI, Lindberg FP, Plas D, Reynolds S, Peters MG, Brown EJ. In vivo expression of alternatively spliced forms of integrin-associated protein (CD47). J Cell Sci. 1995 November; 108(Pt 11):3419-3425. (Biology). View Reference
      View All (7) View Less
      740055 Rev. 2

      Please refer to Support Documents for Quality Certificates



      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described



      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
