BD Pharmingen™ Alexa Fluor® 647 Rat Anti-Mouse CD276
Clone MIH32 (RUO)

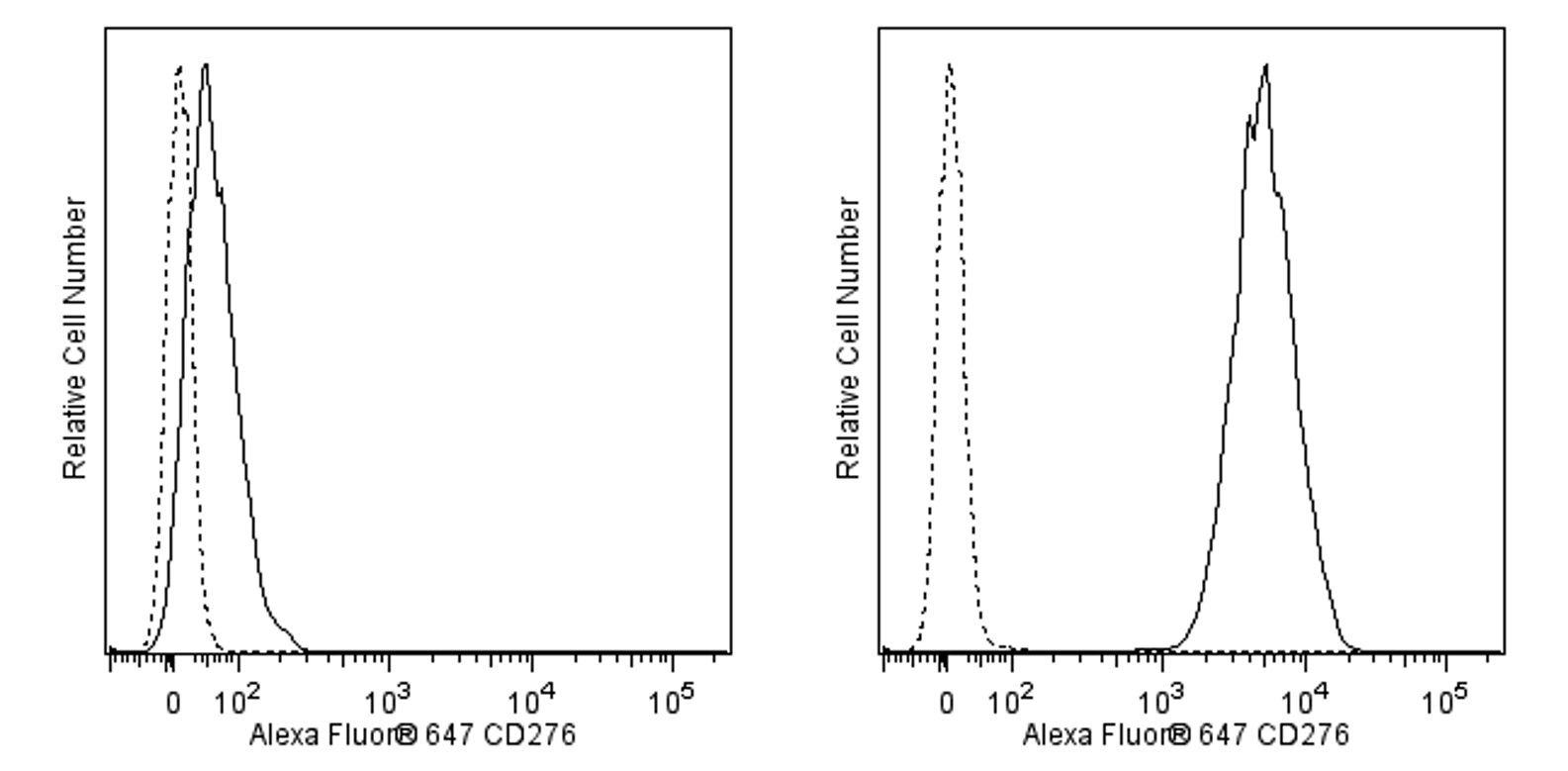

Flow cytometric analysis of mouse CD276 expression on CD276-transfected cells. Untransfected mouse J558L myeloma cells (Left Panel) and mouse CD276-transfected J558L cells (Right Panel) were stained with Alexa Fluor® 647 Rat Anti-Mouse CD276 antibody (Cat. No. 562862; solid line histogram), or with an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat. No. 557690; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of mouse CD276 expression on CD276-transfected cells. Untransfected mouse J558L myeloma cells (Left Panel) and mouse CD276-transfected J558L cells (Right Panel) were stained with Alexa Fluor® 647 Rat Anti-Mouse CD276 antibody (Cat. No. 562862; solid line histogram), or with an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat. No. 557690; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of mouse CD276 expression on CD276-transfected cells. Untransfected mouse J558L myeloma cells (Left Panel) and mouse CD276-transfected J558L cells (Right Panel) were stained with Alexa Fluor® 647 Rat Anti-Mouse CD276 antibody (Cat. No. 562862; solid line histogram), or with an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat. No. 557690; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of mouse CD276 expression on CD276-transfected cells. Untransfected mouse J558L myeloma cells (Left Panel) and mouse CD276-transfected J558L cells (Right Panel) were stained with Alexa Fluor® 647 Rat Anti-Mouse CD276 antibody (Cat. No. 562862; solid line histogram), or with an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat. No. 557690; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of mouse CD276 expression on CD276-transfected cells. Untransfected mouse J558L myeloma cells (Left Panel) and mouse CD276-transfected J558L cells (Right Panel) were stained with Alexa Fluor® 647 Rat Anti-Mouse CD276 antibody (Cat. No. 562862; solid line histogram), or with an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat. No. 557690; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of mouse CD276 expression on CD276-transfected cells. Untransfected mouse J558L myeloma cells (Left Panel) and mouse CD276-transfected J558L cells (Right Panel) were stained with Alexa Fluor® 647 Rat Anti-Mouse CD276 antibody (Cat. No. 562862; solid line histogram), or with an Alexa Fluor® 647 Rat IgG2a, κ Isotype Control (Cat. No. 557690; dashed line histogram). The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of viable cells. Flow cytometric analysis was performed using a BD™ LSR II Flow Cytometer System.
Product Details
BD Pharmingen™
Cd276; B7-H3; B7 homolog 3; B7h3; B7RP-2; Costimulatory molecule
Mouse (QC Testing)
Rat SD, also known as Sprague-Dawley (outbred) IgG2a, κ
Mouse B7-H3 Transfected Cell Line
Flow cytometry (Routinely Tested)
0.2 mg/ml
AB_2737848
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO
Preparation And Storage
Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to Alexa Fluor® 647 under optimum conditions, and unreacted Alexa Fluor® 647 was removed.
Product Notices
- Since applications vary, each investigator should titrate the reagent to obtain optimal results.
- An isotype control should be used at the same concentration as the antibody of interest.
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
- The Alexa Fluor®, Pacific Blue™, and Cascade Blue® dye antibody conjugates in this product are sold under license from Molecular Probes, Inc. for research use only, excluding use in combination with microarrays, or as analyte specific reagents. The Alexa Fluor® dyes (except for Alexa Fluor® 430), Pacific Blue™ dye, and Cascade Blue® dye are covered by pending and issued patents.
- Alexa Fluor® is a registered trademark of Molecular Probes, Inc., Eugene, OR.
- Alexa Fluor® 647 fluorochrome emission is collected at the same instrument settings as for allophycocyanin (APC).
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
Companion Products
Stain Buffer (FBS) RUO
Size
500 ML
Cat No.
554656
Alexa Fluor® 647 Rat IgG2a, κ Isotype Control RUO
Size
0.1 mg
Cat No.
557690
562862 Rev. 1
Antibody Details
MIH32
The MIH32 monoclonal antibody specifically binds to CD276, also known as B7-H3 (B7 homolog 3). CD276 is a type I transmembrane glycoprotein and member of the B7-family of regulatory proteins. The expression of B7-H3 can be induced on T cells, natural killer (NK) cells and antigen presenting cells. B7-H3 is up-regulated during the differentiation of monocytes into dendritic cells or during the interaction between dendritic cells and regulatory T cells. In addition, B7-H3 is found to be expressed on fibroblasts, fibroblast-like synoviocytes and epithelial cells. CD276 (B7-H3) can function as a positive or a negative regulator of T responses.
562862 Rev. 1
Format Details
Alexa Fluor™ 647
Alexa Fluor™ 647 Dye is part of the BD red family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 653-nm and an emission maximum (Em Max) at 669-nm. Alexa Fluor™ 647 is designed to be excited by the Red laser (627-640 nm) and detected using an optical filter centered near 670-nm (e.g., a 660/20 nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
Alexa Fluor™ 647
653 nm
669 nm
562862 Rev.1
Citations & References
View product citations for antibody "562862" on CiteAb
Development References (3)
-
Chapoval AI, Ni J, Lau JS, et al. B7-H3: a costimulatory molecule for T cell activation and IFN-gamma production. Nat Immunol. 2001; 2(3):269-274. (Biology). View Reference
-
Hashiguchi M, Kobori H, Ritprajak P, Kamimura Y, Kozono H, Azuma M. Triggering receptor expressed on myeloid cell-like transcript 2 (TLT-2) is a counter-receptor for B7-H3 and enhances T cell responses. Proc Natl Acad Sci U S A. 2008; 105(30):10495-10500. (Clone-specific: Flow cytometry). View Reference
-
Sun M, Richards S, Prasad DV, Mai XM, Rudensky A, Dong C. Characterization of mouse and human B7-H3 genes. J Immunol. 2002; 168(12):6294-6297. (Biology). View Reference
562862 Rev. 1
