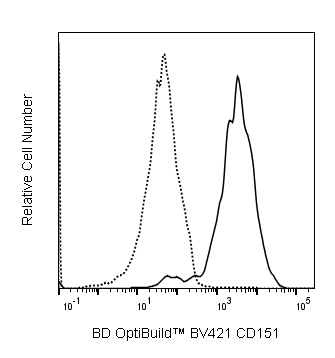

Flow cytometric analysis of CD151 expression on mouse brain endothelioma cells. bEnd.3 cells (ATCC CRL-2299) were harvested using Cell Dissociation Buffer (Gibco 13151014), and then stained with either BD Horizon™ BV421 Rat IgG2a, κ Isotype Control (Cat. No. 562602; dashed line histogram) or BD OptiBuild™ BV421 Rat Anti-Mouse CD151 (Cat. No. 748109; solid line histogram) at 1.0 µg/test. The fluorescence histograms showing CD151 [or Ig Isotype control] staining were derived from gated events with the forward and side light-scatter characteristics of viable singlet cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. The above is qualification data only and does not represent a specific OptiBuild™ lot.
BD OptiBuild™ BV421 Rat Anti-Mouse CD151
Regulatory Status Legend
Any use of products other than the permitted use without the express written authorization of Becton, Dickinson and Company is strictly prohibited.
Preparation And Storage
Recommended Assay Procedures
For optimal and reproducible results, BD Horizon Brilliant Stain Buffer should be used anytime two or more BD Horizon Brilliant dyes (including BD OptiBuild Brilliant reagents) are used in the same experiment. Fluorescent dye interactions may cause staining artifacts which may affect data interpretation. The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794).
Product Notices
- This antibody was developed for use in flow cytometry.
- The production process underwent stringent testing and validation to assure that it generates a high-quality conjugate with consistent performance and specific binding activity. However, verification testing has not been performed on all conjugate lots.
- Researchers should determine the optimal concentration of this reagent for their individual applications.
- An isotype control should be used at the same concentration as the antibody of interest.
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
- BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
- BD Horizon Brilliant Violet 421 is covered by one or more of the following US patents: 8,158,444; 8,362,193; 8,575,303; 8,354,239.
- Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
Companion Products
The 455807 monoclonal antibody specifically recognizes CD151, which is also known as Platelet-Endothelial Tetraspan Antigen 3 (PETA-3). CD151 is a member of the Tetraspanin or Transmembrane 4 superfamily (TM4SF). Like most tetraspaninins, CD151 regulates cell migration, interactions, and signaling by forming complexes with other membrane molecules, such as integrins and other tetraspanins. CD151 is expressed on many types of cells, including endothelial and epithelial cells, megakaryocytes and platelets, but not on lymphoid cells.
The antibody was conjugated to BD Horizon™ BV421 which is part of the BD Horizon Brilliant™ Violet family of dyes. With an Ex Max of 407-nm and Em Max at 421-nm, BD Horizon BV421 can be excited by the violet laser and detected in the standard Pacific Blue™ filter set (eg, 450/50-nm filter). BD Horizon BV421 conjugates are very bright, often exhibiting a 10 fold improvement in brightness compared to Pacific Blue conjugates.
No Citations are available for this Product
Please refer to Support Documents for Quality Certificates
Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described
Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
