Purified Rat Anti-Mouse IL-12 (p40/p70)
Purified Rat Anti-Mouse IL-12 (p40/p70)

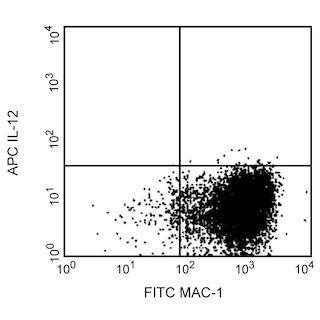

Expression of IL-12 by mouse bone marrow-derived macrophages. Bone marrow cells from 6 month old BALB/c mice were cultured for 10 days in mouse GM-CSF (40 ng/ml final concentration; Cat. No. 554586). Adherent cells were washed and treated for ~14 hours with mouse IFN-γ (10 ng/ml final concentration; Cat. No. 554587); subsequently LPS (1 µg/ml final concentration; Sigma) and GolgiStop™ (2 µM final concentration Cat. No. 554724) were added to cultures for an additional 5 hours. Adherent cells were washed and then incubated with 1x trypsin EDTA at 37°C. for 15 minutes and gently dislodged by pipetting. Nonspecific surface binding was blocked by incubation of cells with purified polyclonal normal mouse immunoglobulin. Cells were then fixed, permeabilized, and non-specific binding to intracellular antigens was blocked using PBS/2%BSA/0.1% saponin. Cells were then stained with 0.06 µg of PE-conjugated rat anti-mouse IL-12 (p40/p70) antibody (PE-C15.6, Cat. No. 554479; see left panel) using the BD Pharmingen™ staining protocol. To demonstrate specificity of staining, the binding of PE-C15.6 antibody was blocked by the preincubation of the conjugated antibody with recombinant mouse IL-12 p40 protein (0.5 µg, Cat. No. 554594; see middle panel), and by preincubating the fixed/permeabilized cells with unlabeled C15.6 antibody (5 µg/ml final concentration; Cat. No. 554477; see right panel) prior to staining. The quadrant markers for the bivariate dot plots were set based on the autofluorescence control and verified using the ligand blocking and unlabeled antibody blocking controls.

Expression of IL-12 by mouse bone marrow-derived macrophages. Bone marrow cells from 6 month old BALB/c mice were cultured for 10 days in mouse GM-CSF (40 ng/ml final concentration; Cat. No. 554586). Adherent cells were washed and treated for ~14 hours with mouse IFN-γ (10 ng/ml final concentration; Cat. No. 554587); subsequently LPS (1 µg/ml final concentration; Sigma) and GolgiStop™ (2 µM final concentration Cat. No. 554724) were added to cultures for an additional 5 hours. Adherent cells were washed and then incubated with 1x trypsin EDTA at 37°C. for 15 minutes and gently dislodged by pipetting. Nonspecific surface binding was blocked by incubation of cells with purified polyclonal normal mouse immunoglobulin. Cells were then fixed, permeabilized, and non-specific binding to intracellular antigens was blocked using PBS/2%BSA/0.1% saponin. Cells were then stained with 0.06 µg of PE-conjugated rat anti-mouse IL-12 (p40/p70) antibody (PE-C15.6, Cat. No. 554479; see left panel) using the BD Pharmingen™ staining protocol. To demonstrate specificity of staining, the binding of PE-C15.6 antibody was blocked by the preincubation of the conjugated antibody with recombinant mouse IL-12 p40 protein (0.5 µg, Cat. No. 554594; see middle panel), and by preincubating the fixed/permeabilized cells with unlabeled C15.6 antibody (5 µg/ml final concentration; Cat. No. 554477; see right panel) prior to staining. The quadrant markers for the bivariate dot plots were set based on the autofluorescence control and verified using the ligand blocking and unlabeled antibody blocking controls.

商品详情
Down Arrow Up Arrow


BD Pharmingen™
Mouse (QC Testing)
Rat IgG1
CHO-expressed recombinant mouse IL-12 p70 protein
Intracellular block/flow cytometry (Routinely Tested)
0.5 mg/ml
AB_398559
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO


推荐的实验流程

Recommended Assay Procedure:

Blocking Control for Intracellular Staining: The purified C15.6 antibody (Cat. No. 554477) can be used as a blocking control to demonstrate specificity of IL-12 staining by conjugated C15.6 antibody (Cat. No. 554479 and 554480). To perform this control, the fixed/permeabilized cells (~1 million) can be incubated with 1 -10 µg of unlabeled C15.6 antibody (Cat. No. 554477) for 20 minutes at 4°C, prior to staining with PE-conjugated C15.6 antibody (e.g., 0.1 - 0.5 µg mAb/1 million cells). The intracellular cytokine staining technique and use of blocking controls are described in detail by C. Prussin and D. Metcalfe. For specific methodology, please visit our web site, www.bdbiosciences.com, and go to the protocols section or the chapter on intracellular staining in the Immune Function Handbook.

ELISA Capture- IL-12 p40 ELISA: The purified C15.6 antibody is useful as a capture antibody for a sandwich ELISA measuring the total amount of p40 in solution (complexed as homodimer or heterodimer, as well as free monomer).  The purified C15.6 antibody, Cat. No. 551219 is recommended for use in ELISA applications.   C15.6 antibody can be paired with the biotinylated C17.8 antibody (Cat. No. 554476) as the detecting antibody, with recombinant mouse IL-12 p70 protein (Cat. No. 554592), or IL-12 p40 protein (Cat. No. 554594) as the standard.  Note: For testing mouse IL-12 p40 in complex biological fluids like serum or plasma, our mouse IL-12p40 specific OptEIA™ sandwich ELISA set is recommended (Cat. No. 555165).

商品通知

  1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  2. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  3. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
554477 Rev. 1
抗体详情
Down Arrow Up Arrow
C15.6

The C15.6 monoclonal antibody specifically binds to both free and complexed (homodimer p80 and heterodimer p70) forms of the p40 subunit of mouse interleukin-12 (IL-12). The immunogen used to generate the C15.6 hybridoma was recombinant mouse IL-12 p70 protein. p40 has also been described as a subunit of IL-23 and thus it is possible that the C15.6 antibody will crossreact with IL-23.

This antibody is routinely tested by flow cytometric analysis. Other applications were tested at BD Biosciences Pharmingen during antibody development only or reported in the literature.

554477 Rev. 1
格式详情
Down Arrow Up Arrow
Purified
Tissue culture supernatant is purified by either protein A/G or affinity purification methods. Both methods yield antibody in solution that is free of most other soluble proteins, lipids, etc. This format provides pure antibody that is suitable for a number of downstream applications including: secondary labeling for flow cytometry or microscopy, ELISA, Western blot, etc.
Purified
554477 Rev.1
报价单和参考
Down Arrow Up Arrow

研发参考 (2)

  1. Prussin C, Metcalfe DD. Detection of intracytoplasmic cytokine using flow cytometry and directly conjugated anti-cytokine antibodies. J Immunol Methods. 1995; 188(1):117-128. (Methodology: IC/FCM Block). 查看参考
  2. Wysocka M, Kubin M, Vieira LQ, et al. Interleukin-12 is required for interferon-gamma production and lethality in lipopolysaccharide-induced shock in mice. Eur J Immunol. 1995; 25(3):672-676. (Clone-specific: ELISA). 查看参考
554477 Rev. 1

Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
