PE Mouse anti-SLP-76
PE Mouse anti-SLP-76

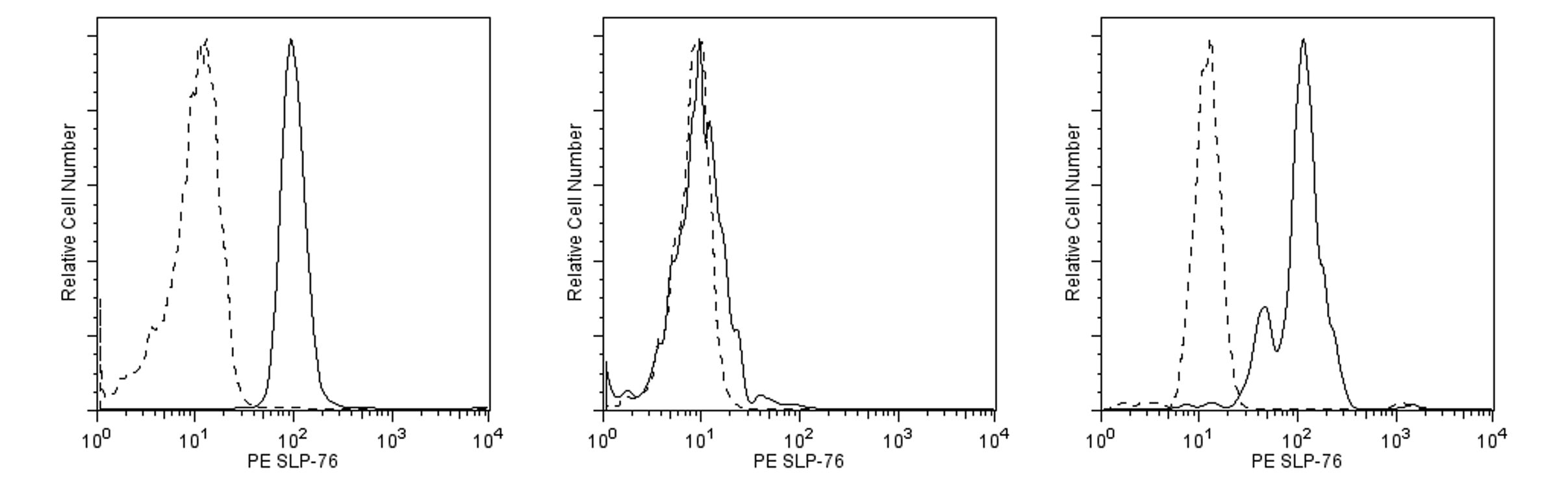

Analysis of SLP-76 in human peripheral blood lymphocytes.  Human whole blood was lysed and fixed with 1X BD Phosflow™ Lyse/Fix Buffer (Cat. No. 558049) for 10-15 minutes at 37ºC, permeabilized (BD Phosflow™ Perm Buffer II, Cat. No. 558052) on ice for 30 minutes,  stained with Alexa Fluor® 647 Mouse Anti-Human CD3 mAb UCHT1 (Cat. No. 557706), PerCP-Cy5.5 anti-human CD20 mAb H1(FB1) (Cat. No. 558021), and either PE Mouse anti-SLP-76 (Cat. No. 560058, solid-line histograms) or PE Mouse IgG2a, κ Isotype control mAb MOPC-173 (Cat. No. 558595, dashed-line histograms).  The figures show lymphocyte subpopulations that were selected by their scatter profile and surface antigen expression.  SLP-76 expression on CD3-positive CD20-negative T lymphocytes (left panel), CD20-positive CD3-negative B lymphocytes (center panel), and CD20-negative CD3-negative NK cells (right panel) are displayed.  There was no detectable expression of SLP-76 in the monocyte/granulocyte population (not shown).  Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system.

Analysis of SLP-76 in human peripheral blood lymphocytes.  Human whole blood was lysed and fixed with 1X BD Phosflow™ Lyse/Fix Buffer (Cat. No. 558049) for 10-15 minutes at 37ºC, permeabilized (BD Phosflow™ Perm Buffer II, Cat. No. 558052) on ice for 30 minutes,  stained with Alexa Fluor® 647 Mouse Anti-Human CD3 mAb UCHT1 (Cat. No. 557706), PerCP-Cy5.5 anti-human CD20 mAb H1(FB1) (Cat. No. 558021), and either PE Mouse anti-SLP-76 (Cat. No. 560058, solid-line histograms) or PE Mouse IgG2a, κ Isotype control mAb MOPC-173 (Cat. No. 558595, dashed-line histograms).  The figures show lymphocyte subpopulations that were selected by their scatter profile and surface antigen expression.  SLP-76 expression on CD3-positive CD20-negative T lymphocytes (left panel), CD20-positive CD3-negative B lymphocytes (center panel), and CD20-negative CD3-negative NK cells (right panel) are displayed.  There was no detectable expression of SLP-76 in the monocyte/granulocyte population (not shown).  Flow cytometry was performed on a BD FACSCalibur™ flow cytometry system.

商品详情
Down Arrow Up Arrow


BD Phosflow™
Human (QC Testing), Mouse (Reported)
Mouse BALB/c IgG2a, κ
Human SLP-76 SH2 domain Recombinant Protein
Intracellular staining (flow cytometry) (Routinely Tested)
20 µl
AB_1645531
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO


准备和存储

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with R-PE under optimum conditions, and unconjugated antibody and free PE were removed.

商品通知

  1. This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
  2. An isotype control should be used at the same concentration as the antibody of interest.
  3. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
  4. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  5. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  6. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
560058 Rev. 2
抗体详情
Down Arrow Up Arrow
H3

SLP-76 (SH2 domain-containing Leukocyte Protein of 76 kDa) is a tyrosine phosphoprotein that is involved in the T cell receptor (TCR)-mediated intracellular signaling pathway.  It may be involved in the signaling pathways of other peripheral blood leukocytes; thymic/splenic cells; and in human T, B, and monocytic cell lines.  SLP-76 consists of several motifs that signify its importance in protein-protein interactions involved in intracellular signaling pathways, such as the SH2 domain in the C-terminus, the three amino-terminus 17-amino acid repeats with conserved tyrosine and acidic residues (DYE(S/P)P), and a proline rich region.  SLP-76 has been shown to associate with Gads, Grb2, PLCγ1, SLAP-130, and Vav, all of which are part of the signaling cascade in T lymphocytes.  An early event in the T cell activation pathway is the phosphorylation, by the Syk-family kinase ZAP-70, of SLP-76 at the three conserved tyrosine motifs, which then mediate interactions with downstream effectors.

The H3 monoclonal antibody recognizes SLP-76, regardless of phosphorylation status.

560058 Rev. 2
格式详情
Down Arrow Up Arrow
PE
R-Phycoerythrin (PE), is part of the BD family of Phycobiliprotein dyes. This fluorochrome is a multimeric fluorescent phycobiliprotein with excitation maximum (Ex Max) of 496 nm and 566 nm and an emission maximum (Em Max) at 576 nm. PE is designed to be excited by the Blue (488 nm), Green (532 nm) and Yellow-Green (561 nm) lasers and detected using an optical filter centered near 575 nm (e.g., a 575/26-nm bandpass filter). As PE is excited by multiple lasers, this can result in cross-laser excitation and fluorescence spillover on instruments with various combinations of Blue, Green, and Yellow-Green lasers. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
PE
Yellow-Green 488 nm, 532 nm, 561 nm
496 nm, 566 nm
576 nm
560058 Rev.2
报价单和参考
Down Arrow Up Arrow

研发参考 (5)

  1. Bonilla FA, Fujita RM, Pivniouk VI, Chan AC, Geha RS. Adapter proteins SLP-76 and BLNK both are expressed by murine macrophages and are linked to signaling via Fcγ receptors I and II/III. Proc Natl Acad Sci U S A. 2000; 97(4):1725-1730. (Clone-specific: Immunoprecipitation).
  2. Fang N, Motto DG, Ross SE, Koretzky GA. Tyrosines 113, 128, and 145 of SLP-76 are required for optimal augmentation of NFAT promoter activity. J Immunol. 1996; 157:3769-3773. (Biology). 查看参考
  3. Janssen E, Zhang W. Adaptor proteins in lymphocyte activation. Curr Opin Immunol. 2003; 15:269-276. (Biology). 查看参考
  4. Wardenburg JB, Fu C, Jackman JK, et al. Phosphorylation of SLP-76 by the ZAP-70 protein-tyrosine kinase is required for T-cell receptor function. J Biol Chem. 1996; 271(33):19641-19644. (Immunogen: Immunoprecipitation, Western blot).
  5. Wu JN, Koretzky GA. The SLP-76 family of adapter proteins. Semin Immunol. 2004; 16:379-393. (Biology). 查看参考
查看所有文件 (5) 查看更少内容
560058 Rev. 2

Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
