BB515 Rat Anti-Mouse IL-33 Receptor (ST2)
BB515 Rat Anti-Mouse IL-33 Receptor (ST2)

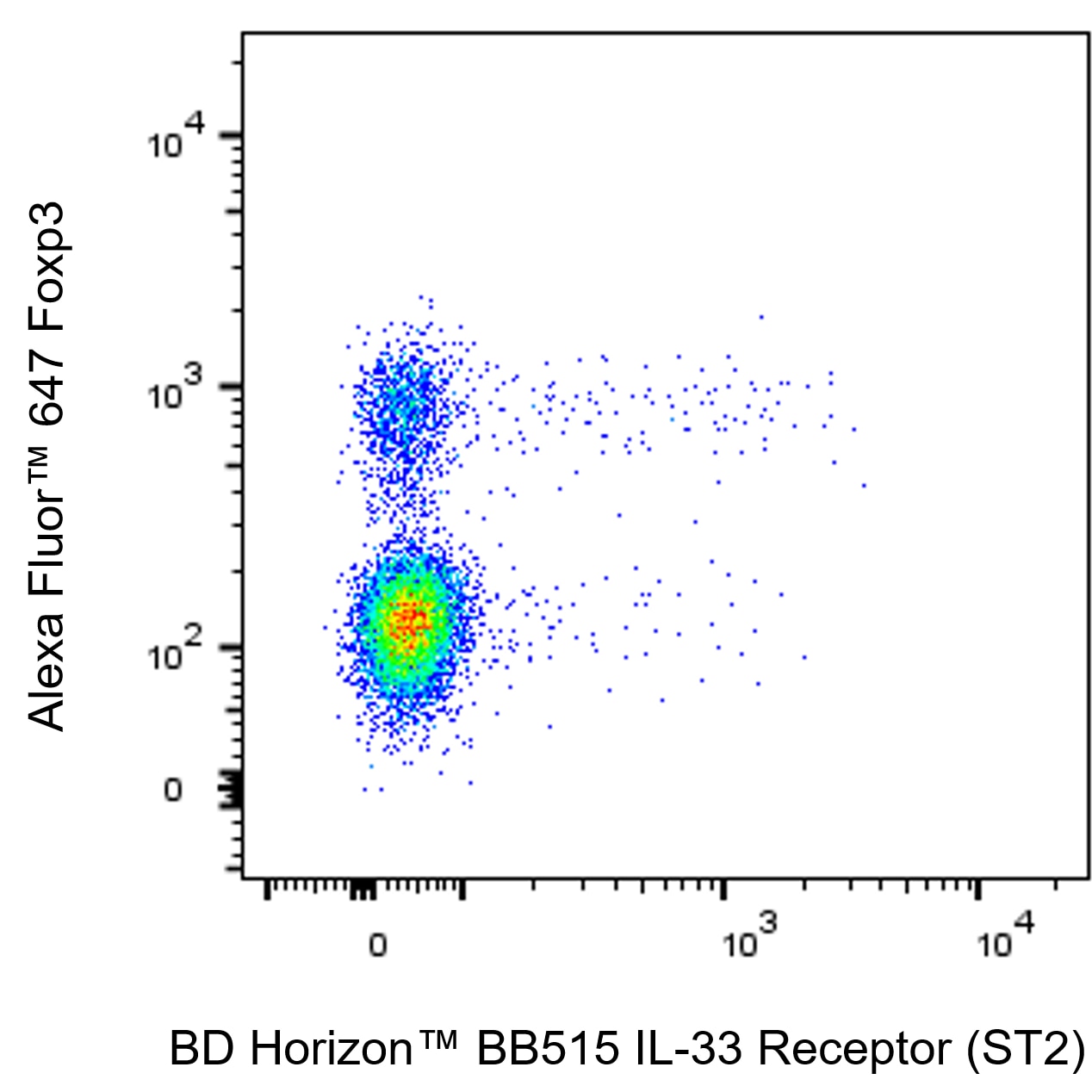

Multicolor flow cytometric analysis of IL-33 Receptor (ST2) expression by Mouse splenic leukocytes.  BALB/c Mouse splenocytes were treated with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899) to lyse erythrocytes, washed and  preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) [Cat No. 553141/553142]. The splenic leukocytes were then stained with BD Horizon™ Fixable Viability Stain 450 (Cat. No. 562247) followed by staining with BD Horizon™ BV711 Rat Anti-Mouse CD4 antibody (Cat. No. 563050) and with either BD Horizon™ BB515 Rat IgG2a, κ Isotype Control (Cat. No. 564418; Left Plot) or BD Horizon™ BB515 Rat Anti-Mouse IL-33 Receptor (ST2) antibody (Cat. No. 570078/570159; Right Plot) at 1 μg/test. The cells were then fixed and permeabilized using the BD Pharmingen™ Transcription Factor Buffer Set (Cat. No. 562574/562725) and stained with Alexa Fluor™ 647 Rat Anti-Mouse Foxp3 (Cat. No. 563486). The bivariate pseudocolor density plot showing the correlated expression of Foxp3 versus IL-33 Receptor (ST2) [or Ig Isotype control staining] was derived from CD4-positive gated events with the forward and side light-scatter characteristics of live cell-discriminated intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.
Multicolor flow cytometric analysis of IL-33 Receptor (ST2) expression by Mouse splenic leukocytes.  BALB/c Mouse splenocytes were treated with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899) to lyse erythrocytes, washed and  preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) [Cat No. 553141/553142]. The splenic leukocytes were then stained with BD Horizon™ Fixable Viability Stain 450 (Cat. No. 562247) followed by staining with BD Horizon™ BV711 Rat Anti-Mouse CD4 antibody (Cat. No. 563050) and with either BD Horizon™ BB515 Rat IgG2a, κ Isotype Control (Cat. No. 564418; Left Plot) or BD Horizon™ BB515 Rat Anti-Mouse IL-33 Receptor (ST2) antibody (Cat. No. 570078/570159; Right Plot) at 1 μg/test. The cells were then fixed and permeabilized using the BD Pharmingen™ Transcription Factor Buffer Set (Cat. No. 562574/562725) and stained with Alexa Fluor™ 647 Rat Anti-Mouse Foxp3 (Cat. No. 563486). The bivariate pseudocolor density plot showing the correlated expression of Foxp3 versus IL-33 Receptor (ST2) [or Ig Isotype control staining] was derived from CD4-positive gated events with the forward and side light-scatter characteristics of live cell-discriminated intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.
商品详情
Down Arrow Up Arrow


BD Horizon™
Il1rl1; ST2; ST2L; IL-33R alpha; IL-33Rα; IL33RA; Ly84; DER4; Fit-1
Mouse (QC Testing)
Rat IgG2a, κ
Mouse IL-33R Recombinant Protein
Flow cytometry (Routinely Tested)
0.2 mg/ml
17082
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO


准备和存储

The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.

推荐的实验流程

   BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation).  When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells.   However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls.  It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

   For optimal and reproducible results, BD Horizon Brilliant™ Stain Buffer should be used anytime BD Horizon Brilliant™ dyes are used in a multicolor flow cytometry panel.  Fluorescent dye interactions may cause staining artifacts which may affect data interpretation.  The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. When BD Horizon Brilliant Stain Buffer is used in in the multicolor panel, it should also be used in the corresponding compensation controls for all dyes to achieve the most accurate compensation. For the most accurate compensation, compensation controls created with either cells or beads should be exposed to BD Horizon Brilliant Stain Buffer for the same length of time as the corresponding multicolor panel. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

For optimal results, it is recommended to perform 2 washes after staining with antibodies. Cells may be prepared, stained with antibodies and washed twice with wash buffer per established protocols for immunofluorescence staining, prior to acquisition on a flow cytometer. Performing fewer than the recommended wash steps may lead to increased spread of the negative population.

商品通知

  1. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  2. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  3. An isotype control should be used at the same concentration as the antibody of interest.
  4. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  5. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  6. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
  7. Alexa Fluor™ is a trademark of Life Technologies Corporation.
  8. For U.S. patents that may apply, see bd.com/patents.
570078 Rev. 1
抗体详情
Down Arrow Up Arrow
U29-93

The U29-93 monoclonal antibody specifically binds to the mouse Interleukin-33 Receptor (IL-33 Receptor, or IL-33R) which is also known as ST2. The IL-33R exists in either a type I transmembrane or soluble glycoprotein form. These IL-33R forms are encoded by the Il1rl1 (Interleukin-1 receptor-like 1) gene which belongs to the IL-1 Receptor family within the Ig superfamily. The IL-33R is expressed by subsets of T cells, including Th2-like cells and some regulatory T cells, as well as some innate lymphocytes, eosinophils, basophils, and mast cells. The IL-33R (also known as the IL-33R alpha subunit, or IL-33Rα) binds IL-33 and complexes with the IL-1R Accessory Protein (IL1RAP) to form a functional signaling receptor complex that can induce the production of T helper type 2 (Th2) cytokines. The soluble IL-33R may function as a decoy receptor which can block the binding of IL-33 to the transmembrane IL-33R. The IL-33R plays roles in inflammation, immunity, and allergy.

570078 Rev. 1
格式详情
Down Arrow Up Arrow
BB515
The BD Horizon Brilliant™ Blue 515 (BB515) dye is part of the BD Horizon Brilliant™ Blue family of dyes. This dye is a polymer fluorochrome with an excitation maximum (Ex Max) at 490-nm and an emission maximum (Em Max) of 515-nm. Driven by BD innovation, BB515 is designed to be excited by the blue laser (488-nm) and detected using an optical filter centered near 520-nm (e.g., 530/30-nm). BB515 reagents are significantly brighter than equivalent FITC or Alexa Fluor™ 488 reagents with less spillover into the PE detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
BB515
Blue 488 nm
490 nm
515 nm
570078 Rev.1
报价单和参考
Down Arrow Up Arrow
View product citations for antibody "570078" on CiteAb

研发参考 (6)

  1. Cottagiri M, Nyandjo M, Stephens M, et al. In drug-induced, immune-mediated hepatitis, interleukin-33 reduces hepatitis and improves survival independently and as a consequence of FoxP3+ T-cell activity.. Cell Mol Immunol. 2019; 16(8):706-717. (Clone-specific: Flow cytometry). 查看参考
  2. Hayakawa H, Hayakawa M, Kume A, Tominaga S. Soluble ST2 blocks interleukin-33 signaling in allergic airway inflammation.. J Biol Chem. 2007; 282(36):26369-80. (Biology). 查看参考
  3. Li A, Herbst RH, Canner D, et al. IL-33 Signaling Alters Regulatory T Cell Diversity in Support of Tumor Development.. Cell Rep. 2019; 29(10):2998-3008.e8. (Clone-specific: Flow cytometry). 查看参考
  4. Matta BM, Lott JM, Mathews LR, et al. IL-33 is an unconventional Alarmin that stimulates IL-2 secretion by dendritic cells to selectively expand IL-33R/ST2+ regulatory T cells.. J Immunol. 2014; 193(8):4010-20. (Biology). 查看参考
  5. Oldenhove G, Boucquey E, Taquin A, et al. PD-1 Is Involved in the Dysregulation of Type 2 Innate Lymphoid Cells in a Murine Model of Obesity.. Cell Rep. 2018; 25(8):2053-2060.e4. (Clone-specific: Flow cytometry). 查看参考
  6. Schiering C, Krausgruber T, Chomka A, et al. The alarmin IL-33 promotes regulatory T-cell function in the intestine.. Nature. 2014; 513(7519):564-8. (Biology). 查看参考
查看所有文件 (6) 查看更少内容
570078 Rev. 1

Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
