BV421 Mouse Anti-Mouse CD28
BV421 Mouse Anti-Mouse CD28

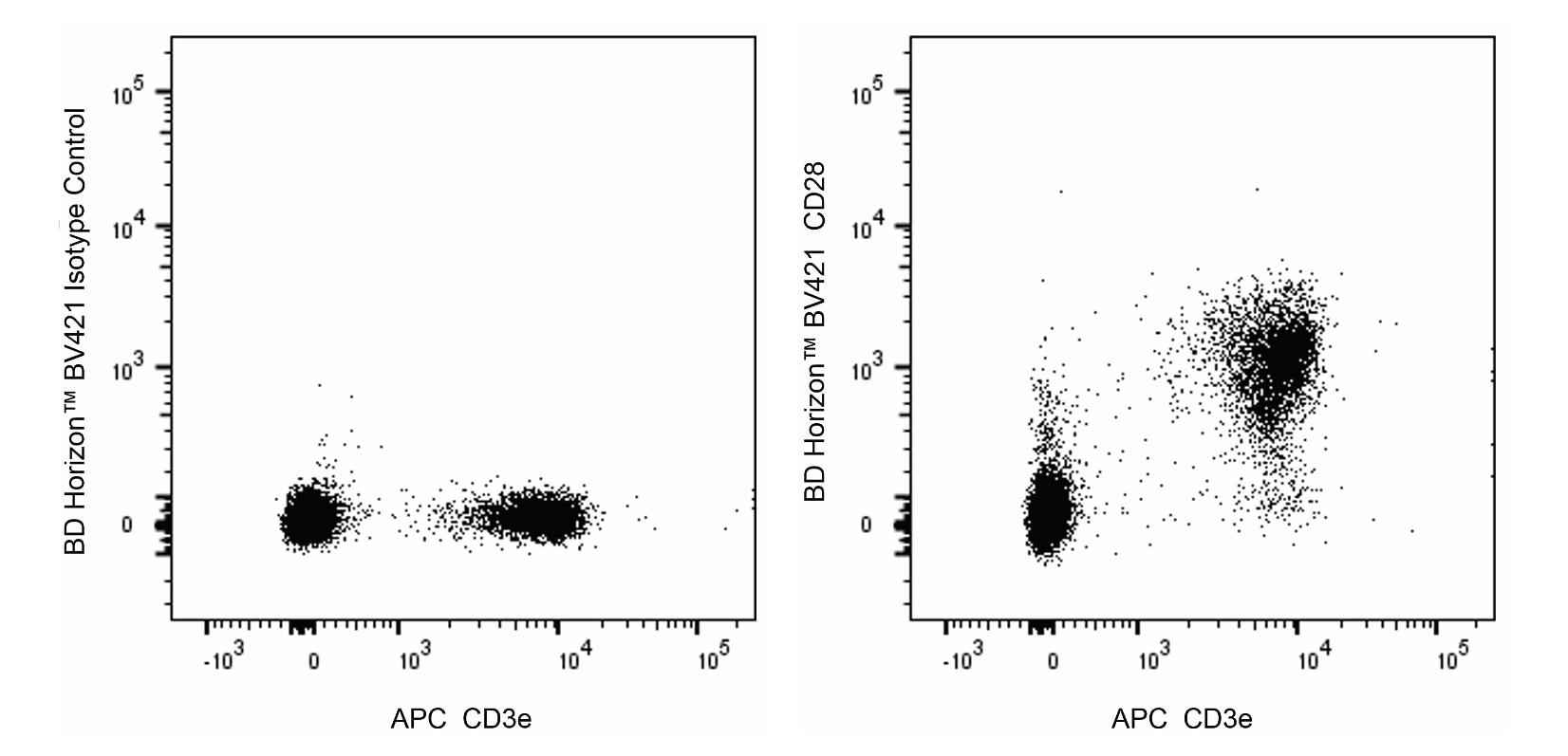

Two-color flow cytometric analysis of CD28 expression on mouse splenocytes. BALB/c mouse spleen cells were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) (Cat. No. 553141/553142). The cells were then stained with APC Hamster Anti-Mouse CD3e antibody (Cat. No. 553066/561826) and either BD Horizon™ BV421 Mouse IgG2b, κ Isotype Control (Cat. No. 562748; Left Plot) or BD Horizon BV421 Mouse Anti-CD28 antibody (Cat. No. 566816; Right Plot) at 0.5 μg/test. A two-color flow cytometric dot plot showing the correlated expression of CD3e versus CD28 (or Ig Isotype control staining) was derived from gated events with the forward and side light-scatter characteristics of viable leucocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
Two-color flow cytometric analysis of CD28 expression on mouse splenocytes. BALB/c mouse spleen cells were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) (Cat. No. 553141/553142). The cells were then stained with APC Hamster Anti-Mouse CD3e antibody (Cat. No. 553066/561826) and either BD Horizon™ BV421 Mouse IgG2b, κ Isotype Control (Cat. No. 562748; Left Plot) or BD Horizon BV421 Mouse Anti-CD28 antibody (Cat. No. 566816; Right Plot) at 0.5 μg/test. A two-color flow cytometric dot plot showing the correlated expression of CD3e versus CD28 (or Ig Isotype control staining) was derived from gated events with the forward and side light-scatter characteristics of viable leucocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
製品詳細
Down Arrow Up Arrow


BD Horizon™
Cd28; T-cell-specific surface glycoprotein CD28
Mouse (QC Testing)
Mouse IgG2b, κ
Mouse CD28
Flow cytometry (Routinely Tested)
0.2 mg/ml
AB_2869883
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO


Preparation and Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed.

推奨アッセイ手順

        BD™ CompBeads can be used as surrogates to assess fluorescence spillover (Compensation).  When fluorochrome-conjugated antibodies are bound to CompBeads, they have spectral properties very similar to cells.   However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls.  It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and CompBead to ensure that BD Comp beads are appropriate for your specific cellular application.

       For optimal and reproducible results, BD Horizon Brilliant Stain Buffer should be used anytime two or more BD Horizon Brilliant dyes are used in the same experiment.  Fluorescent dye interactions may cause staining artifacts which may affect data interpretation.  The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions.  More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

Product Notices

  1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  2. An isotype control should be used at the same concentration as the antibody of interest.
  3. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
  4. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  5. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  6. Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
  7. BD Horizon Brilliant Violet 421 is covered by one or more of the following US patents: 8,158,444; 8,362,193; 8,575,303; 8,354,239.
  8. BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
  9. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
  10. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.

関連製品

Purified Rat Anti-Mouse CD16/CD32 (Mouse BD Fc Block™) RUO
サイズ 0.1 mg カタログ番号 553141
sampleImage/
Purified Rat Anti-Mouse CD16/CD32 (Mouse BD Fc Block™) RUO
サイズ 0.5 mg カタログ番号 553142
sampleImage/
Brilliant Stain Buffer RUO
サイズ 100 Tests カタログ番号 563794
sampleImage/
Brilliant Stain Buffer RUO
サイズ 1000 Tests カタログ番号 566349
sampleImage/
Brilliant Stain Buffer Plus RUO
サイズ 1000 Tests カタログ番号 566385
sampleImage/
Stain Buffer (FBS) RUO
サイズ 500 mL カタログ番号 554656
sampleImage/
566816 Rev. 2
抗体の詳細
Down Arrow Up Arrow
E18

The E18 monoclonal antibody specifically recognizes CD28 that is encoded by Cd28 (CD28 antigen) which belongs to the immunoglobulin gene superfamily. CD28 is a ~45 kDa type I transmembrane glycoprotein that can be expressed as a disulfide-linked homodimer. The extracellular region of CD28 contains an IgV-like domain which is followed by a transmembrane region and a cytoplasmic domain. CD28 is expressed on thymocytes, most peripheral CD4+ T cells and CD8+ T cells, NK cells, and plasmacytoid dendritic cells. CD28 functions as a costimulatory receptor upon binding ligands that include CD80 (B7-1) and CD86 (B7-2) that are expressed on antigen presenting cells and B cells. CD28-mediated costimulation augments the proliferation and cytokine production of activated T and NK cells, provides a costimulatory signal for CTL induction, and promotes T cell survival. There is considerable evidence that CD28 is a costimulatory receptor involved in many, but not all, T cell-dependent immune responses. The E18 antibody reportedly blocks the binding of B7 antigens to CD28 and can costimulate T cell activation and proliferation. Spleen cells from a CD28-deficient mouse that was immunized with mouse CD28 were used to generate the hybridoma that secretes the E18 antibody.



The antibody was conjugated to BD Horizon BV421 which is part of the BD Horizon Brilliant™ Violet family of dyes. With an Ex Max near 407 nm and Em Max near 421 nm, BD Horizon BV421 can be excited by the violet laser (405 nm) and detected with a 450/50 nm filter. BD Horizon BV421 conjugates are very bright, often exhibiting a 10-fold improvement in brightness compared to Pacific Blue™ conjugates. Due to nearly identical excitation and emission properties but different spillover characteristics, BD Horizon BV421, Pacific Blue, and BD Horizon V450 cannot be used simultaneously.

566816 Rev. 2
フォーマットの詳細
Down Arrow Up Arrow
BV421
The BD Horizon Brilliant Violet™ 421 (BV421) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This polymer-technology based dye has an excitation maximum (Ex Max) of 407-nm and an emission maximum (Em Max) at 423-nm. Driven by BD innovation, BV421 is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 420-nm (e.g., a 431/28-nm or 450/50-nm bandpass filter). BV421 is an ideal alternative for V450 as it is approximately ten times brighter with less spillover into the BV510/V500 detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
BV421
Violet 405 nm
407 nm
423 nm
566816 Rev.2
引用&参考文献
Down Arrow Up Arrow
View product citations for antibody "566816" on CiteAb

Development References (3)

  1. Beyersdorf N, Ding X, Blank G, Dennehy KM, Kerkau T, Hünig T. Protection from graft-versus-host disease with a novel B7 binding site-specific mouse anti-mouse CD28 monoclonal antibody.. Blood. 2008; 112(10):4328-36. (Clone-specific: Blocking, Functional assay). View Reference
  2. Dennehy KM, Elias F, Zeder-Lutz G, et al. Cutting edge: monovalency of CD28 maintains the antigen dependence of T cell costimulatory responses.. J Immunol. 2006; 176(10):5725-9. (Immunogen: Flow cytometry). View Reference
  3. Macal M, Tam MA, Hesser C, et al. CD28 Deficiency Enhances Type I IFN Production by Murine Plasmacytoid Dendritic Cells. J Immunol. 2016; 196(4):1900-1909. (Clone-specific: Flow cytometry). View Reference
566816 Rev. 2
