Alexa Fluor™ 488 Mouse Anti-Human CD163

BD Pharmingen™ Alexa Fluor™ 488 Mouse Anti-Human CD163

Name: Alexa Fluor™ 488 Mouse Anti-Human CD163
Brand: Alexa Fluor™ 488 Mouse Anti-Human CD163
SKU: 568187

Clone MAC2-158 (also known as Mac 2-158; Mac-2–158) (RUO)

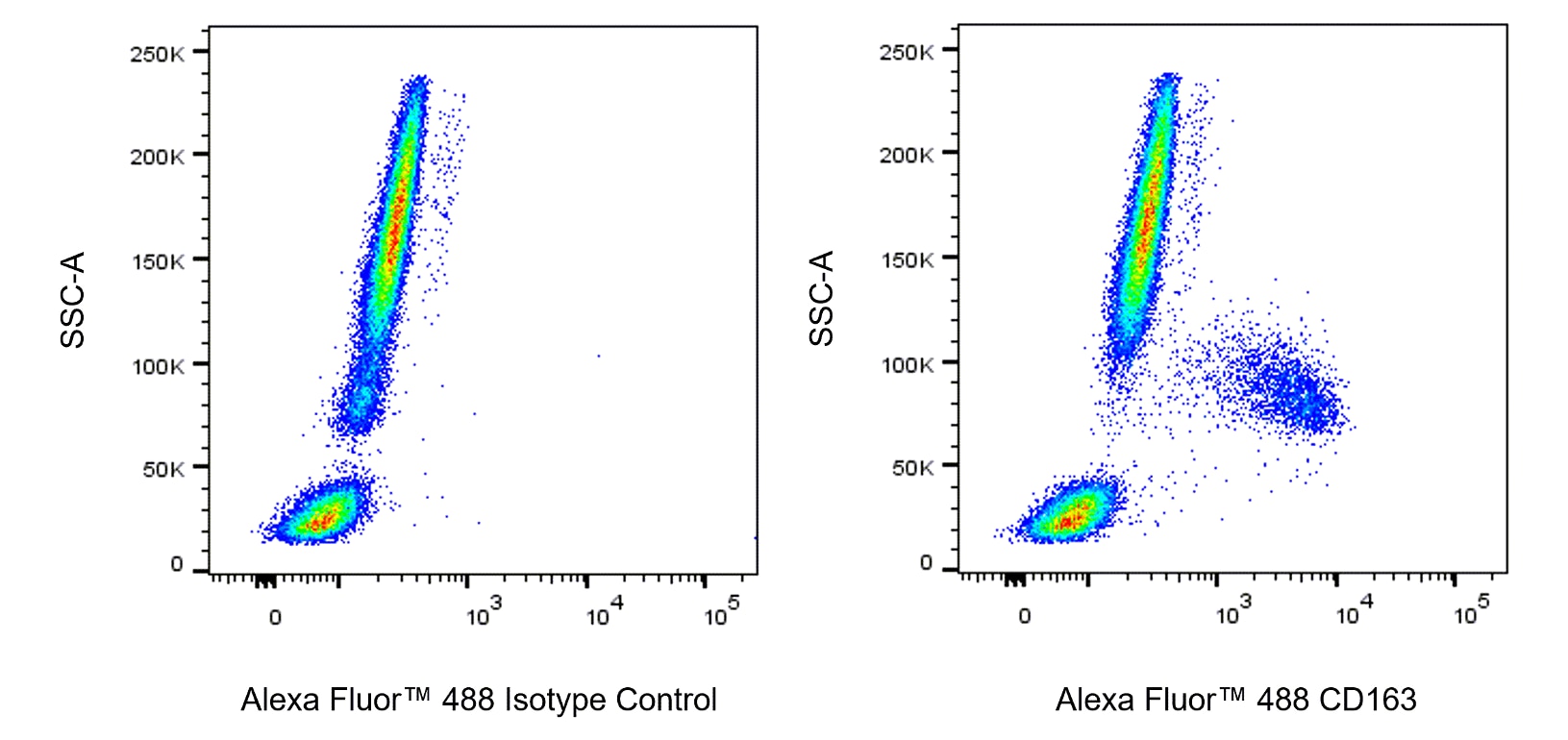

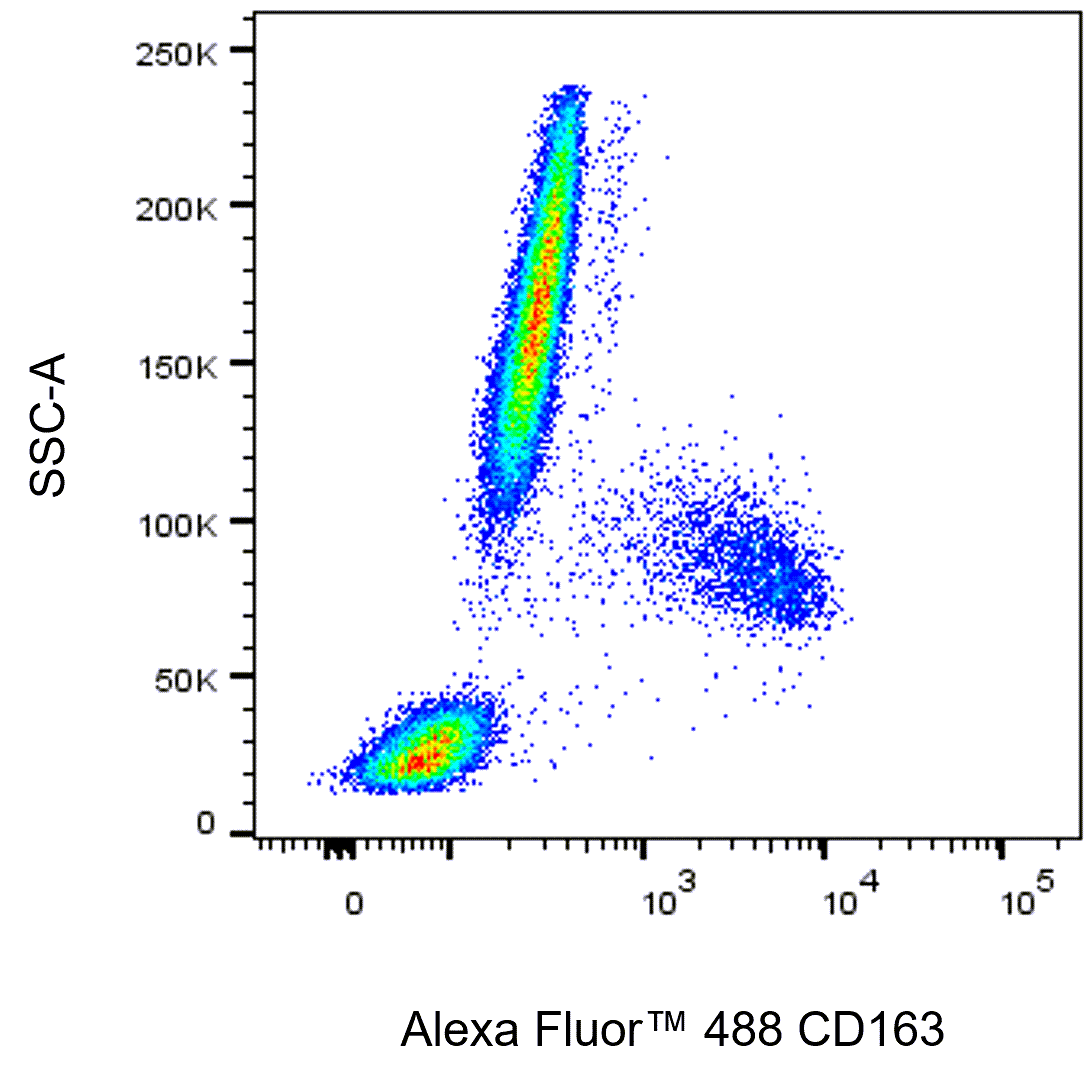

Multiparameter flow cytometric analysis of CD163 expression on human peripheral blood leucocyte populations. Human whole blood was stained with either Alexa Fluor™ 488 Mouse IgG1, κ Isotype Control (Cat. No. 565572; Left Plot) or Alexa Fluor™ 488 Mouse Anti-Human CD163 antibody (Cat. No. 568187/568188; Right Plot). Erythrocytes were lysed with BD FACS Lysing™ Solution (Cat. No. 349202). The pseudocolor density plot showing the correlated expression of CD163 (or Ig Isotype control staining) versus side light-scatter (SSC-A) signals was derived from gated events with the forward and side light-scatter characteristics of intact leucocyte populations. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software.

Spectrum Viewer

Protocol Library

Scientific Resources

Product Details

Brand: BD Pharmingen™

Alternative Name: CD163; HbSR; M130;MM130;SCARI1;SR-I1

Reactivity: Human (QC Testing)

Isotype: Mouse BALB/c IgG1, κ

Immunogen: Human Monocytes

Application: Flow cytometry (Routinely Tested)

Vol. Per Test: 5 µl

RRID: AB_3684107

Storage Buffer: Aqueous buffered solution containing BSA and ≤0.09% sodium azide.

Regulatory Status: RUO

Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unreacted dye was removed.

Recommended Assay Procedures

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

Product Notices

Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Alexa Fluor® 488 fluorochrome emission is collected at the same instrument settings as for fluorescein isothiocyanate (FITC).
Source of all serum proteins is from USDA inspected abattoirs located in the United States.
Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
An isotype control should be used at the same concentration as the antibody of interest.
This product is provided under an intellectual property license between Life Technologies Corporation and BD Businesses. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The buyer cannot sell or otherwise transfer (a) this product (b) its components or (c) materials made using this product or its components to a third party or otherwise use this product or its components or materials made using this product or its components for Commercial Purposes. Commercial Purposes means any activity by a party for consideration and may include, but is not limited to: (1) use of the product or its components in manufacturing; (2) use of the product or its components to provide a service, information, or data; (3) use of the product or its components for therapeutic, diagnostic or prophylactic purposes; or (4) resale of the product or its components, whether or not such product or its components are resold for use in research. For information on purchasing a license to this product for any other use, contact Life Technologies Corporation, Cell Analysis Business Unit Business Development, 29851 Willow Creek Road, Eugene, OR 97402, USA, Tel: (541) 465-8300. Fax: (541) 335-0504.
Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
Alexa Fluor™ is a trademark of Life Technologies Corporation.

Companion Products

Stain Buffer (BSA) RUO

Size 500 ML Cat No. 554657

Stain Buffer (FBS) RUO

Size 500 ML Cat No. 554656

Alexa Fluor® 488 Mouse IgG1 κ Isotype Control RUO

Size 50 µg Cat No. 565572

Lysing Buffer RUO

Size 100 ML Cat No. 555899

Lysing Solution 10X Concentrate IVD

Size 100 ML Cat No. 349202

568187 Rev. 1

Antibody Details

MAC2-158

The MAC2-158 monoclonal antibody (also known as Clone MAC 2-158) specifically binds to human CD163. CD163 is also known as Scavenger receptor cysteine-rich type 1 protein M130 (M130), SCARI1 (SR-I1), or Hemoglobin scavenger receptor (HbSR). CD163 is an ~130 kDa type I transmembrane glycoprotein comprised of an extracellular domain with nine cysteine-rich (SRCR) scavenger receptor class B domains followed by a transmembrane region and a short cytoplasmic tail. CD163 is expressed on most peripheral blood monocytes, tissue macrophages, and a subset of dendritic cells. CD163 serves as a high affinity receptor for hemoglobin and haptoglobin and mediates endocytosis of hemoglobin and haptoglobin complexes by macrophages. This scavenging function may protect tissues from hemoglobin-mediated oxidative damage and contribute to the uptake and recycling of iron. CD163 can also reportedly bind to (TNF-a)-like weak inducer of the apoptosis (TWEAK) protein and some pathogenic bacteria. A cleaved, soluble form of CD163 can reportedly play an anti-inflammatory role and serve as a marker for macrophage activation in inflammatory responses. High-affinity binding of the MAC2-158 antibody to CD163 is reportedly unaffected by extracellular calcium levels. This clone can be used to measure CD163 expression in freshly drawn whole blood samples stabilized with commonly used anticoagulants, eg, EDTA, citrate or heparin.

568187 Rev. 1

Format Details

Alexa Fluor™ 488

Alexa Fluor™ 488 Dye is part of the BD blue family of dyes. This is a small organic fluorochrome with an excitation maximum (Ex Max) at 494-nm and an emission maximum (Em Max) at 517-nm. Alexa Fluor™ 488 is designed to be excited by the Blue laser (488 nm) and detected using an optical filter centered near 520-nm (e.g., a 530/30-nm bandpass filter). Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.

Format: Alexa Fluor™ 488

Excitation Max: 494 nm

Emission Max: 517 nm

568187 Rev.1

Citations & References

View product citations for antibody "568187" on CiteAb

Development References (8)

Bover LC, Cardó-Vila M, Kuniyasu A, et al. A previously unrecognized protein-protein interaction between TWEAK and CD163: potential biological implications.. J Immunol. 2007; 178(12):8183-94. (Biology). View Reference
Etzerodt A, Moestrup SK. CD163 and inflammation: biological, diagnostic, and therapeutic aspects.. Antioxid Redox Signal. 2013; 18(17):2352-63. (Biology). View Reference
Fabriek BO, van Bruggen R, Deng DM, et al. The macrophage scavenger receptor CD163 functions as an innate immune sensor for bacteria.. Blood. 2009; 113(4):887-92. (Biology). View Reference
Högger P, Sorg C. Soluble CD163 inhibits phorbol ester-induced lymphocyte proliferation.. Biochem Biophys Res Commun. 2001; 288(4):841-3. (Biology). View Reference
Jensen AL, Collins J, Shipman EP, Wira CR, Guyre PM, Pioli PA. A subset of human uterine endometrial macrophages is alternatively activated.. Am J Reprod Immunol. 2012; 68(5):374-86. (Clone-specific: Flow cytometry). View Reference
Maniecki MB, Etzerodt A, Moestrup S, Møller J, Graversen J. Comparative assessment of the recognition of domain-specific CD163 monoclonal antibodies in human monocytes explains wide discrepancy in reported levels of cellular surface CD163 expression. Immunobiology. 2011; 216(8):882-890. (Clone-specific: Flow cytometry). View Reference
Morganelli PM, Guyre PM. IFN-gamma plus glucocorticoids stimulate the expression of a newly identified human mononuclear phagocyte-specific antigen.. J Immunol. 1988; 140(7):2296-304. (Immunogen: Flow cytometry, Immunoprecipitation, Radioimmunoassay). View Reference
PrabhuDas MR, Baldwin CL, Bollyky PL, et al. A Consensus Definitive Classification of Scavenger Receptors and Their Roles in Health and Disease.. J Immunol. 2017; 198(10):3775-3789. (Biology). View Reference

View All (8)
