BD Horizon™ RB780 Streptavidin

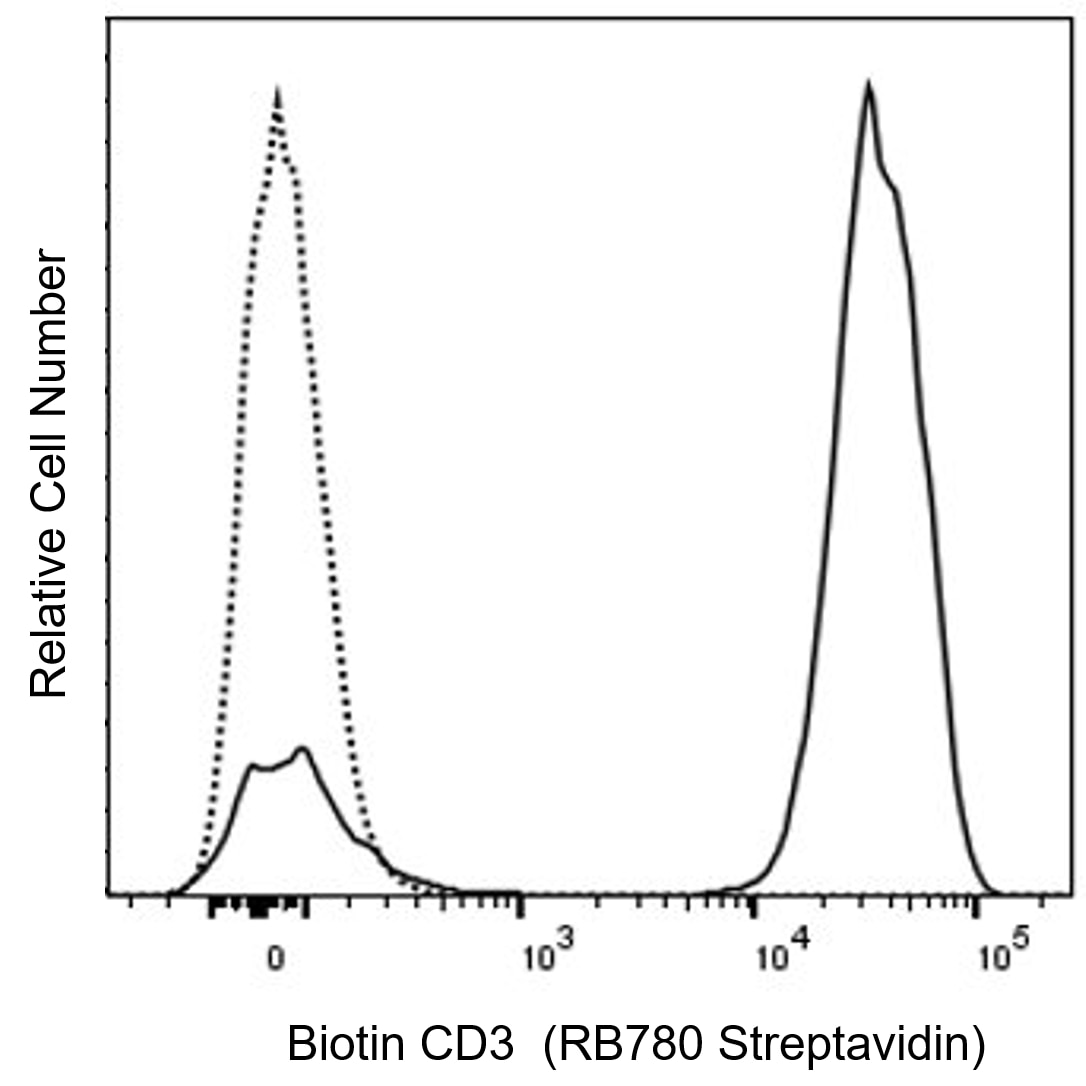

Flow cytometric analysis of CD3 expression on Human peripheral blood lymphocytes. Human whole blood was treated with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899) to lyse erythrocytes. Leukocytes were then either not labeled (dashed line histogram) or were labeled (solid line histogram) with Biotin Mouse Anti-Human CD3 antibody (Cat. No. 555331). The cells were then washed and secondarily stained with BD Horizon™ RB780 Streptavidin (Cat. No. 570517). The flow cytometric histogram showing CD3 expression (or unlabeled control staining) was derived from gated events with the forward and side light-scatter characteristics of viable lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony™ A5 SE Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.

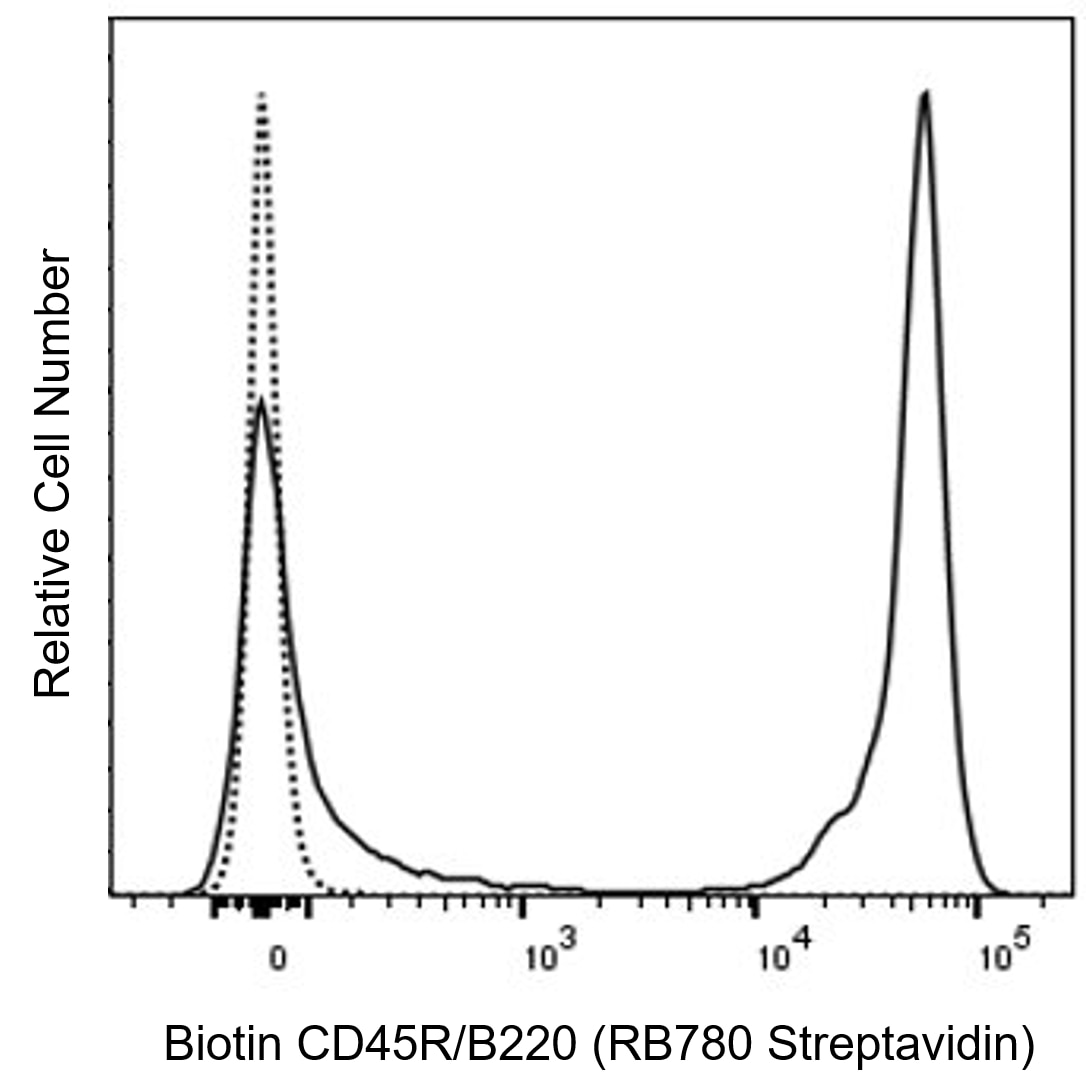

Flow cytometric analysis of CD45R/B220 expression on Mouse splenic leukocytes. Mouse splenic leukocytes were either not labeled (dashed line histogram) or were labeled (solid line histogram) with Biotin Rat Anti-Mouse CD45R/B220 antibody (Cat. No. 553085/553086). The cells were then washed and secondarily stained with BD Horizon™ RB780 Streptavidin (Cat. No. 570516). The flow cytometric histogram showing CD45R/B220 expression (or unlabeled control staining) was derived from gated events with the forward and side light-scatter characteristics of viable splenic leukocytes. Flow cytometry and data analysis were performed using a BD FACSymphony™ A5 SE Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.
.png){kind=spacer}
Flow cytometric analysis of CD3 expression on Human peripheral blood lymphocytes. Human whole blood was treated with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899) to lyse erythrocytes. Leukocytes were then either not labeled (dashed line histogram) or were labeled (solid line histogram) with Biotin Mouse Anti-Human CD3 antibody (Cat. No. 555331). The cells were then washed and secondarily stained with BD Horizon™ RB780 Streptavidin (Cat. No. 570517). The flow cytometric histogram showing CD3 expression (or unlabeled control staining) was derived from gated events with the forward and side light-scatter characteristics of viable lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony™ A5 SE Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.
Flow cytometric analysis of CD45R/B220 expression on Mouse splenic leukocytes. Mouse splenic leukocytes were either not labeled (dashed line histogram) or were labeled (solid line histogram) with Biotin Rat Anti-Mouse CD45R/B220 antibody (Cat. No. 553085/553086). The cells were then washed and secondarily stained with BD Horizon™ RB780 Streptavidin (Cat. No. 570516). The flow cytometric histogram showing CD45R/B220 expression (or unlabeled control staining) was derived from gated events with the forward and side light-scatter characteristics of viable splenic leukocytes. Flow cytometry and data analysis were performed using a BD FACSymphony™ A5 SE Cell Analyzer System and FlowJo™ Software. Data shown on this Technical Data Sheet are not lot specific.
Preparation And Storage
Product Notices
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
- Since applications vary, each investigator should titrate the reagent to obtain optimal results.
- Please observe the following precautions: We recommend that special precautions be taken (such as wrapping vials, tubes, or racks in aluminum foil) to protect exposure of conjugated reagents, including cells stained with those reagents, to any room illumination. Absorption of visible light can significantly affect the emission spectra and quantum yield of tandem fluorochrome conjugates.
- Cy is a trademark of Global Life Sciences Solutions Germany GmbH or an affiliate doing business as Cytiva.
- Human donor specific background has been observed in relation to the presence of anti-polyethylene glycol (PEG) antibodies, developed as a result of certain vaccines containing PEG, including some COVID-19 vaccines. We recommend use of BD Horizon Brilliant™ Stain Buffer in your experiments to help mitigate potential background. For more information visit https://www.bdbiosciences.com/en-us/support/product-notices.
- When using high concentrations of antibody, background binding of this dye to erythroid fragments produced by ammonium chloride-based lysis, such as with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899), has been observed when the antibody conjugate was present during the lysis procedure. This may cause nonspecific staining of target cells, such as leukocytes, which have bound the resulting erythroid fragments. This background can be mitigated by any of the following: titrating the antibody conjugate to a lower concentration, fixing samples with formaldehyde, or removing erythrocytes before staining (eg, gradient centrifugation or pre-lysis with wash). This background has not been observed when cells were lysed with BD FACS™ Lysing Solution (Cat. No. 349202) after staining.
- Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
- For U.S. patents that may apply, see bd.com/patents.
Companion Products
Streptavidin is a non-glycosylated protein that is prepared chromatographically from the bacterium Streptomyces avidinii. Streptavidin homotetramers have a particularly high, non-covalent binding affinity for biotin. When conjugated with fluorochromes, streptavidin has been widely used with biotin-conjugated antibodies and other biotinylated specific-binding molecules (eg, recombinant proteins and lectins) to stain cells and tissues for subsequent multiparameter analysis by flow cytometry, fluorescence microscopy and imaging. Likewise, when conjugated with an enzyme (eg, Horseradish Peroxidase or Alkaline Phosphatase) and coupled with a colorimetric or luminescent substrate development system, streptavidin has found widespread use along with biotinylated antibodies in a number of applications including Western blot, ELISA, ELISPOT, immunocytochemistry and immunohistochemistry.
Streptavidin was conjugated to BD Horizon™ RB780 which is part of the BD® family of blue dyes.
Development References (2)
-
Diamandis EP, Christopoulos TK. The biotin-(strept)avidin system: principles and applications in biotechnology. Clin Chem. 1991; 37(5):625-636. (Biology). View Reference
-
Shapiro HM. Practical flow cytometry, 4th ed.. Hoboken, N.J.: Wiley-Liss; 2003:1-681.
Please refer to Support Documents for Quality Certificates
Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described
Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
