BV421 Rat Anti-Mouse LPAM-1
BV421 Rat Anti-Mouse LPAM-1

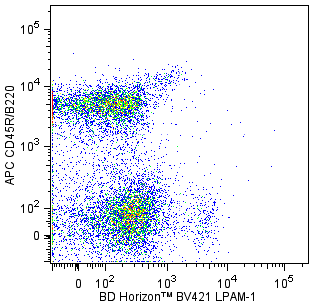

Multicolor flow cytometric analysis of LPAM-1 expression on C57BL/6 mouse bone marrow cells. Bone Marrow cells were stained with APC Rat Anti-Mouse CD45R/B220 antibody (Cat. No. 553092/561880) and with either BD Horizon™ BV421 Rat IgG2a, κ Isotype Control (Cat. No. 562302; Left Panel) or BD Horizon™ BV421 Rat Anti-Mouse LPAM-1 antibody (Cat. No. 562943; Right Panel). Two-color flow cytometric dot plots show the correlated expression patterns of LPAM-1 (or Ig Isotype control staining) versus CD45R/B220 for gated events with the forward and side light-scatter characteristics of viable bone marrow cells. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Multicolor flow cytometric analysis of LPAM-1 expression on C57BL/6 mouse bone marrow cells. Bone Marrow cells were stained with APC Rat Anti-Mouse CD45R/B220 antibody (Cat. No. 553092/561880) and with either BD Horizon™ BV421 Rat IgG2a, κ Isotype Control (Cat. No. 562302; Left Panel) or BD Horizon™ BV421 Rat Anti-Mouse LPAM-1 antibody (Cat. No. 562943; Right Panel). Two-color flow cytometric dot plots show the correlated expression patterns of LPAM-1 (or Ig Isotype control staining) versus CD45R/B220 for gated events with the forward and side light-scatter characteristics of viable bone marrow cells. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Product Details
Down Arrow Up Arrow


BD Horizon™
Itga4Itgb7; α4β7 Integrin; alpha 4 beta 7 integrin; CD49dβ7
Mouse (QC Testing)
Rat F344, also known as Fischer, CDF IgG2a, κ
AKR/Cum mouse T lymphoma line TK1
Flow cytometry (Routinely Tested)
0.2 mg/ml
AB_2737909
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO


Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with BD Horizon BV421 under optimum conditions, and unconjugated antibody and free BD Horizon BV421 were removed.

Product Notices

  1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  2. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
  3. An isotype control should be used at the same concentration as the antibody of interest.
  4. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  5. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  6. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  7. Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
  8. Brilliant Violet™ 421 is a trademark of Sirigen.
562943 Rev. 1
Antibody Details
Down Arrow Up Arrow
DATK32

The DATK32 monoclonal antibody specifically binds to an epitope specific for the α4β7 integrin heterodimer.  α4β7 (LPAM-1) is expressed on most mature lymphocytes and on small subsets of thymic and bone marrow cells.  It interacts with several ligands, including VCAM-1 (CD106), fibronectin, and MAdCAM-1.  DATK32  antibody induces α4β7-dependent lymphocyte aggregation, but it inhibits other α4β7- mediated lymphocyte adhesion events, including binding to fibronectin, MAdCAM-1, and VCAM-1 (CD106).

The antibody was conjugated to BD Horizon™ BV421 which is part of the BD Horizon™ Brilliant Violet™ family of dyes.  With an Ex Max of 407-nm and Em Max at 421-nm, BD Horizon™ BV421  can be excited by the violet laser and detected in the standard Pacific Blue™ filter set (eg, 450/50-nm filter). BD Horizon™ BV421  conjugates are very bright, often exhibiting a 10 fold improvement in brightness compared to Pacific Blue™ conjugates.

562943 Rev. 1
Format Details
Down Arrow Up Arrow
BV421
The BD Horizon Brilliant Violet™ 421 (BV421) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This polymer-technology based dye has an excitation maximum (Ex Max) of 407-nm and an emission maximum (Em Max) at 423-nm. Driven by BD innovation, BV421 is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 420-nm (e.g., a 431/28-nm or 450/50-nm bandpass filter). BV421 is an ideal alternative for V450 as it is approximately ten times brighter with less spillover into the BV510/V500 detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
BV421
Violet 405 nm
407 nm
423 nm
562943 Rev.1
Citations & References
Down Arrow Up Arrow

Development References (5)

  1. Andrew DP, Berlin C, Honda S, et al. Distinct but overlapping epitopes are involved in alpha 4 beta 7-mediated adhesion to vascular cell adhesion molecule-1, mucosal addressin-1, fibronectin, and lymphocyte aggregation. J Immunol. 1994; 153(9):3847-3861. (Immunogen: Blocking, Induction). View Reference
  2. Andrew DP, Rott LS, Kilshaw PJ, Butcher EC. Distribution of alpha 4 beta 7 and alpha E beta 7 integrins on thymocytes, intestinal epithelial lymphocytes and peripheral lymphocytes. Eur J Immunol. 1996; 26(4):897-905. (Clone-specific: Blocking). View Reference
  3. Berlin C, Berg EL, Briskin MJ, et al. Alpha 4 beta 7 integrin mediates lymphocyte binding to the mucosal vascular addressin MAdCAM-1. Cell. 1993; 74(1):185-195. (Clone-specific: Blocking). View Reference
  4. Hamann A, Andrew DP, Jablonski-Westrich D, Holzmann B, Butcher EC. Role of alpha 4-integrins in lymphocyte homing to mucosal tissues in vivo. J Immunol. 1994; 152(7):3282-3293. (Clone-specific). View Reference
  5. Kilshaw PJ, Murant SJ. Expression and regulation of beta 7(beta p) integrins on mouse lymphocytes: relevance to the mucosal immune system. Eur J Immunol. 1991; 21(10):2591-2597. (Biology). View Reference
View All (5) View Less
562943 Rev. 1
