      BV711 Hamster Anti-Mouse CD11c (Integrin αX)
      BV711 Hamster Anti-Mouse CD11c (Integrin αX)

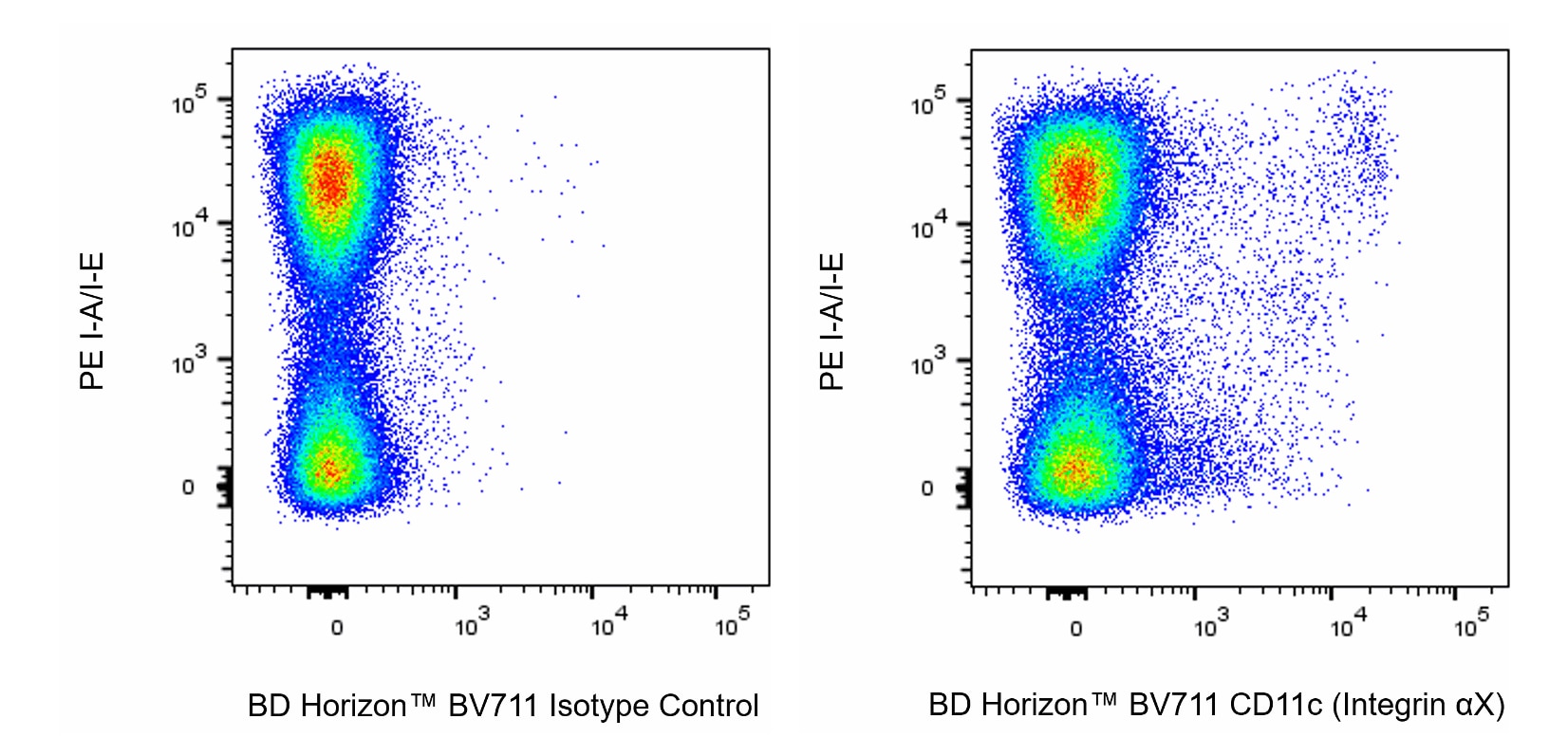

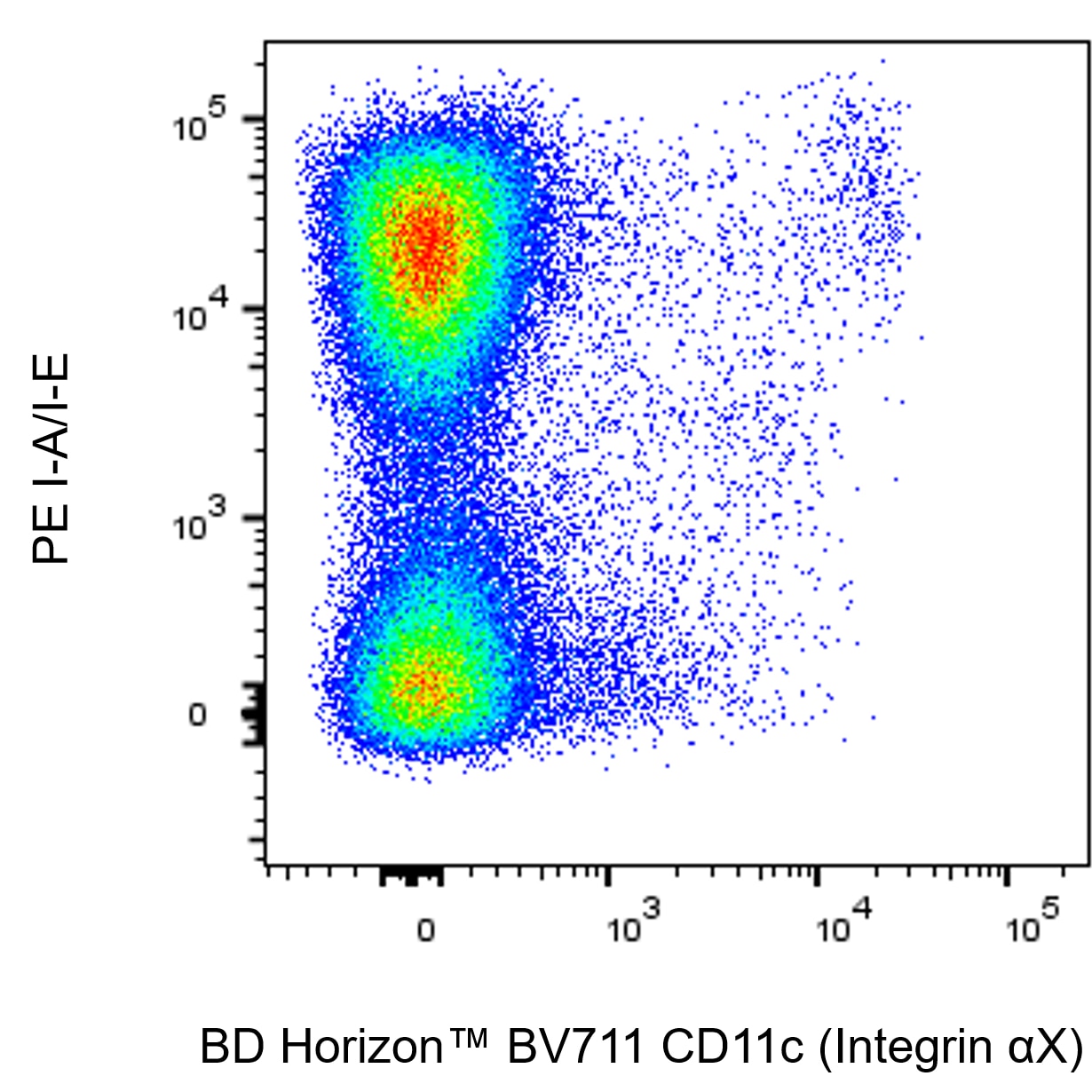

      Multicolor flow cytometric analysis of CD11c (Integrin αX) expression on viable Mouse splenic leukocytes.  C57BL/6 Mouse splenocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) [Cat. No. 553141/553142]. The cells were then stained with PE Rat Anti-Mouse I-A/I-E antibody (Cat. No. 557000) and with either BD Horizon™ BV711 Hamster IgG2, λ1 Isotype Control (Cat. No. 563348; Left Plot) or BD Horizon™ BV711 Hamster Anti-Mouse CD11c (Integrin αX) antibody (Cat. No. 568971/568972; Right Plot) at 0.5 µg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. The bivariate pseudocolor density plot showing the correlated expression of CD11c (Integrin αX) [or Ig Isotype control staining] versus I-A/I-E was derived from gated events with the forward and side light-scatter characteristics of viable (DAPI-negative) splenic leukocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
      BV711 Hamster Anti-Mouse CD11c (Integrin αX)
      Multicolor flow cytometric analysis of CD11c (Integrin αX) expression on viable Mouse splenic leukocytes.  C57BL/6 Mouse splenocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody (Mouse BD Fc Block™) [Cat. No. 553141/553142]. The cells were then stained with PE Rat Anti-Mouse I-A/I-E antibody (Cat. No. 557000) and with either BD Horizon™ BV711 Hamster IgG2, λ1 Isotype Control (Cat. No. 563348; Left Plot) or BD Horizon™ BV711 Hamster Anti-Mouse CD11c (Integrin αX) antibody (Cat. No. 568971/568972; Right Plot) at 0.5 µg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. The bivariate pseudocolor density plot showing the correlated expression of CD11c (Integrin αX) [or Ig Isotype control staining] versus I-A/I-E was derived from gated events with the forward and side light-scatter characteristics of viable (DAPI-negative) splenic leukocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
      Product Details
      Down Arrow Up Arrow


      BD Horizon™
      Itgax; Integrin alpha-X; Integrin αX; ITAX; CR4; Complement Receptor 4
      Mouse (QC Testing)
      Armenian Hamster IgG2
      Mouse Dendritic Cells
      Flow cytometry (Routinely Tested)
      0.2 mg/ml
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.
      Show More blue down arrow Show Less blue up arrow

      Recommended Assay Procedures

         BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation).  When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells.  However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls.  It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

         For optimal and reproducible results, BD Horizon Brilliant™ Stain Buffer should be used anytime BD Horizon Brilliant™ dyes are used in a multicolor flow cytometry panel.  Fluorescent dye interactions may cause staining artifacts which may affect data interpretation.  The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. When BD Horizon Brilliant Stain Buffer is used in the multicolor panel, it should also be used in the corresponding compensation controls for all dyes to achieve the most accurate compensation. For the most accurate compensation, compensation controls created with either cells or beads should be exposed to BD Horizon Brilliant Stain Buffer for the same length of time as the corresponding multicolor panel. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      2. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      3. An isotype control should be used at the same concentration as the antibody of interest.
      4. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      5. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      6. BD Horizon Brilliant Violet 711 is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,227,187; 8,455,613; 8,575,303; 8,354,239.
      7. BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
      8. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
      9. For U.S. patents that may apply, see bd.com/patents.
      Show More blue down arrow Show Less blue up arrow
      568972 Rev. 1
      Antibody Details
      Down Arrow Up Arrow
      N418

      The N418 monoclonal antibody specifically binds to CD11c, the Integrin alpha X (Integrin αX, Itgax) chain of the heterodimeric gp150, 95 (CD11c/CD18, αXβ2) integrin that forms the complement receptor 4 (CR4). CD11c is a150 kDa type I transmembrane glycoprotein that is expressed on dendritic cells, CD4-CD8+ intestinal intraepithelial lymphocytes (IEL), and some NK cells and T cells. CD11c expression is upregulated on IEL and T cells following activation. Cells of the monocyte/macrophage lineage have been reported to express low levels of CD11c. The CD11c/CD18 integrin can bind to several ligands including iC3b, fibrinogen, and CD54. This integrin reportedly plays important roles in phagocytosis and in mediating cellular interactions during inflammation.

      568972 Rev. 1
      Format Details
      Down Arrow Up Arrow
      BV711
      The BD Horizon Brilliant Violet™ 711 (BV711) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This tandem fluorochrome is comprised of a BV421 donor with an excitation maximum (Ex Max) of 407-nm and an acceptor dye with an emission maximum (Em Max) at 713-nm. BV711, driven by BD innovation, is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 710-nm (e.g., a 712/20-nm bandpass filter). The acceptor dye can be excited by the Red (628–640-nm) laser resulting in cross-laser excitation and fluorescence spillover. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
      altImg
      BV711
      Violet 405 nm
      407 nm
      713 nm
      568972 Rev.1
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "568972" on CiteAb

      Development References (4)

      1. Crowley MT, Inaba K, Witmer-Pack MD, Gezelter S, Steinman RM. Use of the fluorescence activated cell sorter to enrich dendritic cells from mouse spleen. J Immunol Methods. 1990; 133(1):55-66. (Clone-specific: Flow cytometry, Fluorescence activated cell sorting). View Reference
      2. Metlay JP, Witmer-Pack MD, Agger R, Crowley MT, Lawless D, Steinman RM. The distinct leukocyte integrins of mouse spleen dendritic cells as identified with new hamster monoclonal antibodies. J Exp Med. 1990; 171(5):1753-1771. (Immunogen: Flow cytometry, Immunohistochemistry, Immunoprecipitation). View Reference
      3. Orozco SL, Daniels BP, Yatim N, et al. RIPK3 Activation Leads to Cytokine Synthesis that Continues after Loss of Cell Membrane Integrity.. Cell Rep. 2019; 28(9):2275-2287.e5. (Clone-specific: Flow cytometry). View Reference
      4. Sadhu C, Ting HJ, Lipsky B, et al. CD11c/CD18: novel ligands and a role in delayed-type hypersensitivity. J Leukoc Biol. 2007; 81(6):1395-1403. (Clone-specific: Blocking). View Reference
      View All (4) View Less
      568972 Rev. 1



      Please refer to Support Documents for Quality Certificates


      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
