      R718 Mouse Anti-T-bet
      R718 Mouse Anti-T-bet

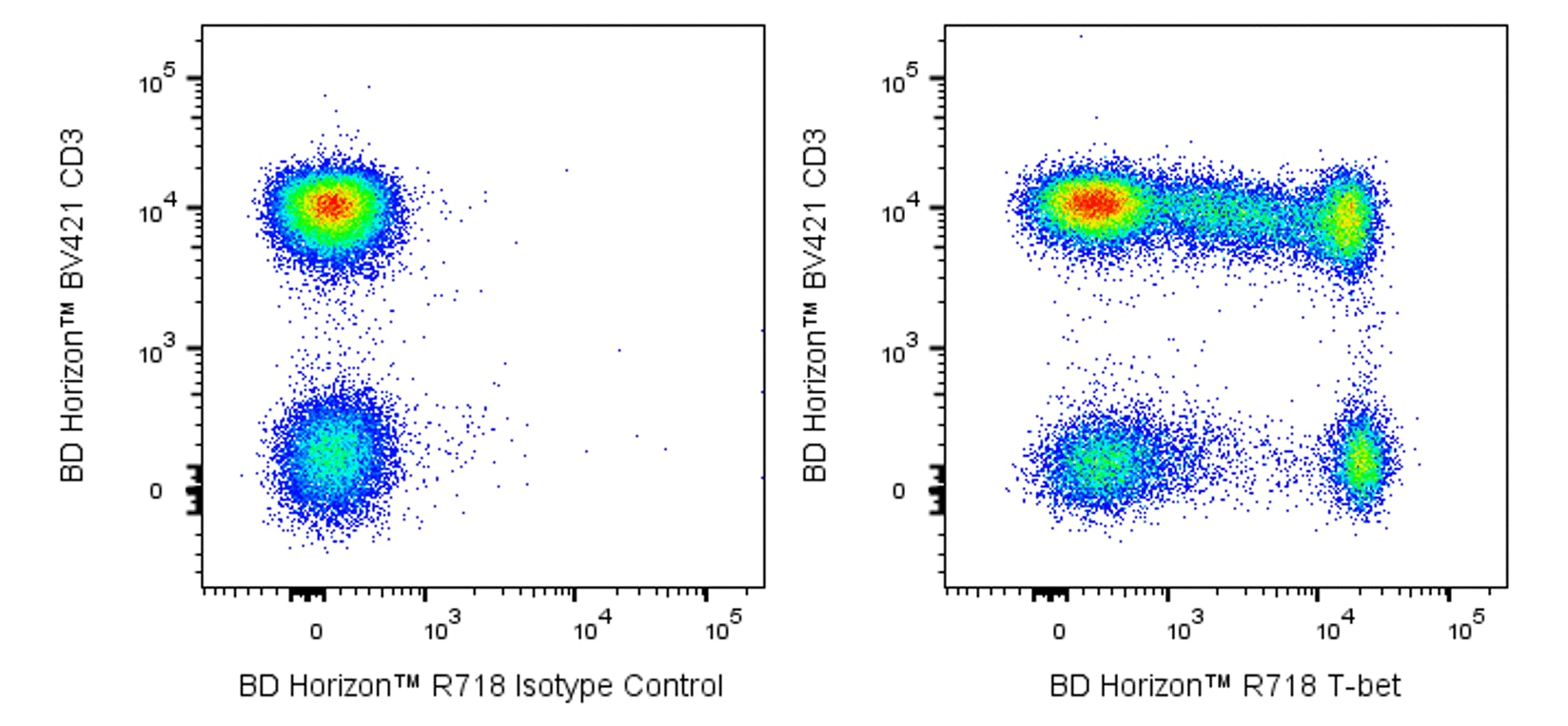

      Two-color flow cytometric analysis of T-bet expression in Human peripheral blood lymphocytes. Whole blood was treated with BD Phosflow™ Lyse/Fix Buffer (Cat. No. 558049) to lyse erythrocytes and fix leucocytes. The leucocytes were permeabilized by treatment with BD Phosflow™ Perm Buffer III (Cat. No. 558050). The cells were then washed and stained with BD Horizon™ BV421 Mouse Anti-Human CD3 antibody (Cat. No. 562426) and with either BD Horizon™ R718 Mouse IgG1, κ Isotype Control (Cat. No. 566928; Left Plot) or BD Horizon™ R718 Mouse Anti-T-bet antibody (Cat. No. 567096; Right Plot) at 0.25 µg/test. The bivariate pseudocolor density plot showing the correlated expression of T-bet (or Ig Isotype control staining) versus CD3 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
      R718 Mouse Anti-T-bet
      Two-color flow cytometric analysis of T-bet expression in Human peripheral blood lymphocytes. Whole blood was treated with BD Phosflow™ Lyse/Fix Buffer (Cat. No. 558049) to lyse erythrocytes and fix leucocytes. The leucocytes were permeabilized by treatment with BD Phosflow™ Perm Buffer III (Cat. No. 558050). The cells were then washed and stained with BD Horizon™ BV421 Mouse Anti-Human CD3 antibody (Cat. No. 562426) and with either BD Horizon™ R718 Mouse IgG1, κ Isotype Control (Cat. No. 566928; Left Plot) or BD Horizon™ R718 Mouse Anti-T-bet antibody (Cat. No. 567096; Right Plot) at 0.25 µg/test. The bivariate pseudocolor density plot showing the correlated expression of T-bet (or Ig Isotype control staining) versus CD3 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
      Product Details
      Down Arrow Up Arrow


      BD Horizon™
      T-box expressed in T cells; TBX21; T-box 21; TBLYM
      Human (QC Testing), Mouse (Tested in Development)
      Mouse IgG1, κ
      Human T-bet Peptide
      Intracellular staining (flow cytometry) (Routinely Tested)
      0.2 mg/ml
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unreacted dye was removed.
      Show More blue down arrow Show Less blue up arrow

      Recommended Assay Procedures

      BD™ CompBeads can be used as surrogates to assess fluorescence spillover (Compensation). When fluorochrome conjugated antibodies are bound to BD CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD CompBead to ensure that BD CompBeads are appropriate for your specific cellular application.

      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      2. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      3. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      4. An isotype control should be used at the same concentration as the antibody of interest.
      5. Species cross-reactivity detected in product development may not have been confirmed on every format and/or application.
      6. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
      7. This product is provided under an Agreement between BIOTIUM and BD Biosciences. This product, and only in the amount purchased by buyer, may be used solely for buyer’s own internal research, in a manner consistent with the accompanying product literature. No other right to use, sell or otherwise transfer (a) this product, or (b) its components is hereby granted expressly, by implication or by estoppel. This product is for research use only. Diagnostic uses require a separate license from Biotium, Inc. For information on purchasing a license to this product including for purposes other than research, contact Biotium, Inc., 3159 Corporate Place, Hayward, CA 94545, Tel: (510) 265-1027. Fax: (510) 265-1352. Email: btinfo@biotium.com.
      8. Alexa Fluor™ is a trademark of Life Technologies Corporation.
      9. Human donor specific background has been observed in relation to the presence of anti-polyethylene glycol (PEG) antibodies, developed as a result of certain vaccines containing PEG, including some COVID-19 vaccines. We recommend use of BD Horizon Brilliant™ Stain Buffer in your experiments to help mitigate potential background. For more information visit https://www.bdbiosciences.com/en-us/support/product-notices.
      Show More blue down arrow Show Less blue up arrow
      567096 Rev. 1
      Antibody Details
      Down Arrow Up Arrow
      O4-46

      The O4-46  monoclonal antibody specifically binds to human and mouse T-bet. T-bet (T-box gene expressed in T cells) is a master regulatory transcription factor that is also known as TBX21 (T-box21) and TBLYM (T-box transcription factor, expressed in lymphocytes). Human (535 amino acids; 58.3 kDa predicted molecular mass) and mouse (530 amino acids; 57.7 kDa) T-bet proteins are encoded by the human TBX21 (chromosome 17) and mouse Tbx21 (chromosome 11) genes. The human and mouse T-bet protein amino acid sequences are 88% homologous. Human and mouse T-bet proteins share a highly conserved (98% homologous amino acid sequences) T-box protein domain that is centrally located and mediates binding to DNA. T-bet is expressed by and activates transcriptional activities within hemotopoietic cells including stem cells,  NK and NKT cells and subsets of thymocytes, primed/activated CD4+ T cells, CD8+ T cells and γδ T cells, B cells, and dendritic cells. Interferon-gamma (IFN-γ), interleukin-27 (IL-27), and IL-12 act on peripheral antigen-triggered (TCR-signaling) T cells to increase T-bet expression. With respect to T helper lymphocytes, T-bet directs the differentiation of naïve CD4+ precursor T cells to become Th1-like effector and memory cells. T-bet accomplishes this by activating Th1 genetic programs (including epigenetic modifications) while repressing opposing T helper subset programs. T-bet controls the upregulated expression of the Th1 signature cytokine, IFN-γ, the IL-12Rβ2 subunit and the Runx3 transcription factor and can repress the function of other transcriptional regulators, such as GATA-3 (master regulator of Th2 development) and the expression of other cytokines including IL-2, IL-4 and IL-5.

      567096 Rev. 1
      Format Details
      Down Arrow Up Arrow
      R718
      The BD Horizon™ Red 718 (R718) Dye is part of the BD red family of dyes. It is a small organic fluorochrome with an excitation maximum (Ex Max) at 695-nm and an emission maximum (Em Max) at 718-nm. Driven by BD innovation, R718 is designed to be excited by the red laser (627–640-nm) and detected using an optical filter centered near 720-nm (e.g., a 720/40-nm bandpass filter). R718 is a brighter alternative to Alexa Fluor™ 700. R718 is also a bright small molecule alternative to APC-R700 with lower spread into the APC detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
      altImg
      R718
      Red 627-640 nm
      695 nm
      718 nm
      567096 Rev.1
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "567096" on CiteAb

      Development References (10)

      1. Bando JK, Gilfillan S, Di Luccia B, et al. ILC2s are the predominant source of intestinal ILC-derived IL-10.. J Exp Med. 2020; 217(2):e20191520. (Clone-specific: Flow cytometry). View Reference
      2. Cella M, Gamini R, Sécca C, et al. Subsets of ILC3-ILC1-like cells generate a diversity spectrum of innate lymphoid cells in human mucosal tissues.. Nat Immunol. 2019; 20(8):980-991. (Clone-specific: Flow cytometry). View Reference
      3. Kawabe T, Yi J, Kawajiri A, et al. Requirements for the differentiation of innate T-bethigh memory-phenotype CD4+ T lymphocytes under steady state.. Nat Commun. 2020; 11(1):3366. (Clone-specific: Flow cytometry). View Reference
      4. Li S, Sullivan NL, Rouphael N, et al. Metabolic Phenotypes of Response to Vaccination in Humans.. Cell. 2017; 169(5):862-877.e17. (Clone-specific: Flow cytometry). View Reference
      5. Patel PS, King RG, Kearney JF. Pulmonary α-1,3-Glucan-Specific IgA-Secreting B Cells Suppress the Development of Cockroach Allergy.. J Immunol. 2016; 197(8):3175-3187. (Clone-specific: Flow cytometry). View Reference
      6. Peng SL. The T-box transcription factor T-bet in immunity and autoimmunity. Cell Mol Immunol. 2006; 3(2):87-95. (Biology). View Reference
      7. Ponzetta A, Carriero R, Carnevale S, et al. Neutrophils Driving Unconventional T Cells Mediate Resistance against Murine Sarcomas and Selected Human Tumors.. Cell. 2019; 178(2):346-360.e24. (Clone-specific: Flow cytometry). View Reference
      8. Reis BS, Rogoz A, Costa-Pinto FA, Taniuchi I, Mucida D. Mutual expression of the transcription factors Runx3 and ThPOK regulates intestinal CD4(+) T cell immunity. Nat Immunol. 2013; 14(3):271-280. (Clone-specific: Flow cytometry). View Reference
      9. Szabo SJ, Kim ST, Costa GL, Zhang X, Fathman CG, Glimcher LH. A novel transcription factor, T-bet, directs Th1 lineage commitment. Cell. 2000; 100(6):655-669. (Biology). View Reference
      10. Trotta E, Bessette PH, Silveria SL, et al. A human anti-IL-2 antibody that potentiates regulatory T cells by a structure-based mechanism.. Nat Med. 2018; 24(7):1005-1014. (Clone-specific: Flow cytometry). View Reference
      View All (10) View Less
      567096 Rev. 1



      Please refer to Support Documents for Quality Certificates


      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
