BV421 Rat Anti-Mouse CD115 (CSF-1R)
BV421 Rat Anti-Mouse CD115 (CSF-1R)

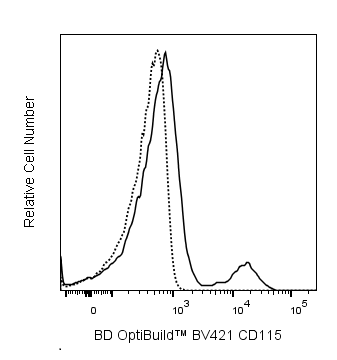

Flow cytometric analysis using BD OptiBuild™ BV421 Rat Anti-Mouse CD115 (CSF-1R) antibody (Cat. No. 750895; solid line histogram) on live C57BL/6 mouse bone marrow cells, with Isotype Control (dotted line histogram). Flow cytometry was performed using a BD LSRFortessa™ X-20  Flow Cytometer System.

Flow cytometric analysis using BD OptiBuild™ BV421 Rat Anti-Mouse CD115 (CSF-1R) antibody (Cat. No. 750895; solid line histogram) on live C57BL/6 mouse bone marrow cells, with Isotype Control (dotted line histogram). Flow cytometry was performed using a BD LSRFortessa™ X-20  Flow Cytometer System.

Product Details
Down Arrow Up Arrow


BD OptiBuild™
CD115; CSF-1R; Csf1r; M-CSFR; Fms; c-fms
Mouse (Tested in Development)
Rat WI, also known as Wistar (outbred) IgG2a, κ
Mouse
Flow cytometry (Qualified)
0.2 mg/ml
AB_2874991
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO


Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions that minimize unconjugated dye and antibody.

Recommended Assay Procedures

BD™ CompBeads can be used as surrogates to assess fluorescence spillover (Compensation). When fluorochrome conjugated antibodies are bound to BD CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD CompBead to ensure that BD CompBeads are appropriate for your specific cellular application.

For optimal and reproducible results, BD Horizon Brilliant Stain Buffer should be used anytime two or more BD Horizon Brilliant dyes are used in the same experiment. Fluorescent dye interactions may cause staining artifacts which may affect data interpretation. The BD Horizon Brilliant Stain Buffer was designed to minimize these interactions. More information can be found in the Technical Data Sheet of the BD Horizon Brilliant Stain Buffer (Cat. No. 563794/566349) or the BD Horizon Brilliant Stain Buffer Plus (Cat. No. 566385).

Product Notices

  1. The production process underwent stringent testing and validation to assure that it generates a high-quality conjugate with consistent performance and specific binding activity. However, verification testing has not been performed on all conjugate lots.
  2. Researchers should determine the optimal concentration of this reagent for their individual applications.
  3. An isotype control should be used at the same concentration as the antibody of interest.
  4. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  5. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  6. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  7. BD Horizon Brilliant Stain Buffer is covered by one or more of the following US patents: 8,110,673; 8,158,444; 8,575,303; 8,354,239.
  8. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
  9. Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
  10. BD Horizon Brilliant Violet 421 is covered by one or more of the following US patents: 8,158,444; 8,362,193; 8,575,303; 8,354,239.
750895 Rev. 3
Antibody Details
Down Arrow Up Arrow
AFS98

The AFS98 monoclonal antibody specifically recognizes CD115 which is also known as Colony stimulating factor 1 Receptor (CSF-1R), Macrophage colony-stimulating factor 1 receptor (M-CSFR), or c-fms. This type I transmembrane glycoprotein is a receptor tyrosine kinase (RTK) that is encoded by Csf1r which belongs to the Ig superfamily. CD115 (CSF-1R) is comprised of an extracellular ligand-binding domain that is followed by a single transmembrane segment and a split intracellular tyrosine kinase domain. This receptor is expressed on monocytes, macrophages, dendritic cells, osteoclasts, and their precursors. Colony-stimulating factor 1 (CSF-1), also known as Macrophage colony-stimulating factor (M-CSF), binds to and signals through CD115 (CSF-1R) homodimers which undergo tyrosine autophosphorylation. The activated receptors transduce intracellular signals resulting in cytoskeletal reorganization and gene expression involved in the proliferation, differentiation, and survival of CSF-1-responding cells. Through CD115 (CSF-1R), CSF-1 regulates the release of proinflammatory cytokines and other mediators from macrophages and plays a role in the bone resorption activity of osteoclasts. Interleukin-34 (IL-34) is another ligand for CD115 (CSF-1R) that can induce similar, as well as, some different biological responses by target cells that express this receptor.

The antibody was conjugated to BD Horizon™ BV421 which is part of the BD Horizon Brilliant™ Violet family of dyes. With an Ex Max of 407-nm and Em Max at 421-nm, BD Horizon BV421 can be excited by the violet laser and detected in the standard Pacific Blue™ filter set (eg, 450/50-nm filter). BD Horizon BV421 conjugates are very bright, often exhibiting a 10 fold improvement in brightness compared to Pacific Blue conjugates.

750895 Rev. 3
Format Details
Down Arrow Up Arrow
BV421
The BD Horizon Brilliant Violet™ 421 (BV421) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This polymer-technology based dye has an excitation maximum (Ex Max) of 407-nm and an emission maximum (Em Max) at 423-nm. Driven by BD innovation, BV421 is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 420-nm (e.g., a 431/28-nm or 450/50-nm bandpass filter). BV421 is an ideal alternative for V450 as it is approximately ten times brighter with less spillover into the BV510/V500 detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
BV421
Violet 405 nm
407 nm
423 nm
750895 Rev.3
Citations & References
Down Arrow Up Arrow

Development References (5)

  1. Fend L, Accart N, Kintz J et al. Therapeutic effects of anti-CD115 monoclonal antibody in mouse cancer models through dual inhibition of tumor-associated macrophages and osteoclasts. PLoS ONE. 2013; 8(9):e73310. (Clone-specific). View Reference
  2. Jose MD, Le Meur Y, Atkins RC, Chadban SJ. Blockade of macrophage colony-stimulating factor reduces macrophage proliferation and accumulation in renal allograft rejection.. Am J Transplant. 2003; 3(3):294-300. (Clone-specific). View Reference
  3. Murayama T, Yokode M, Kataoka H, et al. Intraperitoneal administration of anti-c-fms monoclonal antibody prevents initial events of atherogenesis but does not reduce the size of advanced lesions in apolipoprotein E-deficient mice.. Circulation. 1999; 99(13):1740-6. (Clone-specific). View Reference
  4. Rothwell VM, Rohrschneider LR. Murine c-fms cDNA: cloning, sequence analysis and retroviral expression. Oncogene Res. 1987; 1(4):311-324. (Biology). View Reference
  5. Sudo T, Nishikawa S, Ogawa M, et al. Functional hierarchy of c-kit and c-fms in intramarrow production of CFU-M.. Oncogene. 1995; 11(12):2469-76. (Immunogen). View Reference
View All (5) View Less
750895 Rev. 3

Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
