BD Pharmingen™ Purified NA/LE Rat Anti-Mouse IL-23 p19
Clone N71-1183 (RUO)

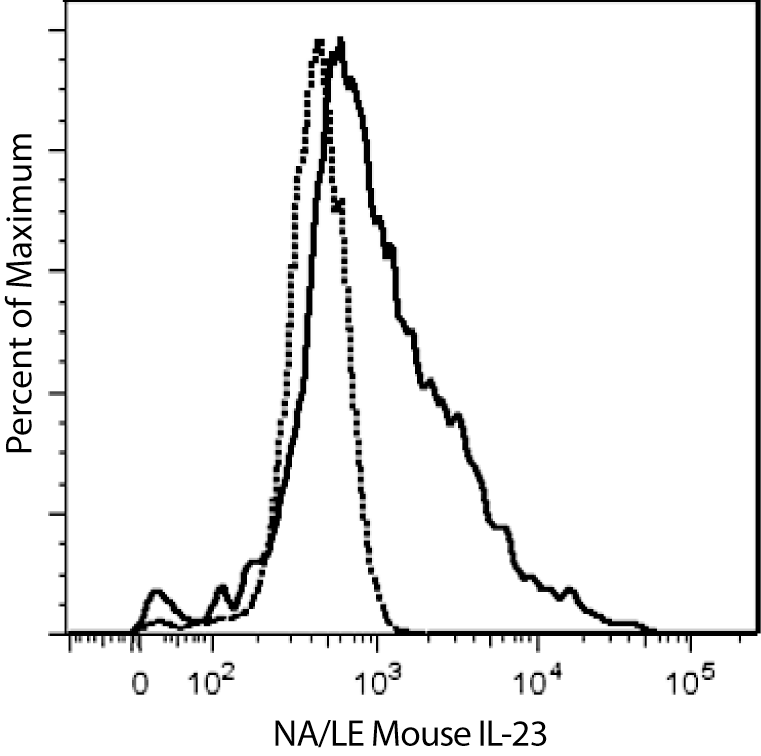

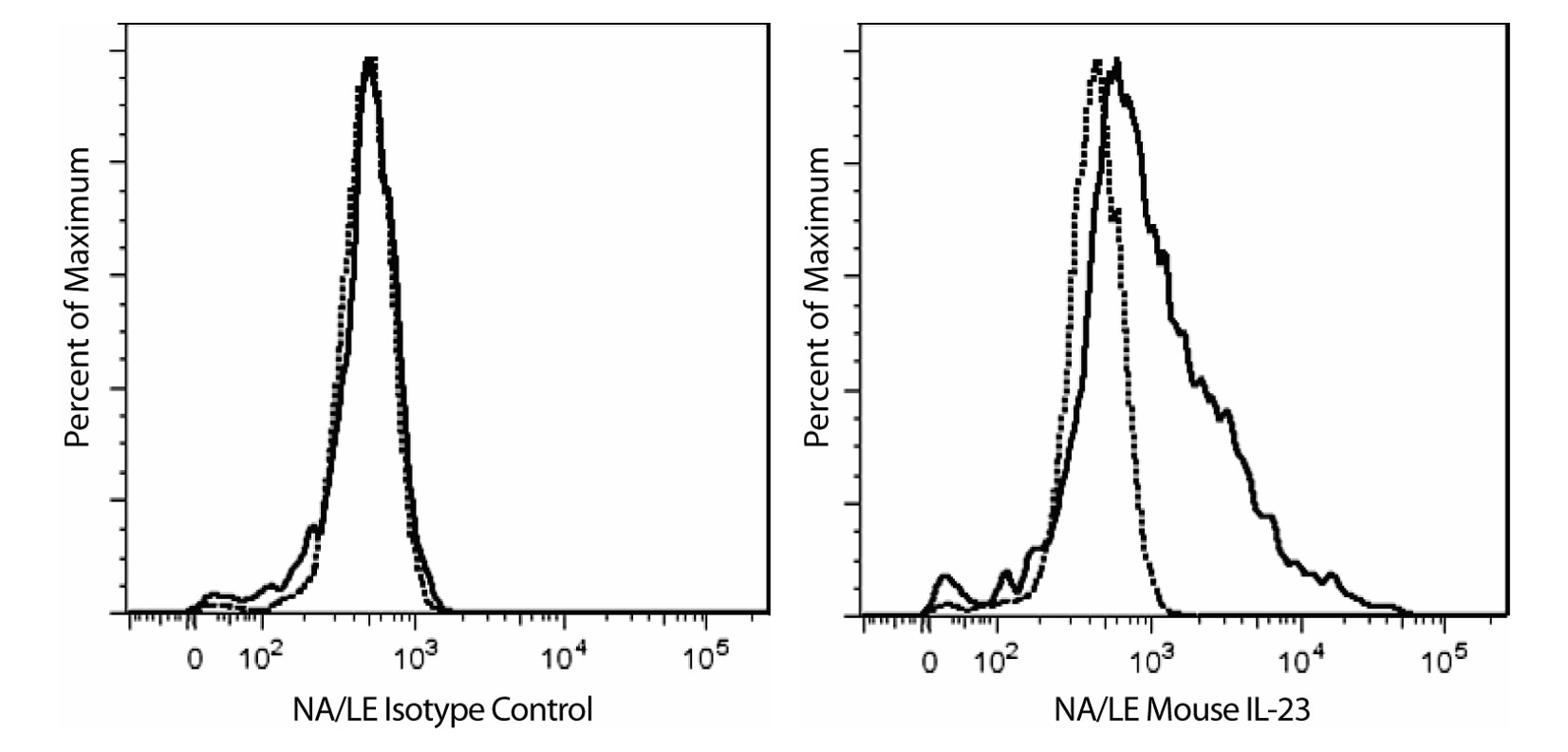

Flow cytometric analysis of Mouse IL-23 expression. 293-F cells, either transfected with mouse IL-23 p19 (solid line histograms) or untransfected (dotted line histograms), were fixed and permeabilized using BD Cytofix/Cytoperm™ Fixation/Permeabilization Kit (Cat. No. 554714) before staining with either Purified NA/LE Rat IgG1, κ Isotype Control (Cat. No. 553921) or NA/LE Rat Anti-Mouse IL-23 p19 (Cat. No. 565344). The second-step reagent was PE Goat Anti-Rat Ig (Cat. No. 550767). The histograms show the expression of IL-23 p19 (Right panel) or isotype control (Left panel) on gated events with the forward and side light-scatter characteristics of the intact cell population. Flow cytometry was performed on a BD LSRFortessa™ cell analyzer.
The N71-1183 monoclonal antibody limits the IL-23-induced production of IL-17 by MRL/lpr splenocytes. MRL/lpr splenocytes were activated in vitro in the presence of plate-bound Purified NA/LE Hamster Anti-Mouse CD3e (Cat. No. 553057) and Purified NA/LE Hamster Anti-Mouse CD28 (Cat. No. 553254) antibodies. Mouse IL-23 (10ng/ml) and either Purified NA/LE Rat IgG1, κ Isotype Control (Cat. No. 553921, left bar) or Purified NA/LE Rat Anti-Mouse IL-23 p19 (Cat. No. 565344, right bar) were added in the growth medium. After 24 hours, the concentrations of IL-17 in the supernatants were measured by ELISA. (Data provided by VC Kyttaris, Beth Israel Deaconess Medical Center.)
Flow cytometric analysis of Mouse IL-23 expression. 293-F cells, either transfected with mouse IL-23 p19 (solid line histograms) or untransfected (dotted line histograms), were fixed and permeabilized using BD Cytofix/Cytoperm™ Fixation/Permeabilization Kit (Cat. No. 554714) before staining with either Purified NA/LE Rat IgG1, κ Isotype Control (Cat. No. 553921) or NA/LE Rat Anti-Mouse IL-23 p19 (Cat. No. 565344). The second-step reagent was PE Goat Anti-Rat Ig (Cat. No. 550767). The histograms show the expression of IL-23 p19 (Right panel) or isotype control (Left panel) on gated events with the forward and side light-scatter characteristics of the intact cell population. Flow cytometry was performed on a BD LSRFortessa™ cell analyzer.
The N71-1183 monoclonal antibody limits the IL-23-induced production of IL-17 by MRL/lpr splenocytes. MRL/lpr splenocytes were activated in vitro in the presence of plate-bound Purified NA/LE Hamster Anti-Mouse CD3e (Cat. No. 553057) and Purified NA/LE Hamster Anti-Mouse CD28 (Cat. No. 553254) antibodies. Mouse IL-23 (10ng/ml) and either Purified NA/LE Rat IgG1, κ Isotype Control (Cat. No. 553921, left bar) or Purified NA/LE Rat Anti-Mouse IL-23 p19 (Cat. No. 565344, right bar) were added in the growth medium. After 24 hours, the concentrations of IL-17 in the supernatants were measured by ELISA. (Data provided by VC Kyttaris, Beth Israel Deaconess Medical Center.)
Preparation And Storage
Product Notices
- Since applications vary, each investigator should titrate the reagent to obtain optimal results.
- An isotype control should be used at the same concentration as the antibody of interest.
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
Companion Products
The N71-1183 monoclonal antibody specifically recognizes the alpha subunit, also known as p19, of mouse interleukin 23 that is encoded by the Il23a gene. Interleukin 23 (IL-23) is a heterodimeric cytokine composed of a p40 subunit and a p19 subunit. The p19 subunit is unique to IL-23, while the p40 subunit is shared with IL-12 and is also known as IL-12B. Human and mouse p19 share 70% amino acid sequence identity. Dendritic cells and macrophages produce IL-23 in response to TLR2, TLR4 and TLR8 ligands, as well as the β-glucan receptor, Dectin-1. IL-23 has biological activities that are similar to, but distinct from IL-12: Both IL12 and IL-23 induce proliferation and IFN-γ production by human T cells. While IL-12 acts on both naïve and memory human T cells, the effects of IL-23 are restricted to memory T cells. IL-23, but not IL-12, has been shown to induce memory T cells to secret IL-17, a potent proinflammatory cytokine. In vitro and in vivo treatment with N71-1183 monoclonal antibody has been shown to inhibit IL-23's ability to enhance IL-17 production by activated MRL/lpr T lymphocytes (Kyttaris VC, Kampagianni O, Tsokos GC, 2013).
Development References (2)
-
Kyttaris VC, Kampagianni O, Tsokos GC. Treatment with Anti-Interleukin 23 Antibody Ameliorates Disease in Lupus-Prone Mice.. Biomed Res Int. 2013; 2013Available: http://www.ncbi.nlm.nih.gov/pubmed/23841097 2014, December 3. View Reference
-
Oppmann B, Lesley R, Blom B, et al. Novel p19 protein engages IL-12p40 to form a cytokine, IL-23, with biological activities similar as well as distinct from IL-12.. Immunity. 2000; 13(5):715-25. (Biology). View Reference
Please refer to Support Documents for Quality Certificates
Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described
Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
