BD Pharmingen™ PE Active Caspase-3 Apoptosis Kit

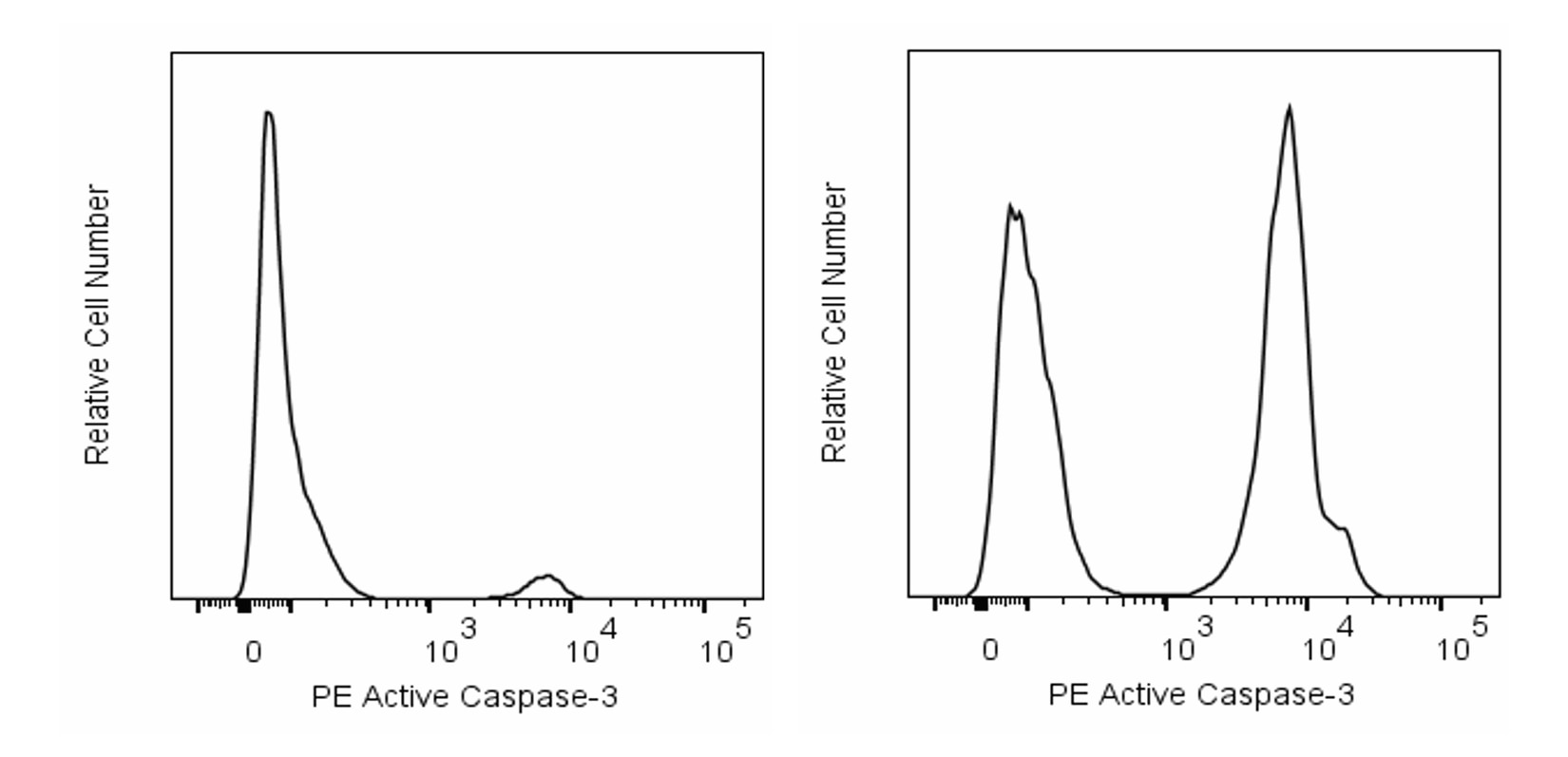

Flow cytometric analysis of Active Caspase-3 expression by Untreated or Camptothecin-treated Human Jurkat cells. Cells from the human Jurkat (T-cell leukemia, ATCC TIB-152™) cell line were cultured (6 hrs) without (Untreated; Left histogram) or with 12 μM of camptothecin (Camptothecin-treated; Right histogram) to induce apoptosis. Cells were permeabilized, fixed, and stained for Active Caspase-3 as described in the accompanying Staining Protocol. The fluorescence histograms showing Active Caspase-3 expression were derived from gated events with the forward and side light-scattered characteristics of single cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software.

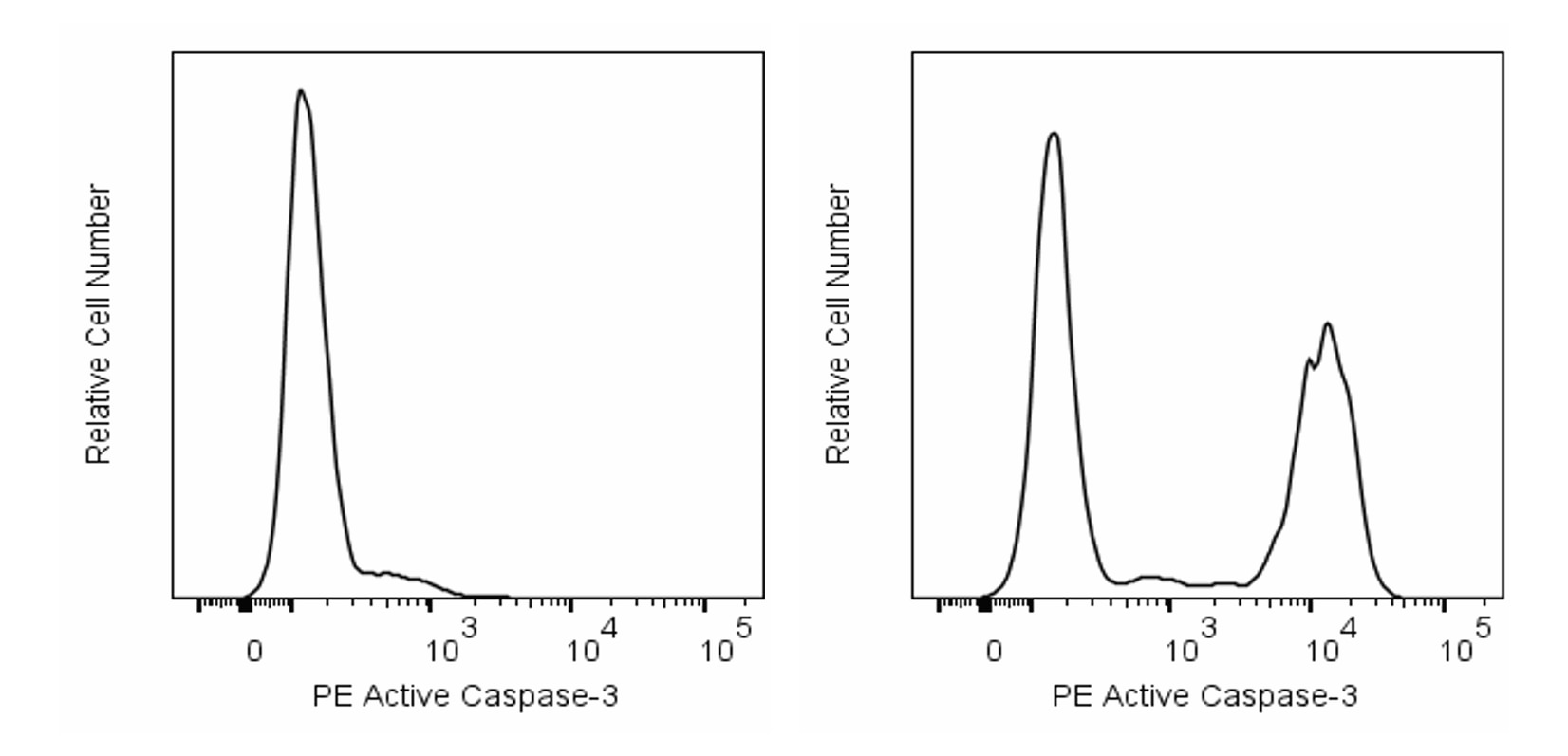

Flow cytometric analysis of Active Caspase-3 expression by Untreated or Dexamethasone-treated Mouse thymocytes. C57BL/6 thymocytes were cultured (5 hours) without (Untreated; Left histogram) or with 1 μM of dexamethasone (Dexamethasone-treated; Right histogram) for 5 hours to induce apoptosis. Cells were permeabilized, fixed, and stained for Active Caspase-3 as described in the accompanying Staining Protocol. The fluorescence histograms showing Active Caspase-3 expression were derived from gated events with the forward and side light-scattered characteristics of single cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software.
Flow cytometric analysis of Active Caspase-3 expression by Untreated or Camptothecin-treated Human Jurkat cells. Cells from the human Jurkat (T-cell leukemia, ATCC TIB-152™) cell line were cultured (6 hrs) without (Untreated; Left histogram) or with 12 μM of camptothecin (Camptothecin-treated; Right histogram) to induce apoptosis. Cells were permeabilized, fixed, and stained for Active Caspase-3 as described in the accompanying Staining Protocol. The fluorescence histograms showing Active Caspase-3 expression were derived from gated events with the forward and side light-scattered characteristics of single cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software.
Flow cytometric analysis of Active Caspase-3 expression by Untreated or Dexamethasone-treated Mouse thymocytes. C57BL/6 thymocytes were cultured (5 hours) without (Untreated; Left histogram) or with 1 μM of dexamethasone (Dexamethasone-treated; Right histogram) for 5 hours to induce apoptosis. Cells were permeabilized, fixed, and stained for Active Caspase-3 as described in the accompanying Staining Protocol. The fluorescence histograms showing Active Caspase-3 expression were derived from gated events with the forward and side light-scattered characteristics of single cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software.
Flow cytometric analysis of Active Caspase-3 expression by Untreated or Camptothecin-treated Human Jurkat cells. Cells from the human Jurkat (T-cell leukemia, ATCC TIB-152™) cell line were cultured (6 hrs) without (Untreated; Left histogram) or with 12 μM of camptothecin (Camptothecin-treated; Right histogram) to induce apoptosis. Cells were permeabilized, fixed, and stained for Active Caspase-3 as described in the accompanying Staining Protocol. The fluorescence histograms showing Active Caspase-3 expression were derived from gated events with the forward and side light-scattered characteristics of single cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software.
Flow cytometric analysis of Active Caspase-3 expression by Untreated or Dexamethasone-treated Mouse thymocytes. C57BL/6 thymocytes were cultured (5 hours) without (Untreated; Left histogram) or with 1 μM of dexamethasone (Dexamethasone-treated; Right histogram) for 5 hours to induce apoptosis. Cells were permeabilized, fixed, and stained for Active Caspase-3 as described in the accompanying Staining Protocol. The fluorescence histograms showing Active Caspase-3 expression were derived from gated events with the forward and side light-scattered characteristics of single cells. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ Software.
Regulatory Status Legend
Any use of products other than the permitted use without the express written authorization of Becton, Dickinson and Company is strictly prohibited.
Description
The C92-605.rMAb is a recombinant monoclonal antibody derived from C92-605 hybridoma cells. This antibody specifically recognizes the active form of Caspase-3 in human and mouse cells. It has not been reported to recognize the pro-enzyme form of Caspase-3. The Caspase family of cysteine proteases play crucial roles in apoptosis and inflammation. Caspase-3 is a key protease that is activated during the early stages of apoptosis and, like other members of the Caspase family, is synthesized as an inactive pro-enzyme that is processed in cells undergoing apoptosis by self-proteolysis and/or cleavage by another protease. The processed forms of caspases consist of large (17-22 kDa) and small (10-12 kDa) subunits which associate to form an active enzyme. Active Caspase-3, a marker for cells undergoing apoptosis, consists of a heterodimer of 17 and 12 kDa subunits which is derived from the 32 kDa pro-enzyme. Active Caspase-3 proteolytically cleaves and activates other caspases, as well as relevant targets in the cytoplasm, eg, D4-GDI and Bcl-2, and in the nucleus (eg, PARP).
The BD Pharmingen™ PE Active Caspase-3 Apoptosis Kit is a valuable tool for studying the role played by Active Caspase-3 in apoptosis. The kit provides a protocol and reagents for fixing, permeabilizing, and immunofluorescently staining cells for flow cytometric analysis of their expressed intracellular Active Caspase-3 levels involved in programmed cell death.
Preparation And Storage
Recommended Assay Procedures
Induction of Apoptosis by Camptothecin
Materials
1. Prepare a 1.0 mM stock solution of Camptothecin (Sigma-Aldrich, Cat. No. C-9911) in DMSO. Camptothecin, an extract of the Chinese tree Camptotheca acuminata, is a potent inhibitor of topoisomerase I, a molecule required for DNA synthesis. Camptothecin has been reported to induce apoptosis in a dose dependent manner in vitro.
2. Jurkat cells (Human T-cell leukemia; ATCC® TIB-152™).
Note: Mouse thymocytes or other cell types or cell lines can similarly be treated by culturing an agent that induces apoptosis such as Dexamethasone as shown.
Procedure
1. Add camptothecin (4-6 µM final concentration) to 1 × 10^6 /ml proliferating Jurkat cells.
2. Incubate the cells for 4 hr at 37°C.
Active Caspase-3 Staining Protocol
Procedure
1. Determine total amount of experimental samples (tests) and calculate the amount of BD Perm/Wash™ buffer (1×) and antibody you will need so that each test will have 100 µl BD Perm/Wash™ buffer (1×) and 20 µl antibody as follows:
No. Tests No. Cells Perm/Wash™ Vol. (ml) Antibody Vol. (μl)
1 1 × 10^6 0.1 20
5 5 × 10^6 0.5 100
10 10 × 10^6 1.0 200
20 20 × 10^6 2.0 400
2. Dilute the needed amount of BD Perm/Wash™ buffer (10×) 1:10 in distilled water prior to use.
Note: Precipitate may be occasionally observable with the BD Perm/Wash™ buffer (10×) which will not affect performance of the buffer. The precipitate may be removed by filtering the 1× solution through a 0.45 µm filter.
3. Wash cells twice with cold 1× PBS, then resuspend cells in BD Cytofix/Cytoperm™ solution at a concentration of 1 × 10^6 cells/0.5 ml.
4. Incubate cells for 20 min on ice.
5. Pellet cells, aspirate, and discard BD Cytofix/Cytoperm™ solution; wash twice with BD Perm/Wash™ buffer (1×) at a volume of 0.5 ml buffer/1 × 10^6 cells at room temperature.
6. Resuspend cells in the above calculated BD Perm/Wash™ buffer (1×) plus antibody and incubate for 30 min at room temperature.
7. Wash each test in 1.0 ml BD Perm/Wash™ buffer (1×), then resuspend the test in 0.5 ml BD Perm/Wash™ buffer (1×) and analyze by flow cytometry.
Danger: Cytofix/Cytoperm Fixation and Permeabilization Solution (1X) (component 51-6896KC) contains 4.2% formaldehyde.
Hazard statements
Harmful if inhaled.
Causes skin irritation. Causes serious eye damage.
May cause an allergic skin reaction.
Suspected of causing genetic defects.
May cause cancer.
Route of exposure: Inhalation. May cause respiratory irritation.
Precautionary statements
Wear protective clothing / eye protection.
Wear protective gloves.
Do not breathe mist/vapors/spray.
IF IN EYES: Rinse cautiously with water for several minutes.
Remove contact lenses, if present and easy to do. Continue rinsing.
If skin irritation or rash occurs: Get medical advice/attention.
Product Notices
- Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
- Source of all serum proteins is from USDA inspected abattoirs located in the United States.
- Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
- This reagent has been pre-diluted for use at the recommended Volume per Test. We typically use 1 × 10^6 cells in a 100-µl experimental sample (a test).
- For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
- An isotype control should be used at the same concentration as the antibody of interest.
- Species cross-reactivity detected in product development may not have been confirmed on every format and/or application.
- Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
- For U.S. patents that may apply, see bd.com/patents.
| Description | Quantity/Size | Part Number | Clone | Isotype |
|---|---|---|---|---|
| PE Rabbit Anti-Active Caspase-3 | 100 Tests (1 ea) | 51-9024145 | C92-605.rMAb | IgG, κ |
| Cytofix/Cytoperm™ Fixation and Permeabilization Solution (1X) | N/A | 51-6896KC | N/A | N/A |
| Perm/Wash™ Buffer (10X Solution) | N/A | 51-6897KC | N/A | N/A |
Please refer to Support Documents for Quality Certificates
Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described
Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims. Comparisons are not made against non-BD technologies, unless otherwise noted.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
