BV421 Rat Anti-Mouse CD127
BV421 Rat Anti-Mouse CD127

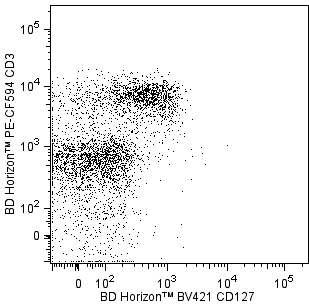

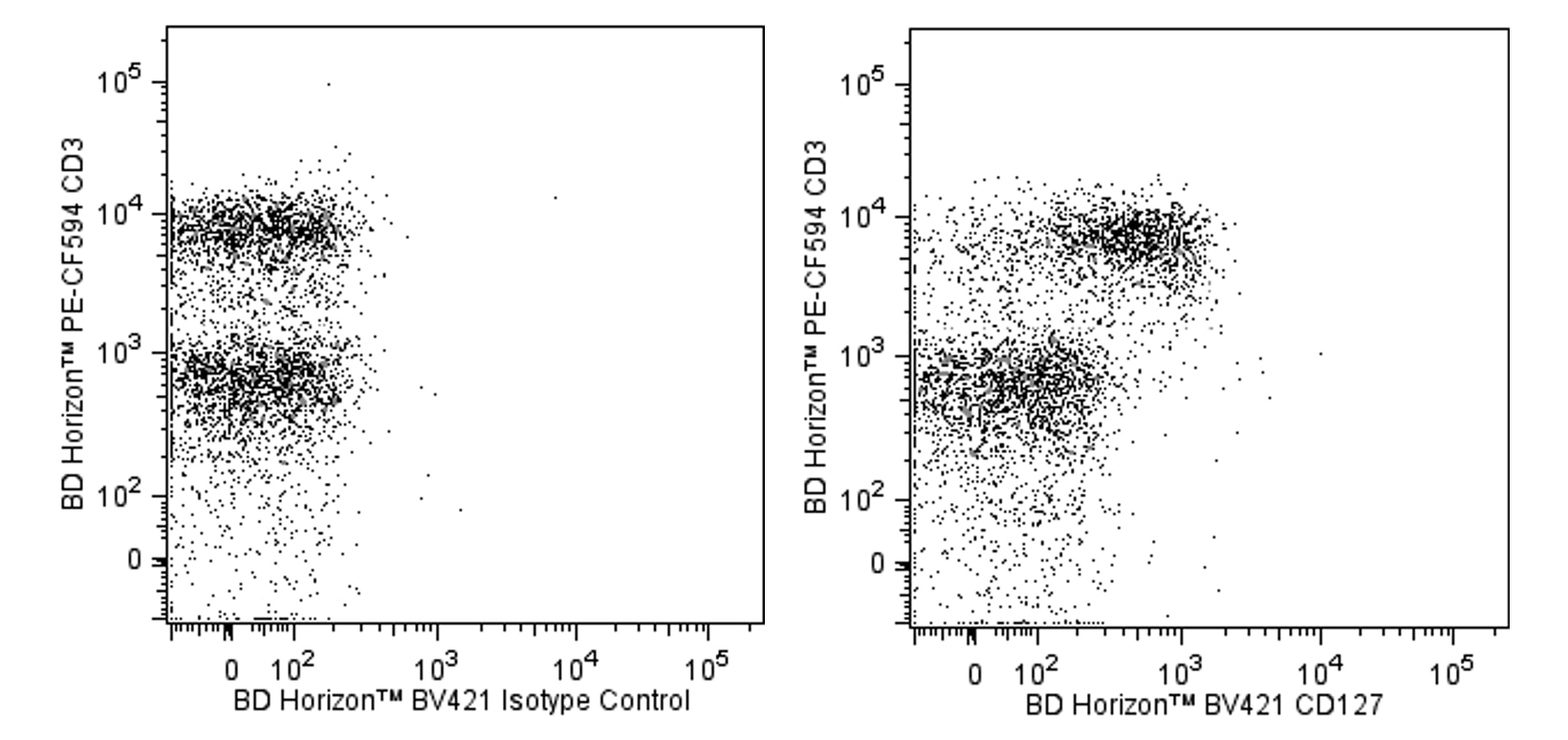

Flow cytometric analysis of CD127 expression on BALB/c mouse splenocytes. Splenic leucocytes from a BALB/c mouse were stained with BD Horizon™ PE-CF594 Hamster Anti-Mouse CD3e antibody (Cat. No. 562286/562332) and either BD Horizon™ BV421 Rat IgG2b, κ Isotype Control (Cat. No. 562603, left panel) or BD Horizon™ BV421 Rat Anti-Mouse CD127 antibody (Cat. No. 562959, right panel). Two-color flow cytometric dot plots show the correlated expression patterns of CD127 (or Ig Isotype control staining) versus CD3 for gated events with the forward and side light-scatter characteristics of viable splenic leucocytes. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Flow cytometric analysis of CD127 expression on BALB/c mouse splenocytes. Splenic leucocytes from a BALB/c mouse were stained with BD Horizon™ PE-CF594 Hamster Anti-Mouse CD3e antibody (Cat. No. 562286/562332) and either BD Horizon™ BV421 Rat IgG2b, κ Isotype Control (Cat. No. 562603, left panel) or BD Horizon™ BV421 Rat Anti-Mouse CD127 antibody (Cat. No. 562959, right panel). Two-color flow cytometric dot plots show the correlated expression patterns of CD127 (or Ig Isotype control staining) versus CD3 for gated events with the forward and side light-scatter characteristics of viable splenic leucocytes. Flow cytometry was performed using a BD™ LSR II Flow Cytometer System.
Product Details
Down Arrow Up Arrow


BD Horizon™
Interleukin-7 receptor alpha chain; IL-7R alpha; IL-7RA; IL-7Rα; Il7r
Mouse (QC Testing)
Rat IgG2b, κ
BALB/c mouse pre-B cell line 1A9
Flow cytometry (Routinely Tested)
0.2 mg/ml
AB_2737917
Aqueous buffered solution containing BSA and ≤0.09% sodium azide.
RUO


Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated with BD Horizon BV421 under optimum conditions, and unconjugated antibody and free BD Horizon BV421 were removed.

Product Notices

  1. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  2. Source of all serum proteins is from USDA inspected abattoirs located in the United States.
  3. An isotype control should be used at the same concentration as the antibody of interest.
  4. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  5. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  6. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  7. Pacific Blue™ is a trademark of Molecular Probes, Inc., Eugene, OR.
  8. Brilliant Violet™ 421 is a trademark of Sirigen.
562959 Rev. 1
Antibody Details
Down Arrow Up Arrow
SB/199

The SB/199 monoclonal antibody specifically binds to mouse CD127 which is also known as, the Interleukin-7 Receptor alpha chain (IL-7Rα). CD127 associates with CD132 (common γ chain) to form a high-affinity signaling IL-7R complex that mediates the biological effects of IL-7. CD127 can also complex with the Thymic Stromal Lymphopoietin Receptor (TSLPR) subunit to bind and mediate cellular responses to TSLP. CD127 is a 65-75 kDa type-I transmembrane protein that belongs to the hematopoietin receptor and the Ig gene superfamilies. Mice lacking CD127 display profoundly impaired development of the B and T lymphoid cell lineages, but display no obvious nonlymphoid abnormalities. IL-7Rα is expressed on common lymphoid progenitors and early stages of B lineage development in the bone marrow, on the earliest thymocyte progenitors, on CD4-CD8- double-negative and CD4+ and CD8+ single-positive thymocytes, and on most peripheral T lymphocytes. Intestinal intraepithelial lymphocytes with low-density γδ TCR expression upregulate CD127 expression in response to IL-2, which may be secreted by neighboring αβ TCR+ T cells.

The antibody was conjugated to BD Horizon™ BV421 which is part of the BD Horizon™ Brilliant Violet™ family of dyes.  With an Ex Max of 407-nm and Em Max at 421-nm, BD Horizon™ BV421  can be excited by the violet laser and detected in the standard Pacific Blue™ filter set (eg, 450/50-nm filter). BD Horizon™ BV421  conjugates are very bright, often exhibiting a 10 fold improvement in brightness compared to Pacific Blue™ conjugates.

562959 Rev. 1
Format Details
Down Arrow Up Arrow
BV421
The BD Horizon Brilliant Violet™ 421 (BV421) Dye is part of the BD Horizon Brilliant Violet™ family of dyes. This polymer-technology based dye has an excitation maximum (Ex Max) of 407-nm and an emission maximum (Em Max) at 423-nm. Driven by BD innovation, BV421 is designed to be excited by the violet laser (405-nm) and detected using an optical filter centered near 420-nm (e.g., a 431/28-nm or 450/50-nm bandpass filter). BV421 is an ideal alternative for V450 as it is approximately ten times brighter with less spillover into the BV510/V500 detector. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
BV421
Violet 405 nm
407 nm
423 nm
562959 Rev.1
Citations & References
Down Arrow Up Arrow
View product citations for antibody "562959" on CiteAb

Development References (9)

  1. Akashi K, Kondo M, Weissman IL. Role of interleukin-7 in T-cell development from hematopoietic stem cells. Immunol Rev. 1998; 165:13-28. (Biology). View Reference
  2. Brugnera E, Bhandoola A, Cibotti R, et al. Coreceptor reversal in the thymus: signaled CD4+8+ thymocytes initially terminate CD8 transcription even when differentiating into CD8+ T cells. Immunity. 2000; 13(1):59-71. (Biology). View Reference
  3. Faust EA, Saffran DC, Toksoz D, Williams DA, Witte ON. Distinctive growth requirements and gene expression patterns distinguish progenitor B cells from pre-B cells. J Exp Med. 1993; 177(4):915-923. (Biology). View Reference
  4. Fujihashi K, Kawabata S, Hiroi T, et al. Interleukin 2 (IL-2) and interleukin 7 (IL-7) reciprocally induce IL-7 and IL-2 receptors on gamma delta T-cell receptor-positive intraepithelial lymphocytes. Proc Natl Acad Sci U S A. 1996; 93(8):3613-3618. (Biology). View Reference
  5. Goodwin RG, Friend D, Ziegler SF et al. Cloning of the human and murine interleukin-7 receptors: demonstration of a soluble form and homology to a new receptor superfamily. Cell. 1990; 60(6):941-951. (Biology). View Reference
  6. Henderson AJ, Narayanan R, Collins L, Dorshkind K. Status of kappa L chain gene rearrangements and c-kit and IL-7 receptor expression in stromal cell-dependent pre-B cells. J Immunol. 1992; 149(6):1973-1979. (Biology). View Reference
  7. Noguchi M, Nakamura Y, Russell SM, et al. Interleukin-2 receptor gamma chain: a functional component of the interleukin-7 receptor. Science. 1993; 262(5141):1877-1880. (Biology). View Reference
  8. Peschon JJ, Morrissey PJ, Grabstein KH, et al. Early lymphocyte expansion is severely impaired in interleukin 7 receptor-deficient mice. J Exp Med. 1994; 180(5):1955-1960. (Biology). View Reference
  9. Yamashita Y, Oritani K, Miyoshi EK, Wall R, Bernfield M, Kincade PW. Syndecan-4 is expressed by B lineage lymphocytes and can transmit a signal for formation of dendritic processes. J Immunol. 1999; 162(10):5940-5948. (Clone-specific: Flow cytometry). View Reference
View All (9) View Less
562959 Rev. 1



Please refer to Support Documents for Quality Certificates


Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

For Research Use Only. Not for use in diagnostic or therapeutic procedures.
