      RB780 Mouse Anti-Human CD59
      RB780 Mouse Anti-Human CD59

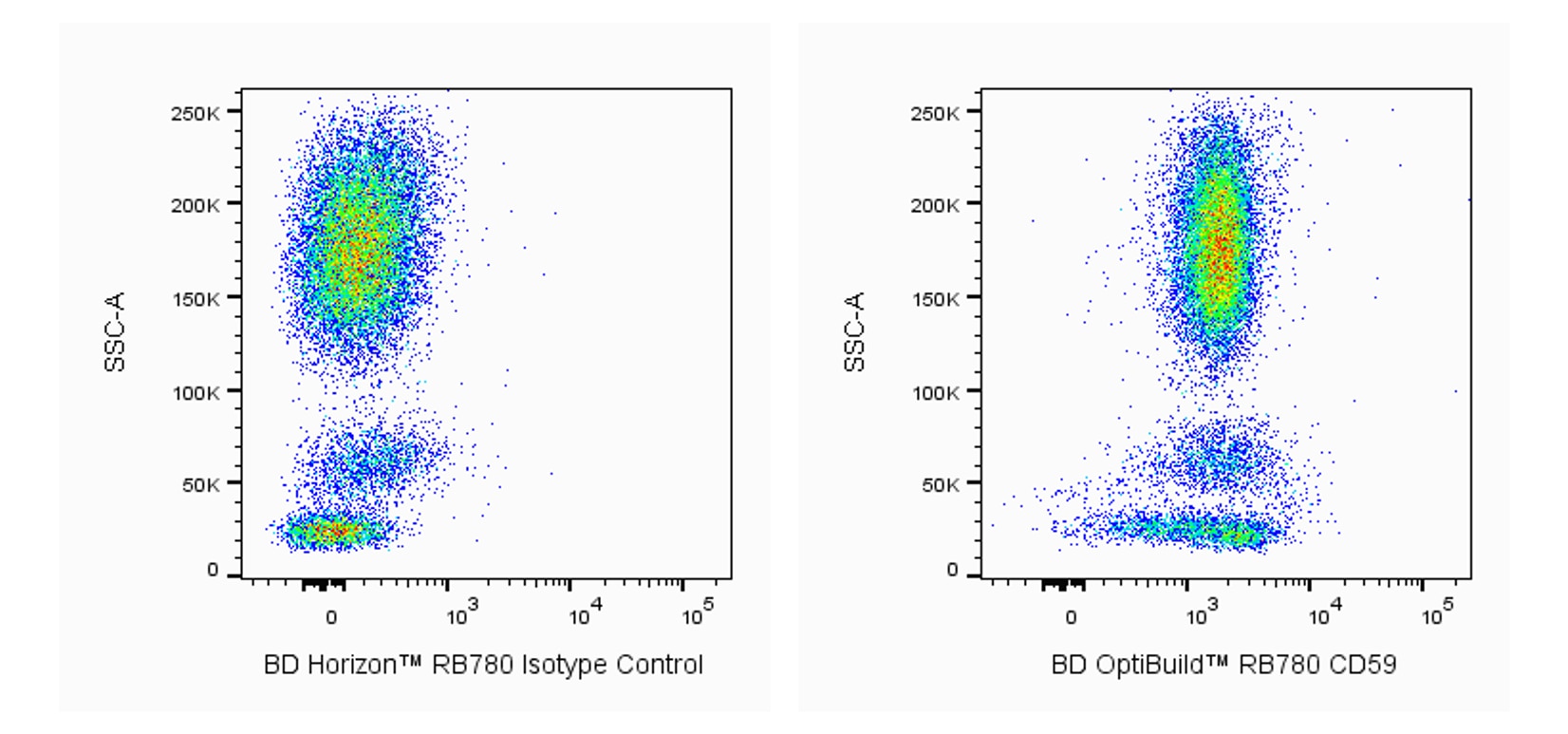

      Multiparameter flow cytometric analysis using BD OptiBuild™ RB780 Mouse Anti-Human CD59 antibody (Cat. No. 756030; Right Plot) on human peripheral blood, with Isotype Control (Cat. No. 568740, Left Plot). Flow cytometry was performed using a BD LSRFortessa™ X-20 Flow Cytometer System.
      RB780 Mouse Anti-Human CD59

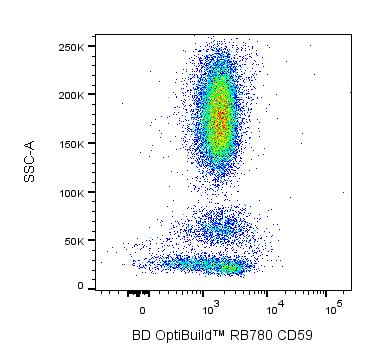

      Multiparameter flow cytometric analysis using BD OptiBuild™ RB780 Mouse Anti-Human CD59 antibody (Cat. No. 756030; Right Plot) on human peripheral blood, with Isotype Control (Cat. No. 568740, Left Plot). Flow cytometry was performed using a BD LSRFortessa™ X-20 Flow Cytometer System.
      Product Details
      Down Arrow Up Arrow


      BD OptiBuild™
      HRF-20; MAC-inhibitory protein; MAC-IP; MACIF; MEM43; MIRL; Protectin; 1F5
      Human,Rhesus,Cynomolgus,Baboon (Tested in Development)
      Mouse IgG2a, κ
      Human Erythrocytes
      Flow cytometry (Qualified)
      0.2 mg/ml
      V S006
      966
      Aqueous buffered solution containing ≤0.09% sodium azide.
      RUO


      Preparation And Storage

      The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions that minimize unconjugated dye and antibody. Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze.
      Show More blue down arrow Show Less blue up arrow

      Recommended Assay Procedures

      BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation). When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells. However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls. It is strongly recommended that when using a reagent for the first time, users compare the spillover on cells and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

      Show More blue down arrow Show Less blue up arrow

      Product Notices

      1. When using high concentrations of antibody, background binding of this dye to erythroid fragments produced by ammonium chloride-based lysis, such as with BD Pharm Lyse™ Lysing Buffer (Cat. No. 555899), has been observed when the antibody conjugate was present during the lysis procedure. This may cause nonspecific staining of target cells, such as leukocytes, which have bound the resulting erythroid fragments. This background can be mitigated by any of the following: titrating the antibody conjugate to a lower concentration, fixing samples with formaldehyde, or removing erythrocytes before staining (eg, gradient centrifugation or pre-lysis with wash). This background has not been observed when cells were lysed with BD FACS™ Lysing Solution (Cat. No. 349202) after staining.
      2. Researchers should determine the optimal concentration of this reagent for their individual applications.
      3. The production process underwent stringent testing and validation to assure that it generates a high-quality conjugate with consistent performance and specific binding activity. However, verification testing has not been performed on all conjugate lots.
      4. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
      5. Please observe the following precautions: Absorption of visible light can significantly alter the energy transfer occurring in any tandem fluorochrome conjugate; therefore, we recommend that special precautions be taken (such as wrapping vials, tubes, or racks in aluminum foil) to prevent exposure of conjugated reagents, including cells stained with those reagents, to room illumination.
      6. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
      7. An isotype control should be used at the same concentration as the antibody of interest.
      8. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
      9. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
      10. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
      11. Human donor specific background has been observed in relation to the presence of anti-polyethylene glycol (PEG) antibodies, developed as a result of certain vaccines containing PEG, including some COVID-19 vaccines. We recommend use of BD Horizon Brilliant™ Stain Buffer in your experiments to help mitigate potential background. For more information visit https://www.bdbiosciences.com/en-us/support/product-notices.
      12. Cy is a trademark of Global Life Sciences Solutions Germany GmbH or an affiliate doing business as Cytiva.
      Show More blue down arrow Show Less blue up arrow
      756030 Rev. 2
      Antibody Details
      Down Arrow Up Arrow
      p282 (H19)

      The p282 (HI9) monoclonal antibody specifically binds to CD59, a 19 kDa glycosylphosphatidylinositol (GPI)-anchored glycoprotein, expressed on hematopoietic and non-hematopoietic cells. Because of its interaction with complement activated products, CD59 has been termed membrane-attack-complex-inhibitory factor (MACIF), homologus restriction factor (HRF20), membrane inhibitor of reactive lysis (MIRL) and Protectin. It inhibits the cytolytic activity of the complement system by binding to C8 and C9, thereby blocking the assembly of the membrane attack complex. CD59 also participates in spontaneous T-cell/erythrocyte adhesion, interacts with CD2, and plays a role in T-cell activation.

      756030 Rev. 2
      Format Details
      Down Arrow Up Arrow
      RB780
      The BD Horizon RealBlue™ 780 (RB780) Dye is part of the BD family of blue dyes. It is a tandem fluorochrome with an excitation maximum (Ex Max) at 498-nm and an emission maximum (Em Max) at 781-nm. Driven by BD innovation, RB780 can be used on both spectral and conventional cytometers and is designed to be excited by the Blue laser (488-nm) with minimal excitation by the 561-nm Yellow-Green laser. For conventional instruments equipped with a Blue laser (488-nm), RB780 can be used as an alternative to PE-Cy7 and we recommend using an optical filter centered near 780-nm (eg, a 780/60-nm bandpass filter). For spectral instruments equipped with a Blue laser (488-nm), it can be used in conjunction with PE-Cy7. RB780 is on average brighter than PE-Cy7 and has minimal spillover into Yellow-Green detectors.
      altImg
      RB780
      Blue 488 nm
      498 nm
      781 nm
      756030 Rev.2
      Citations & References
      Down Arrow Up Arrow
      View product citations for antibody "756030" on CiteAb

      Development References (8)

      1. Davies A, Lachmann PJ. Membrane defence against complement lysis: the structure and biological properties of CD59. Immunol Res. 1993; 12(3):258-275. (Biology). View Reference
      2. Deckert M, Kubar J, Bernard A. CD58 and CD59 molecules exhibit potentializing effects in T cell adhesion and activation. J Immunol. 1992; 148(3):672-677. (Clone-specific: Blocking, Flow cytometry, Functional assay, Immunoaffinity chromatography, Immunoprecipitation, Inhibition, Radioimmunoassay). View Reference
      3. Deckert M, Kubar J, Zoccola D, et al. CD59 molecule: a second ligand for CD2 in T cell adhesion. Eur J Immunol. 1992; 22(11):2943-2947. (Clone-specific: Blocking). View Reference
      4. Groux H, Huet S, Aubrit F, Tran HC, Boumsell L, Bernard A. A 19-kDa human erythrocyte molecule H19 is involved in rosettes, present on nucleated cells, and required for T cell activation. Comparison of the roles of H19 and LFA-3 molecules in T cell activation. J Immunol. 1989; 142(9):3013-3020. (Immunogen: Blocking, Flow cytometry, Functional assay, Immunoaffinity chromatography, Immunoprecipitation, Inhibition). View Reference
      5. Kishimoto T. Tadamitsu Kishimoto .. et al., ed. Leucocyte typing VI : white cell differentiation antigens : proceedings of the sixth international workshop and conference held in Kobe, Japan, 10-14 November 1996. New York: Garland Pub.; 1997.
      6. Schlossman SF. Stuart F. Schlossman .. et al., ed. Leucocyte typing V : white cell differentiation antigens : proceedings of the fifth international workshop and conference held in Boston, USA, 3-7 November, 1993. Oxford: Oxford University Press; 1995.
      7. Whitlow MB, Iida K, Stefanova I, Bernard A, Nussenzweig V. H19, a surface membrane molecule involved in T-cell activation, inhibits channel formation by human complement. Cell Immunol. 1990; 126(1):176-184. (Biology). View Reference
      8. Zola H. Leukocyte and stromal cell molecules : the CD markers. Hoboken, N.J.: Wiley-Liss; 2007.
      View All (8) View Less
      756030 Rev. 2

      Please refer to Support Documents for Quality Certificates


      Global - Refer to manufacturer's instructions for use and related User Manuals and Technical data sheets before using this products as described


      Comparisons, where applicable, are made against older BD Technology, manual methods or are general performance claims.  Comparisons are not made against non-BD technologies, unless otherwise noted.

      For Research Use Only. Not for use in diagnostic or therapeutic procedures.
