PE Mouse Anti-Human CD133
PE Mouse Anti-Human CD133

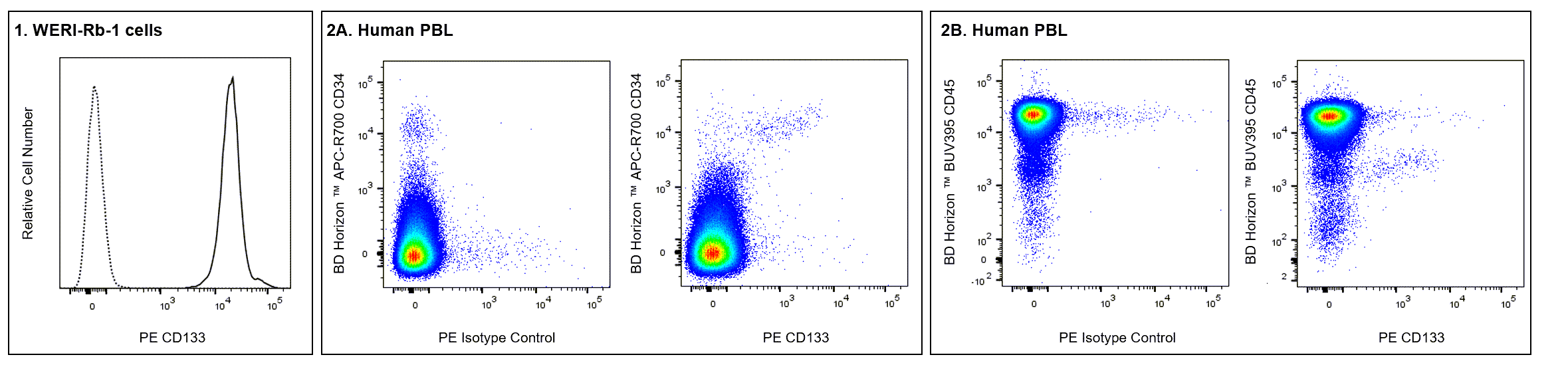

CD133 expression on retinoblastoma cell line and Human peripheral blood mononuclear cells (PBMC) Panel 1. Cells from the WERI-Rb-1 (Retinoblastoma, ATCC HTB-169) cell line were stained with either PE Mouse IgG2b, κ Isotype Control (Cat. No. 555058​; dashed line histogram) or PE Mouse Anti-Human CD133 antibody (Cat. No. 567916/567917 solid line histogram) at 0.125 μg/test. The fluorescence histogram showing CD133 expression (or Ig Isotype control staining) was derived from gated events with the forward and side light-scatter characteristics of viable cells. Panel 2A. Human peripheral blood mononuclear cells (PBMC) were stained with BD Horizon™ CD34 APC-R700 antibody (Cat. No. 659123) and either PE Mouse IgG2b, κ Isotype Control (Left Plot) or PE Mouse Anti-Human CD133 antibody (Right Plot) at 0.125 μg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. The pseudocolor density plot showing the correlated expression of CD133 (or Ig Isotype control staining) versus CD34 was derived from gated events with the forward and side light-scatter characteristics of viable (DAPI-negative) peripheral blood lymphocytes (PBL). Panel 2B. Human PBMC were similarly stained with BD Horizon™ BUV395 Mouse Anti-Human CD45 antibody (Cat. No. 563791/563792) and either PE Mouse IgG2b, κ Isotype Control (Left Plot) or PE Mouse Anti-Human CD133 antibody (Right Plot) at 0.125 μg/test followed by DAPI Solution addition before analysis. The pseudocolor density plot showing the correlated expression of CD133 (or Ig Isotype control staining) versus CD45 was similarly derived for viable (DAPI-negative) PBL. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
CD133 expression on retinoblastoma cell line and Human peripheral blood mononuclear cells (PBMC) Panel 1. Cells from the WERI-Rb-1 (Retinoblastoma, ATCC HTB-169) cell line were stained with either PE Mouse IgG2b, κ Isotype Control (Cat. No. 555058​; dashed line histogram) or PE Mouse Anti-Human CD133 antibody (Cat. No. 567916/567917 solid line histogram) at 0.125 μg/test. The fluorescence histogram showing CD133 expression (or Ig Isotype control staining) was derived from gated events with the forward and side light-scatter characteristics of viable cells. Panel 2A. Human peripheral blood mononuclear cells (PBMC) were stained with BD Horizon™ CD34 APC-R700 antibody (Cat. No. 659123) and either PE Mouse IgG2b, κ Isotype Control (Left Plot) or PE Mouse Anti-Human CD133 antibody (Right Plot) at 0.125 μg/test. DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) Solution (Cat. No. 564907) was added to cells right before analysis. The pseudocolor density plot showing the correlated expression of CD133 (or Ig Isotype control staining) versus CD34 was derived from gated events with the forward and side light-scatter characteristics of viable (DAPI-negative) peripheral blood lymphocytes (PBL). Panel 2B. Human PBMC were similarly stained with BD Horizon™ BUV395 Mouse Anti-Human CD45 antibody (Cat. No. 563791/563792) and either PE Mouse IgG2b, κ Isotype Control (Left Plot) or PE Mouse Anti-Human CD133 antibody (Right Plot) at 0.125 μg/test followed by DAPI Solution addition before analysis. The pseudocolor density plot showing the correlated expression of CD133 (or Ig Isotype control staining) versus CD45 was similarly derived for viable (DAPI-negative) PBL. Flow cytometry and data analysis were performed using a BD LSRFortessa™ X-20 Cell Analyzer System and FlowJo™ software. Data shown on this Technical Data Sheet are not lot specific.
Product Details
Down Arrow Up Arrow


BD Pharmingen™
PROM1; PROML1; prominin-1; AC133; CORD12; MCDR2; MSTP061; RP41; STGD4
Human (QC Testing)
Mouse BALB/c IgG2b, κ
Human full-length CD133 Transfected Cell Line
Flow cytometry (Routinely Tested)
0.2 mg/ml
8842
Aqueous buffered solution containing ≤0.09% sodium azide.
RUO


Preparation And Storage

Store undiluted at 4°C and protected from prolonged exposure to light. Do not freeze. The monoclonal antibody was purified from tissue culture supernatant or ascites by affinity chromatography. The antibody was conjugated to the dye under optimum conditions and unconjugated antibody and free dye were removed.

Recommended Assay Procedures

BD® CompBeads can be used as surrogates to assess fluorescence spillover (compensation).  When fluorochrome conjugated antibodies are bound to BD® CompBeads, they have spectral properties very similar to cells.   However, for some fluorochromes there can be small differences in spectral emissions compared to cells, resulting in spillover values that differ when compared to biological controls.  It is strongly recommended that when using a reagent for the first time, users compare the spillover on cell and BD® CompBeads to ensure that BD® CompBeads are appropriate for your specific cellular application.

Product Notices

  1. Please refer to www.bdbiosciences.com/us/s/resources for technical protocols.
  2. Caution: Sodium azide yields highly toxic hydrazoic acid under acidic conditions. Dilute azide compounds in running water before discarding to avoid accumulation of potentially explosive deposits in plumbing.
  3. Since applications vary, each investigator should titrate the reagent to obtain optimal results.
  4. An isotype control should be used at the same concentration as the antibody of interest.
  5. For fluorochrome spectra and suitable instrument settings, please refer to our Multicolor Flow Cytometry web page at www.bdbiosciences.com/colors.
  6. Please refer to http://regdocs.bd.com to access safety data sheets (SDS).
567916 Rev. 1
Antibody Details
Down Arrow Up Arrow
293C3

The 293C3 monoclonal antibody specifically recognizes CD133 which is also known as Prominin-like protein 1 (PROML1), Prominin-1 (PROM1), hProminin, Hematopoietic stem cell antigen, Macular dystrophy retinal 2 (MCDR2), Stargardt disease 4 autosomal dominant (STGD4), or AC133 antigen. CD133 is an ~120 kDa five-transmembrane, glycoprotein that is encoded by PROM1 (Prominin 1) which belongs to the Prominin gene family. This single-chain, pentaspan transmembrane glycoprotein is comprised of an extracellular N-terminus with two short intracellular sequences and two long extracellular loops followed by an intracellular C-terminus. CD133 is expressed on some cells found in different tissues including the bone marrow, cord and peripheral blood, placenta, liver, pancreas, kidney, lung, retina, brain and heart. It is expressed on a variety of cell types including hematopoietic stem cells and progenitor cells, neural stem cells, developing epithelial cells, precursor endothelial cells, and retinal cells. CD133 is expressed on some cancer cells found in leukemias, melanoma and retinoblastoma. It may serve as a cancer stem cell marker in a number of brain tumors, melanoma, colon cancer, hepatocellular carcinoma, pancreatic adenocarcinoma, and prostate cancer. A mutation in PROM1 has been associated with a form of human retinal degeneration. The 293C3 antibody recognizes a different epitope than the human CD133-specific W6B3C1 antibody.

567916 Rev. 1
Format Details
Down Arrow Up Arrow
PE
R-Phycoerythrin (PE), is part of the BD family of Phycobiliprotein dyes. This fluorochrome is a multimeric fluorescent phycobiliprotein with excitation maximum (Ex Max) of 496 nm and 566 nm and an emission maximum (Em Max) at 576 nm. PE is designed to be excited by the Blue (488 nm), Green (532 nm) and Yellow-Green (561 nm) lasers and detected using an optical filter centered near 575 nm (e.g., a 575/26-nm bandpass filter). As PE is excited by multiple lasers, this can result in cross-laser excitation and fluorescence spillover on instruments with various combinations of Blue, Green, and Yellow-Green lasers. Please ensure that your instrument’s configurations (lasers and optical filters) are appropriate for this dye.
altImg
PE
Yellow-Green 488 nm, 532 nm, 561 nm
496 nm, 566 nm
576 nm
567916 Rev.1
Citations & References
Down Arrow Up Arrow
View product citations for antibody "567916" on CiteAb

Development References (5)

  1. Bühring HK, Marzer A, Lammers R, Wissinger B. CD133 cluster report. In: Mason D. David Mason .. et al., ed. Leucocyte typing VII : white cell differentiation antigens : proceedings of the Seventh International Workshop and Conference held in Harrogate, United Kingdom. Oxford: Oxford University Press; 2002:622-623.
  2. Koerner SP, André MC, Leibold JS, et al. An Fc-optimized CD133 antibody for induction of NK cell reactivity against myeloid leukemia.. Leukemia. 2017; 31(2):459-469. (Clone-specific: Blocking, Flow cytometry). View Reference
  3. Lammers R, Giesert C, Grünebach F, Marxer A, Vogel W, Bühring HJ. Monoclonal antibody 9C4 recognizes epithelial cellular adhesion molecule, a cell surface antigen expressed in early steps of erythropoiesis.. Exp Hematol. 2002; 30(6):537-45. (Immunogen: Flow cytometry). View Reference
  4. Maw MA, Corbeil D, Koch J, et al. A frameshift mutation in prominin (mouse)-like 1 causes human retinal degeneration.. Hum Mol Genet. 2000; 9(1):27-34. (Biology). View Reference
  5. Miraglia SJ, Buck D. CD133 (AC133). In: Mason D. David Mason .. et al., ed. Leucocyte typing VII : white cell differentiation antigens : proceedings of the Seventh International Workshop and Conference held in Harrogate, United Kingdom. Oxford: Oxford University Press; 2002:870-872.
View All (5) View Less
567916 Rev. 1
